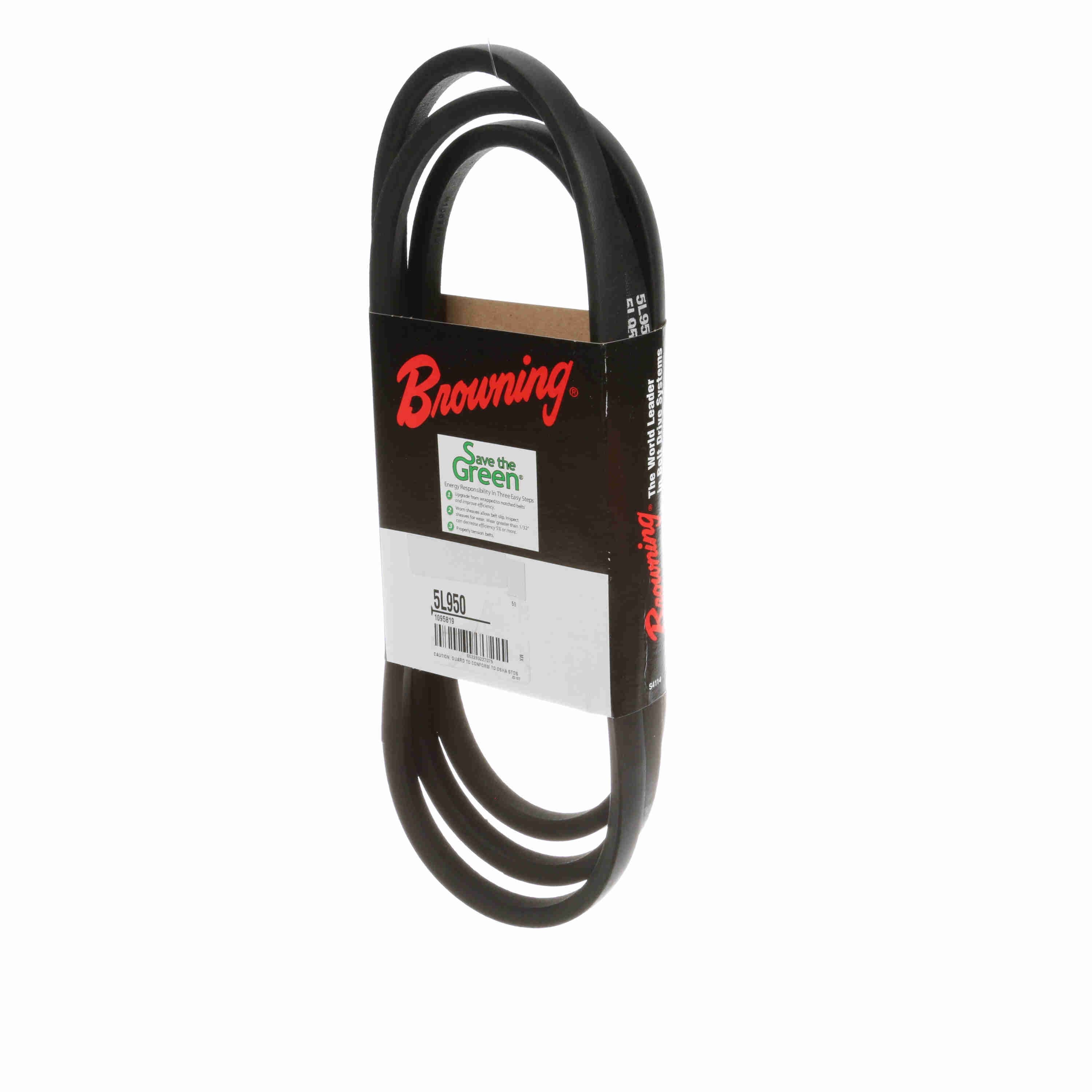

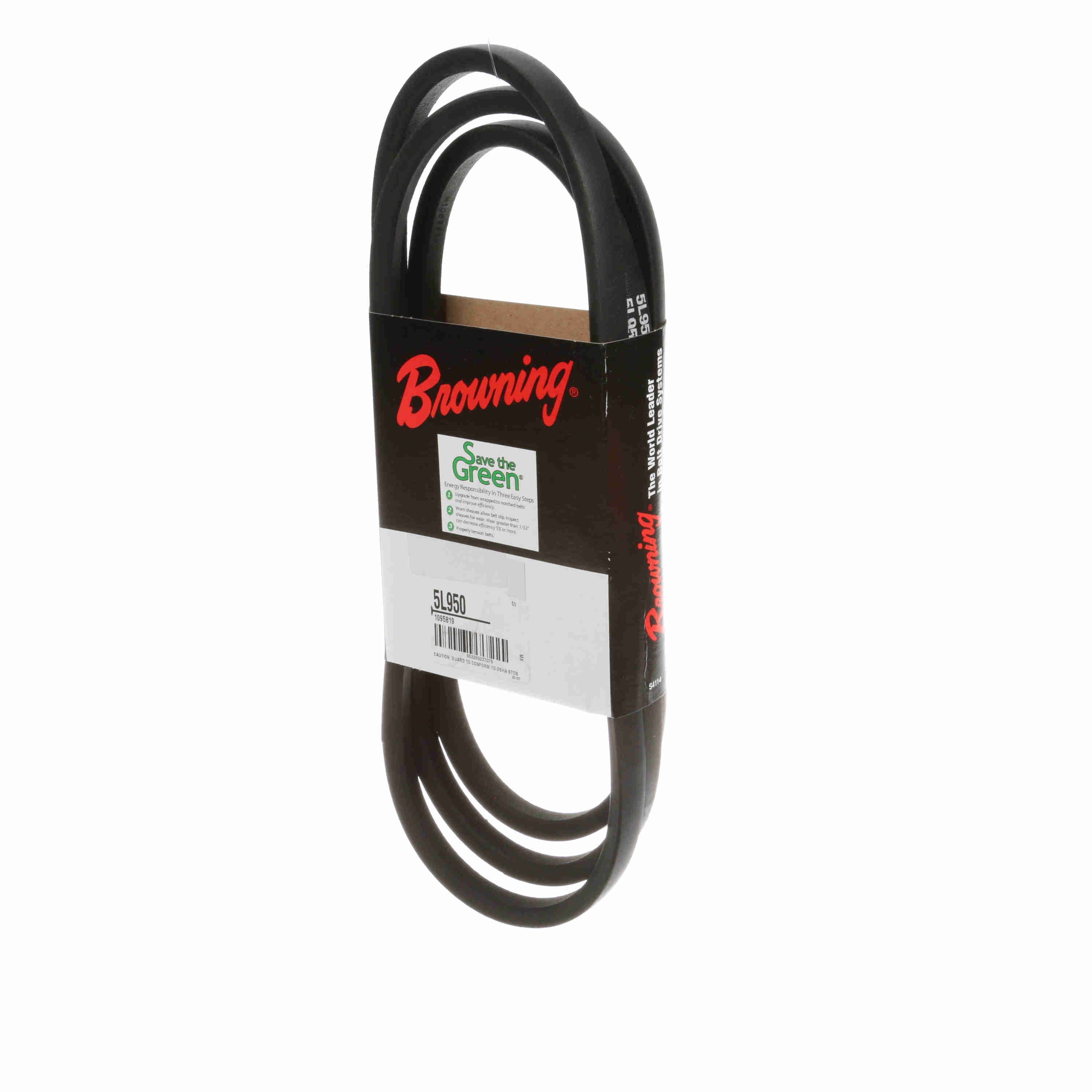

Browning 1095819 5l950 v-belt 95 in outside length 5l section size

Product Description

The Browning 1095819 FHP V-Belt is constructed from Neoprene and Rubber with Cotton reinforcement. This 5L950 V-belt features a 95-inch outside length, a 5L cross-section, a 5/8-inch belt width, and a 3/8-inch thickness. Designed for imperial systems, it operates efficiently in fractional horsepower applications at temperatures up to 140°F, ensuring reliable power transmission.

• Durable Neoprene and Rubber construction with Cotton reinforcement.
• Designed for FHP (Fractional Horsepower) applications with a 5L cross-section.
• Features a 95-inch outside length and operates up to 140°F.

Product Highlights

FHP V-belt with Neoprene/Rubber construction, cotton reinforcement, 95-inch length, and 5L section for imperial systems.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095819
• Country of Origin: US

Technical Specifications

• Product Type: FHP V-Belt
• Belt Width: 5/8"
• Section: 5L
• Material: Neoprene
• Outer Material: Rubber
• Number of Bands: 1
• Number of Ribs: 1
• Operating Temperature: 140°F
• Outside Length: 95"
• Reinforced Material: Cotton
• System of Measurement: Imperial
• Tensile Material: Cotton
• Thickness: 3/8"
• Top Width: 21/32"
• Model Number: 1095819
• Brand: Browning
• Cogged: No
• Depth (per rib): 3/8"
• Pitch Length: 93.8
• Top Width (per rib): 21/32"
