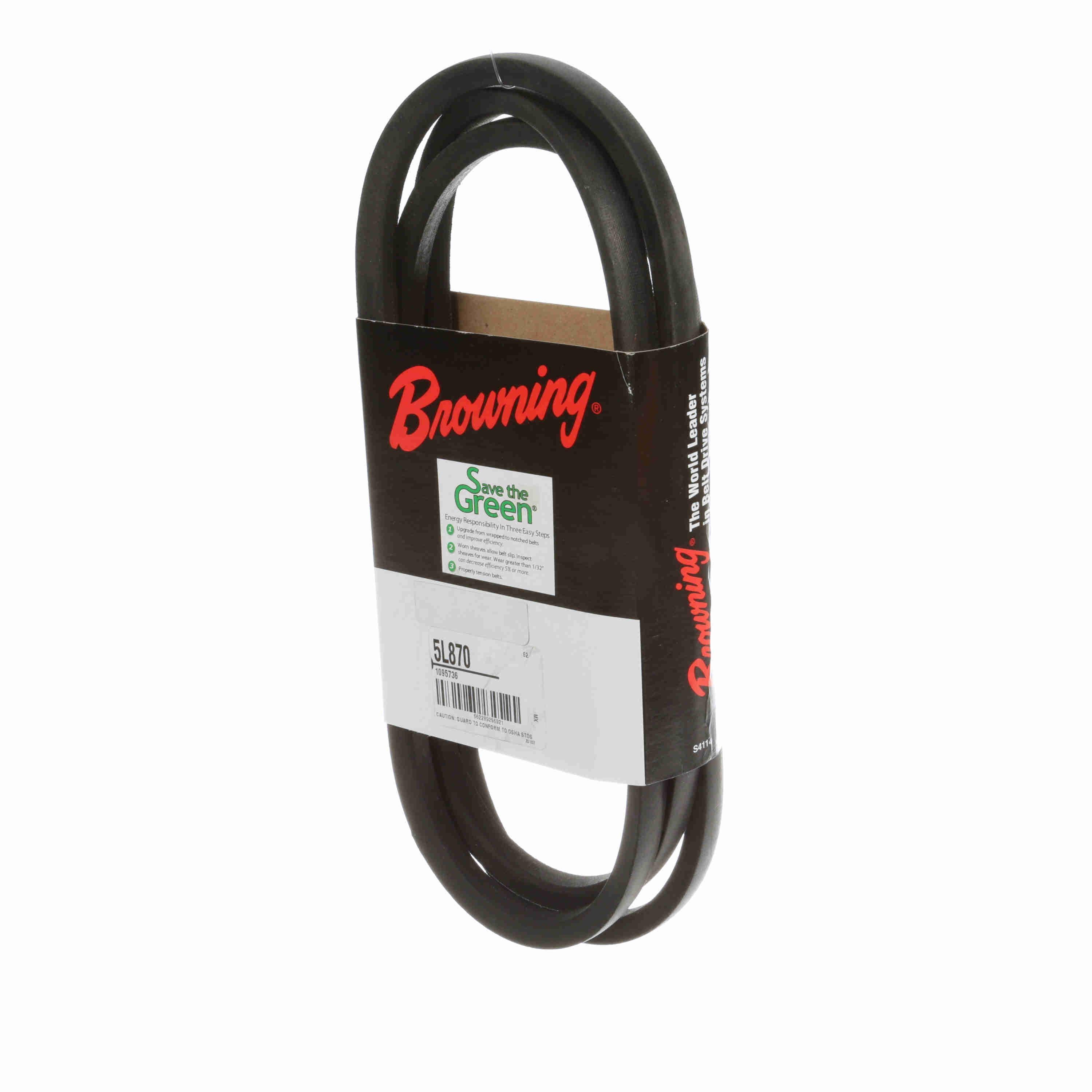

Browning 1095736 5L870 V-belt Rubber

Product Description

The BROWNING 1095736 is a 5L870 classical V-belt constructed from rubber, designed for power transmission in belt-driven mechanical systems. This belt transfers rotational energy between a drive and driven sheave, making it a standard component in HVAC blower assemblies, fan drives, pump drives, and general industrial equipment. The 5L designation indicates a fractional horsepower to standard-duty cross section, and the 870 suffix reflects the belt's outside circumference in tenths of an inch. Licensed HVAC technicians, mechanical contractors, and equipment service professionals typically source and install this belt during scheduled maintenance or unplanned drive-system repairs.

This V-belt is suited for use in residential and light commercial HVAC systems, including air handlers, rooftop units, and belt-driven supply and exhaust fans. It is also commonly found in agricultural, industrial, and commercial pump applications where a 5L-section sheave groove is present. Installers should verify sheave groove compatibility and belt tension requirements before installation to ensure proper drive efficiency and belt service life.

Key Features

• 5L870 designation confirms cross-section profile and outside circumference for straightforward replacement sourcing
• Rubber construction provides flexibility, heat resistance, and durability in belt-drive applications
• Manufactured in the United States
• Lightweight at approximately 0.73 pounds, simplifying handling and storage in service vehicles

Compatibility

Designed as an OEM-style replacement for equipment using a 5L-section V-belt groove sheave with an 870 outside circumference designation. Verify sheave groove profile and center distance before installation.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out all electrical power to the unit before removing the belt guard or accessing the drive assembly. Never force a belt onto a sheave using a screwdriver or pry bar, as this can damage the belt's cord structure. After installation, check belt tension and sheave alignment per the equipment manufacturer's service documentation.

Technical Specifications

• Belt Section: 5L
• Outside Circumference Designation: 870 (87.0 inches nominal)
• Material: Rubber
• Height: 0.38 inches
• Width: 1.0 inches
• Weight: 0.73 pounds
• Country of Origin: United States

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095736
