Browning 1095637 5L770 Rubber FHP Belt 77 inch Outside Length 5L Section Size

Product Description

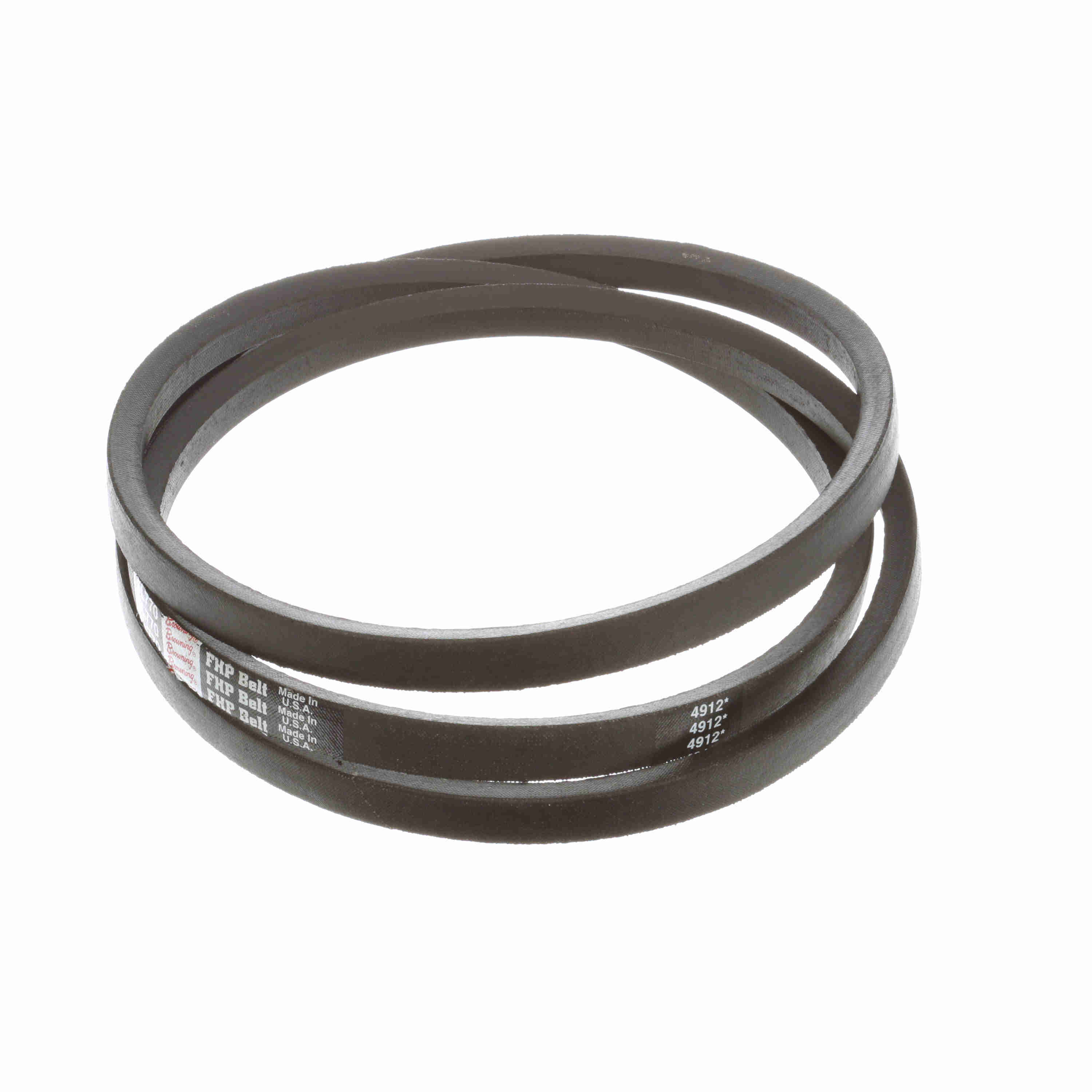

The BROWNING 1095637 FHP V-Belt, cross-referenced as 5L770, features a 77-inch outside length and a 5L section size. This non-cogged belt is constructed from Neoprene and Rubber, with cotton reinforcement, and operates at temperatures up to 140°F. It adheres to an imperial system of measurement, suitable for various power transmission applications.

• FHP V-Belt with 77-inch outside length and 5L section size.
• Constructed from Neoprene and Rubber with cotton reinforcement.
• Non-cogged design, operating up to 140°F.

Product Highlights

Durable FHP V-Belt, 77-inch length, 5L section, Neoprene and Rubber construction, non-cogged design for power transmission.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095637
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 5L770
• Outside Length: 77 inch
• Belt Style: L
• Belt Thickness: 4/25 inch
• Belt Type: Standard V-Belt
• Belt Width: 9/32 inch
• Section Size: 5L
• Material: Neoprene
• Number of Bands: 1
• Number of Ribs: 1
• Operating Temperature: 140°F
• Outer Material: Rubber
• Reinforced Material: Cotton
• System of Measurement: Imperial
• Tensile Material: Cotton
• Design Type: Non-Cogged
• Family Series: Browning Belts
• Belt Pinch: 75.8
