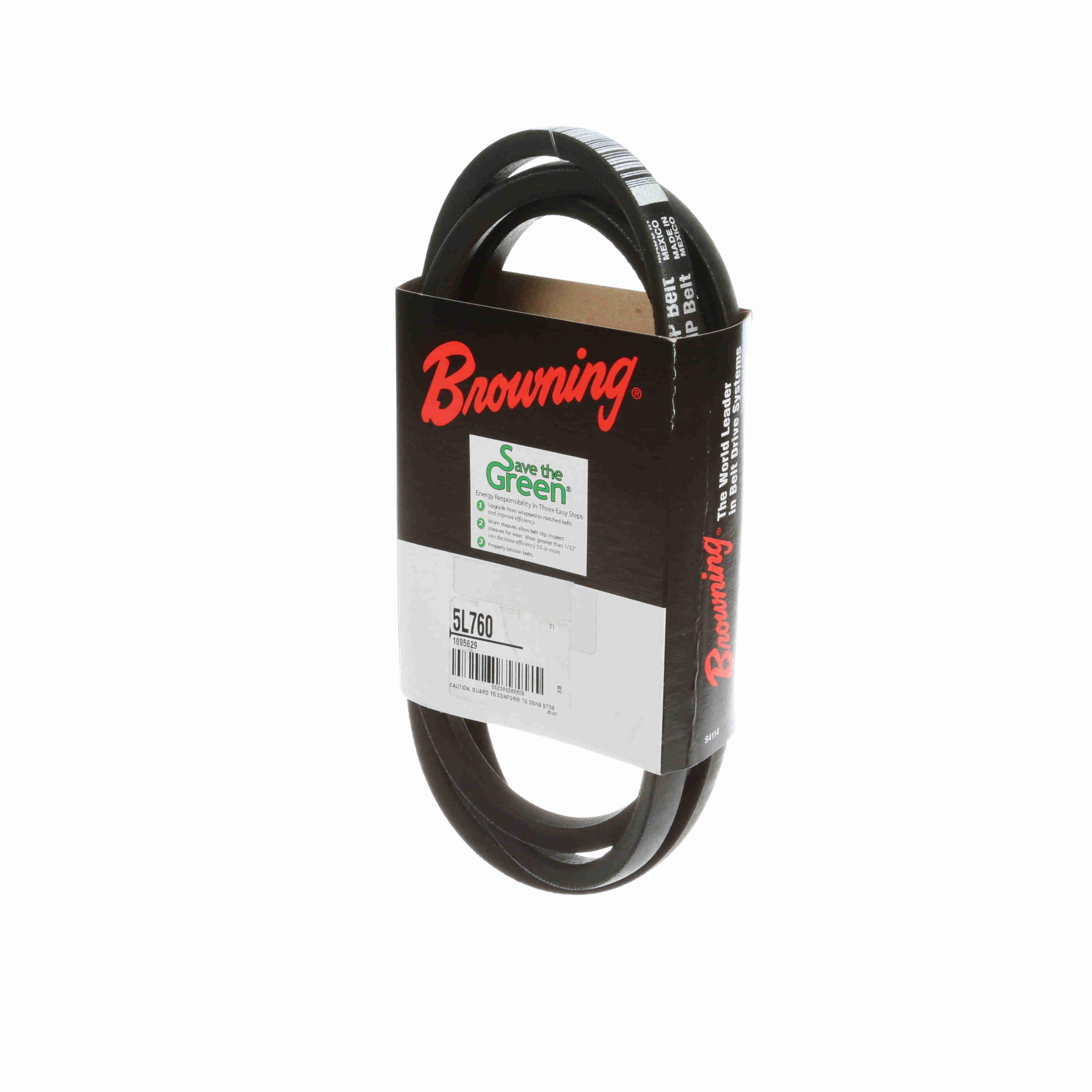

Browning 1095629 Fhp Belt 5L 76in Neoprene Non-cogged

Product Description

The BROWNING 1095629 is a non-cogged fractional horsepower (FHP) V-belt in the 5L section, built for light-duty mechanical drive applications common in HVAC, refrigeration, and general equipment service. Measuring 76 inches in outside length, 21/32 inch top width, and 3/8 inch thickness, this belt is constructed from neoprene with cotton reinforcement for durability and resistance to heat and oil exposure. The non-cogged design delivers a smooth power transfer profile suited for smaller horsepower loads. HVAC technicians and mechanical service professionals install this belt as a direct replacement in blower and fan drive assemblies.

This belt is designed for use in fractional horsepower drive systems where a 5L section V-belt is specified. Typical applications include residential and light commercial HVAC blower assemblies, condenser fan drives, and small equipment drive systems that require a 76-inch outside circumference belt. The neoprene construction holds up in environments with moderate heat exposure, rated to 140 degrees F, making it appropriate for equipment rooms and rooftop unit installations where ambient temperatures can run elevated.

Key Features

• 5L section profile with 21/32 inch top width and 3/8 inch thickness for standard FHP drive sheaves
• 76 inch outside length for correct fitment in specified drive assemblies
• Non-cogged construction for smooth, low-vibration power transfer
• Neoprene compound with cotton reinforcement for heat and oil resistance
• Rated to 140 degrees F continuous operating temperature
• Black finish; single-rib design for single-groove sheave applications

Compatibility

Designed as an OEM-style replacement for fractional horsepower drive systems requiring a 5L section V-belt with a 76-inch outside length.

Installation Notes

Belt replacement on blower and fan drives should be performed by a qualified HVAC technician or mechanical service professional. Always de-energize and lock out the equipment at the disconnect before removing the belt guard or accessing the drive assembly. Adjust sheave center distance to allow belt seating without forcing, then re-tension to the drive manufacturer's specification before restoring power. Inspect sheave grooves for wear or misalignment before installing a new belt.

Technical Specifications

• Belt Section: 5L
• Outside Length: 76 inches
• Top Width: 21/32 inch
• Thickness: 3/8 inch
• Number of Ribs: 1
• Max Operating Temperature: 140 degrees F
• Belt Type: Non-Cogged
• Material: Neoprene, Cotton Reinforced
• Color: Black

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095629
