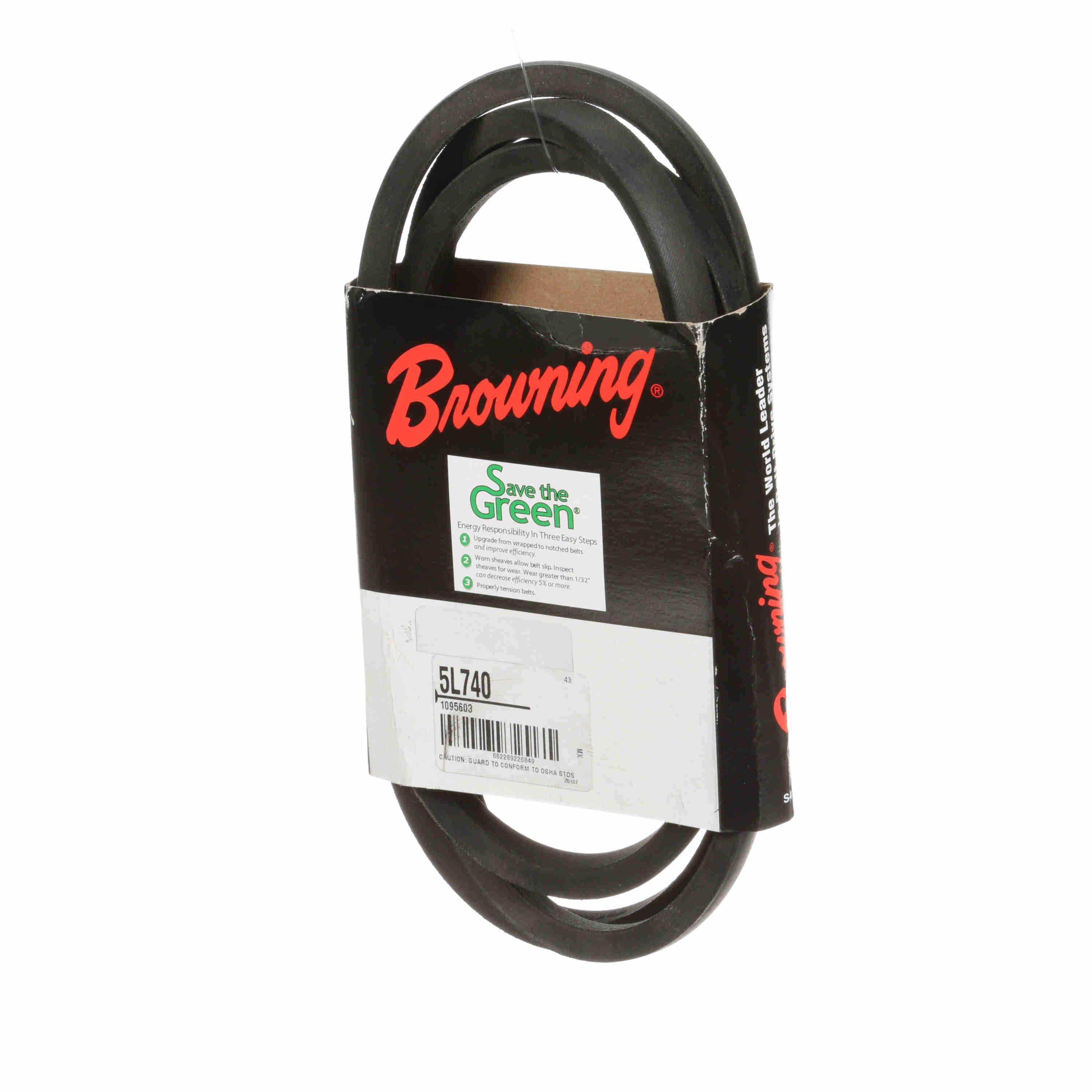

Browning 1095603 V-Belt FHP 74 in Outside Length 5L Section Size 5L740

Product Description

The Browning 1095603 V-Belt is an FHP (Fractional Horsepower) non-cogged belt with a 74 inch outside length and a 5L section size. Constructed from Neoprene and Rubber, it features a single band and rib design. This V-belt is suitable for various FHP applications and can operate effectively in temperatures up to 140°F, providing reliable power transmission.

• FHP (Fractional Horsepower) V-Belt for light-duty applications.
• 74 inch outside length and 5L section size for specific fit.
• Constructed from Neoprene and Rubber with a single band and rib design.

Product Highlights

Designed for FHP applications, this non-cogged V-belt offers reliable power transmission with a 74 inch outside length and 5L section, operating up to 140°F.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095603
• Country of Origin: US

Technical Specifications

• Type: FHP Non-Cogged V-Belt
• Belt Width: 5/8"
• Cross Section: 5L
• Material: Neoprene
• Number of Bands: 1
• Number of Ribs: 1
• Operating Temperature: 140°F
• Outer Material: Rubber
• Outside Length: 74"
• System of Measurement: Imperial
• Tensile Material: Cotton
• Thickness: 3/8"
• Top Width: 21/32"
• Pitch Length: 72.8
• Band Type: Belt with Ends Joined
• Belt Series: FHP
• Standards: RMA
• Construction Type: Wrapped
• Operating Temperature (Celsius): 60°C
• Replacement MPN: 5L740
