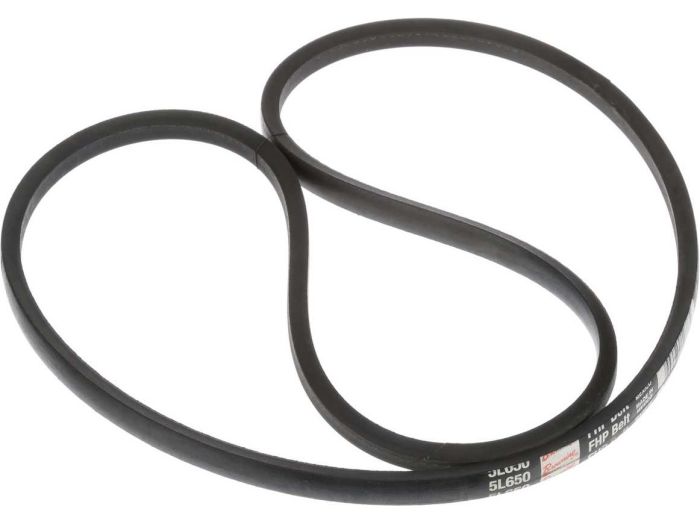

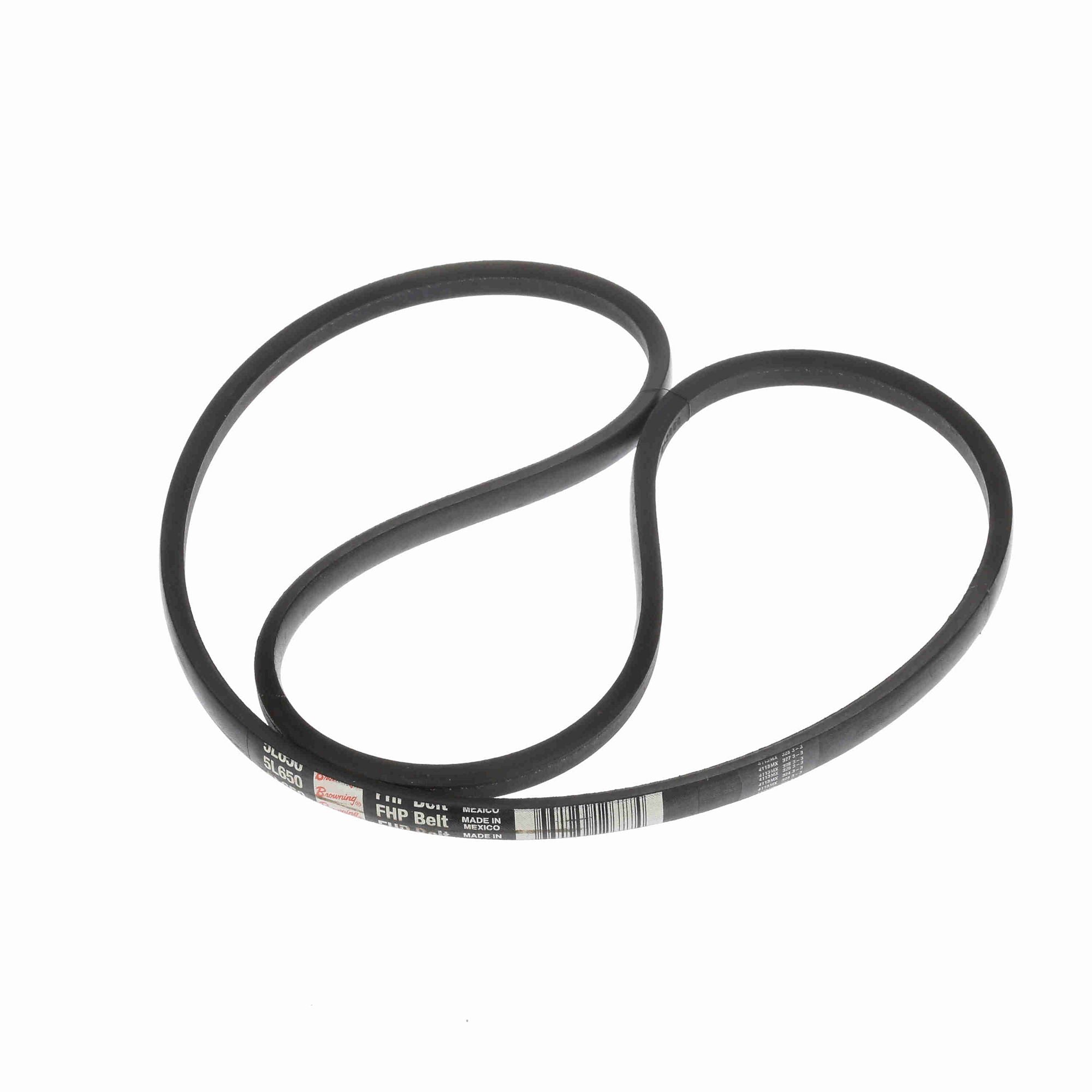

Browning 1095512 L belt section FHP belt, 63.8 pitch, 5L section, 65 inch outside length

Product Description

The BROWNING 1095512 is an L Belt Section FHP Belt designed for fractional horsepower applications. This standard V-belt features a 63.8 pitch and a 65 inch outside length, making it suitable for various industrial uses. Constructed with neoprene material, it offers durability and resistance to oil and heat. Its wrapped construction ensures smooth and quiet operation, while also being tolerant to slipping and misalignment.

• Wrapped FHP belts are more tolerant to slipping and misalignment than raw edge belts.
• Formulated for maximum flexibility for use in small diameter sheaves.
• Oil and heat resistant, with static conducting properties.

Product Highlights

This FHP belt combines durability with smooth operation, designed for small sheave applications and resistant to environmental factors.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095512
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 5L650
• Outside Length: 65 in
• Section: 5L
• Thickness: 0.375 in
• Belt Type: Standard V-Belt
• Cubic Measurement: 0.0669
• Application: Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Oil, Gas, Pulp, Paper and Unit Handling Industries
• Top Width: 0.65625 in
• Ribs: 1
• Operating Temperature Fahrenheit: 140 °F
• Material: Neoprene
• Pitch Length: 63.8
• Band Type: Belt with Ends Joined
• Reinforcing Cord Material: Cotton
• Belt Series: FHP Belts
• Standards Met: RMA
• Construction Type: Wrapped
• Product Type: FHP Belt
• Cross Section: 0.65625
• Operating Temperature Celsius: 60 °C
• Number of Bands: 1
• Smooth/Cogged: Smooth
