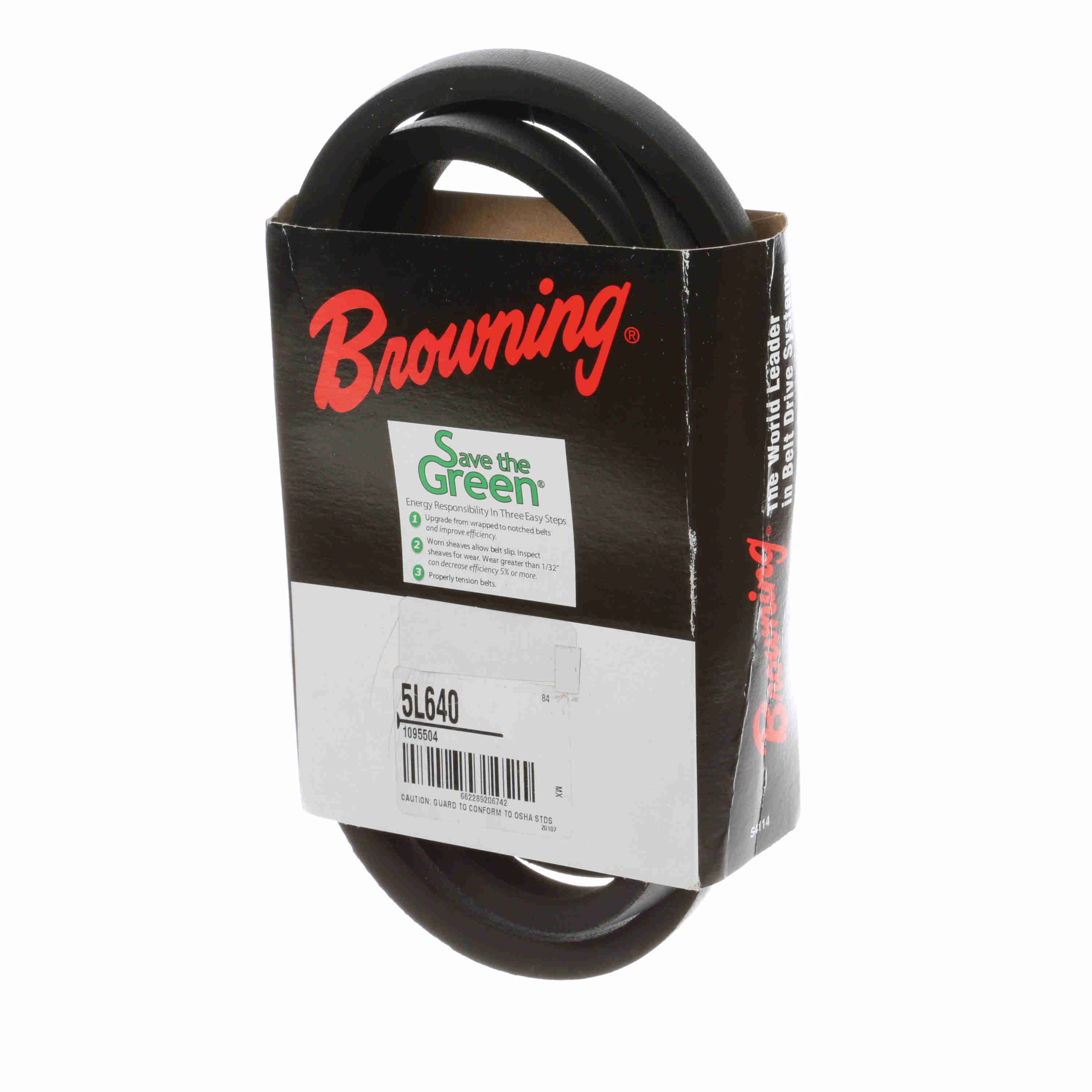

Browning 1095504 L belt section FHP 62.8 pitch 64 inch

Product Description

The Browning 1095504 is a 5L section fractional-horsepower V-belt with a 64-inch outside length. This wrapped neoprene belt features polyester tensile cords, designed for reliable power transmission in light-duty industrial and agricultural drives. It has a 21/32-inch top width and a 3/8-inch depth, making it suitable for various FHP applications.

• L Belt Section with 62.8 pitch
• Designed for fractional-horsepower (FHP) applications
• Wrapped construction for smooth, quiet operation and tolerance to slipping

Product Highlights

Fractional-horsepower V-belt for light-duty industrial and agricultural power transmission.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095504
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 5L640
• Belt Length: 64 inches
• Belt Style: L
• Belt Thickness: 4/25 inches
• Belt Type: Standard V-Belt
• Belt Width: 9/32 inches
• Cubic Measurement: 0.0878
• Belt Section: 5L
• Material: Neoprene
• Number of Ribs: 1
• Operating Temperature: 140°F
• Belt Depth: 3/8 inches
• Belt Top Width: 21/32 inches
• Cogged Type: Non-Cogged
• Pitch Length: 62.8
• Product Type: FHP Belt
