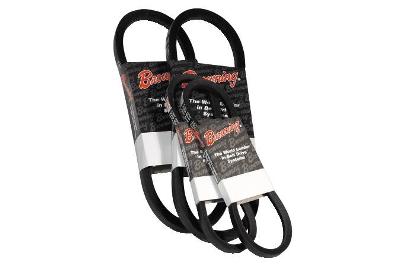

Browning 1095470 Fhp Wrapped V-belt 5L 61 Inches

Product Description

The BROWNING 1095470 is a fractional horsepower (FHP) wrapped V-belt in the 5L series, designed for light-duty power transmission in HVAC, appliance, and general mechanical drive applications. With a wrapped construction, the belt delivers smooth, quiet operation across smaller diameter sheaves where flexibility is critical. At 61 inches in length and 21/32 inches in top width, it fits standard 5L-profile sheaves and is formulated to resist oil and heat in demanding service environments. The static-conducting construction helps prevent static buildup during operation. HVAC technicians, refrigeration mechanics, and general maintenance professionals install this belt type on fan drives, blowers, and motor-driven assemblies.

This belt is suited for residential and light commercial applications where FHP drives are common, including furnace blowers, air handlers, condenser fan assemblies, and small appliance drives. The 5L series profile matches the industry standard designation 5L610, making cross-referencing straightforward when sourcing a direct replacement. It is appropriate for any drive system requiring a wrapped, oil-resistant belt in this size range.

Key Features

• Wrapped construction for smooth, quiet operation on smaller diameter sheaves
• Formulated for maximum flexibility to reduce stress on sheave contact surfaces
• Oil and heat resistant compound extends service life in HVAC and mechanical environments
• Static-conducting design prevents static charge buildup during belt operation
• Matches industry standard designation 5L610 for easy cross-referencing

Compatibility

Designed as an OEM-style replacement for FHP drive systems using 5L series wrapped V-belts; industry cross-reference part number is 5L610.

Installation Notes

Belt replacement is typically performed by HVAC technicians or general maintenance mechanics. Always disconnect and lock out power to the equipment before removing the old belt or adjusting sheave positions. Use a belt tension gauge when available to set proper tension, and never force a belt over a sheave with a sharp tool, as this can damage the belt's wrapped cover. Follow the equipment manufacturer's alignment and tensioning specifications.

Technical Specifications

• Industry Part Number: 5L610
• Belt Series: 5L FHP Wrapped
• Belt Length: 61 inches
• Top Width: 21/32 inches
• Weight: 0.50 pounds

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095470
