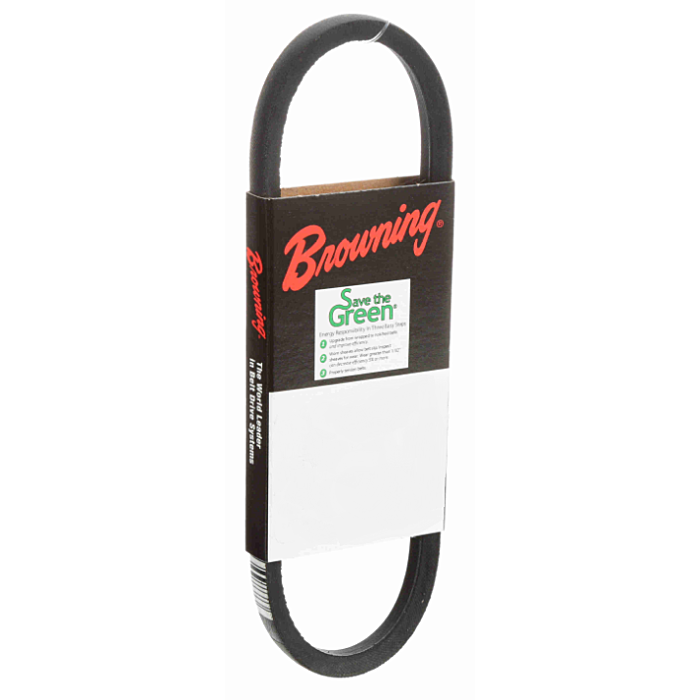

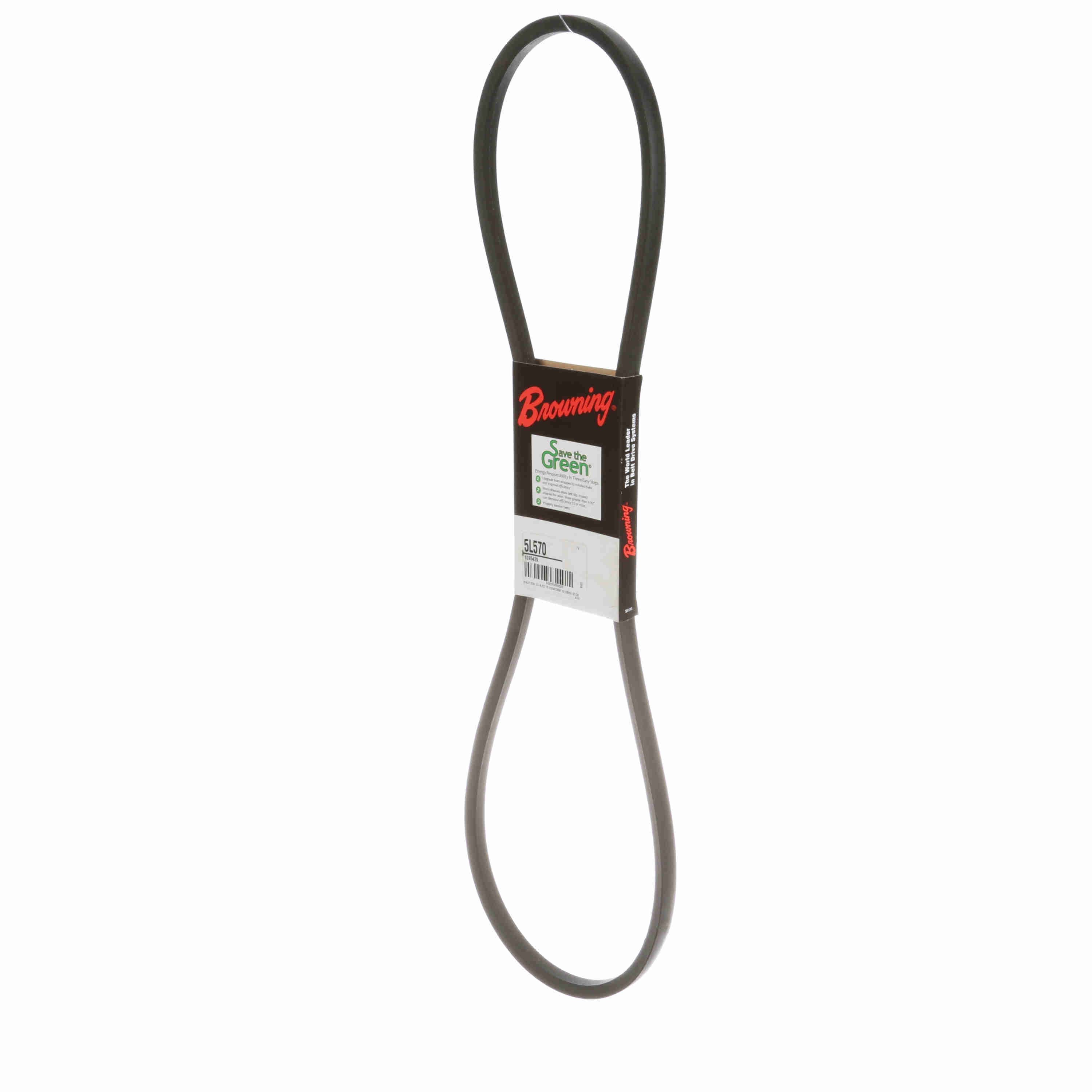

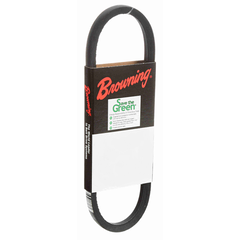

Browning 1095439 L belt section 55.8 pitch FHP belt

Product Description

The Browning 1095439 L Belt Section is a Standard V-Belt with a 55.8 pitch, designed for fractional horsepower applications. This non-cogged belt features a 5L section, a belt length of 57, and a belt thickness of 4/25 inches, making it suitable for small sheave applications. Constructed with EPDM and cotton reinforced materials, it offers oil and heat resistance, along with static conducting properties, ensuring smooth and quiet operation.

• Wrapped construction provides smooth, quiet operation.
• Formulated for maximum flexibility, suitable for smaller diameter sheaves.
• Oil and heat resistant, with static conducting properties.

Product Highlights

Designed for small sheave applications, offering tolerance to slipping and misalignment.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095439
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 5L570
• Belt Length: 57
• Belt Style: L
• Belt Thickness: 4/25"
• Belt Type: Standard V-Belt
• Belt Width: 9/32"
• UPC: 662289266623
• Country of Origin: MEX
• Number of Ribs: 1
• Section Size: 5L
• Top Width: 21/32 in
• Material: EPDM
• Type: Non-Cogged
• Temperature Range: 230 deg F
• Reinforced Material: Cotton
• Manufacturer: Regal Rexnord
• Standard/Approvals: RMA Standard
• Application: Aggregate and Cement, Agriculture, HVAC, Minerals and Mining, Oil and Gas, Pulp and Paper and Unit Handling
• System Of Measurement: Imperial
• Pitch Length: 55.8
• Construction Type: Wrapped
• Band Type: Belt with Ends Joined
• Belt Series: FHP Belts
