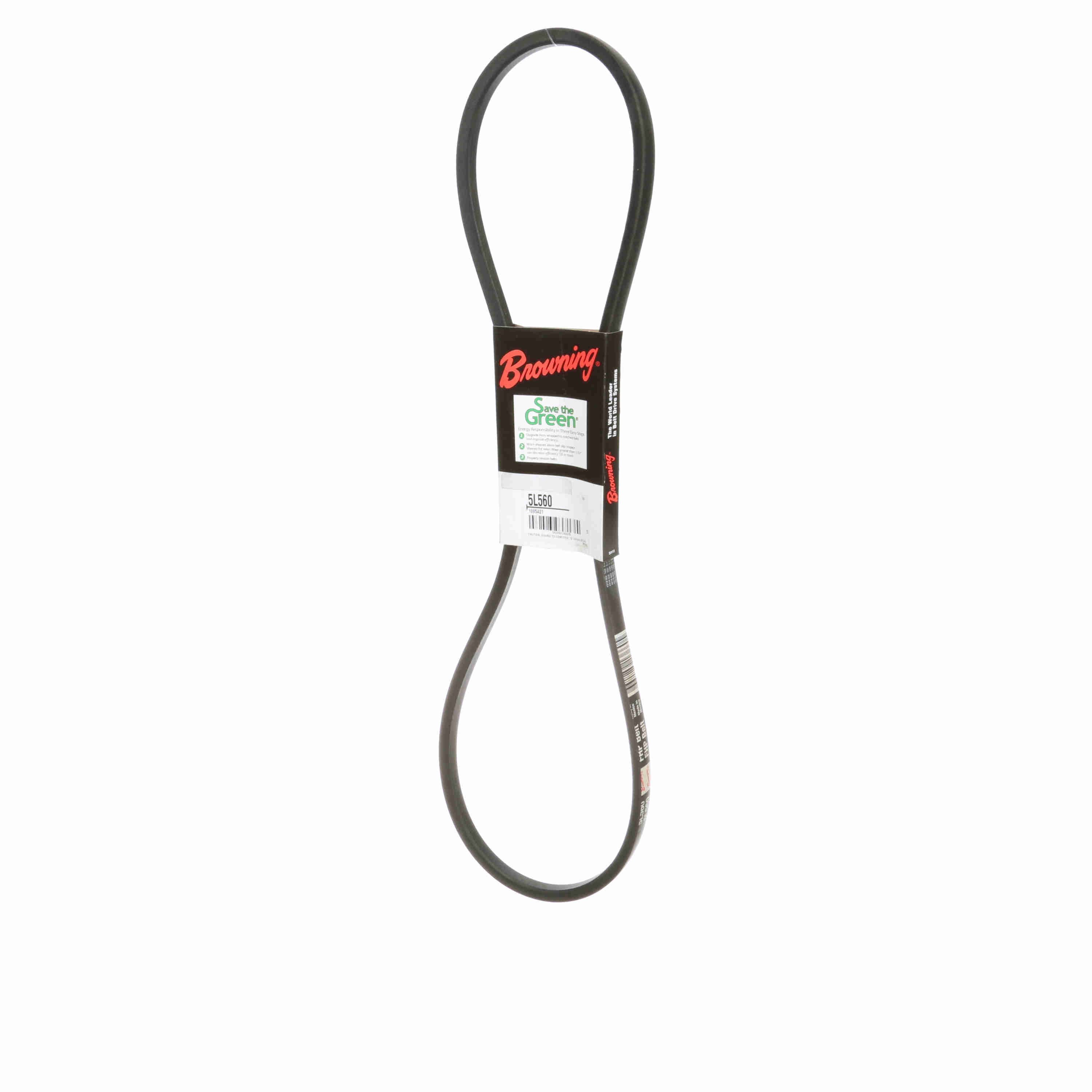

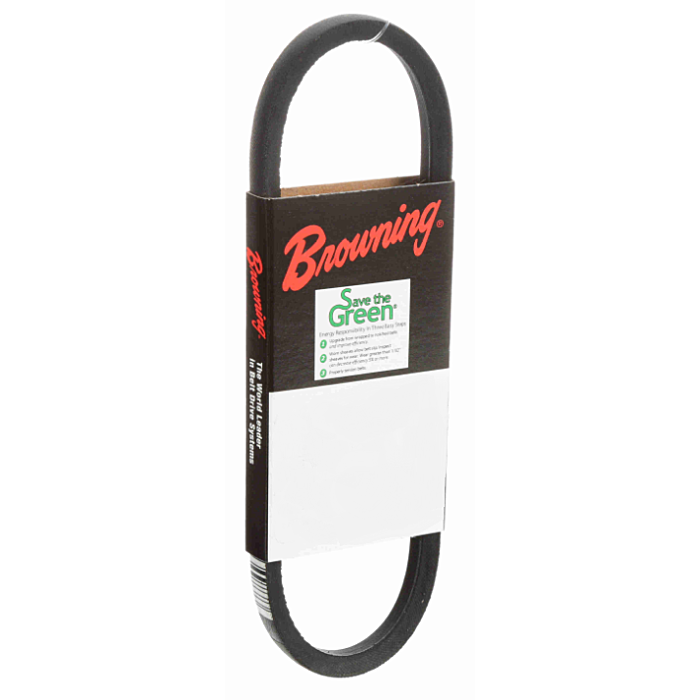

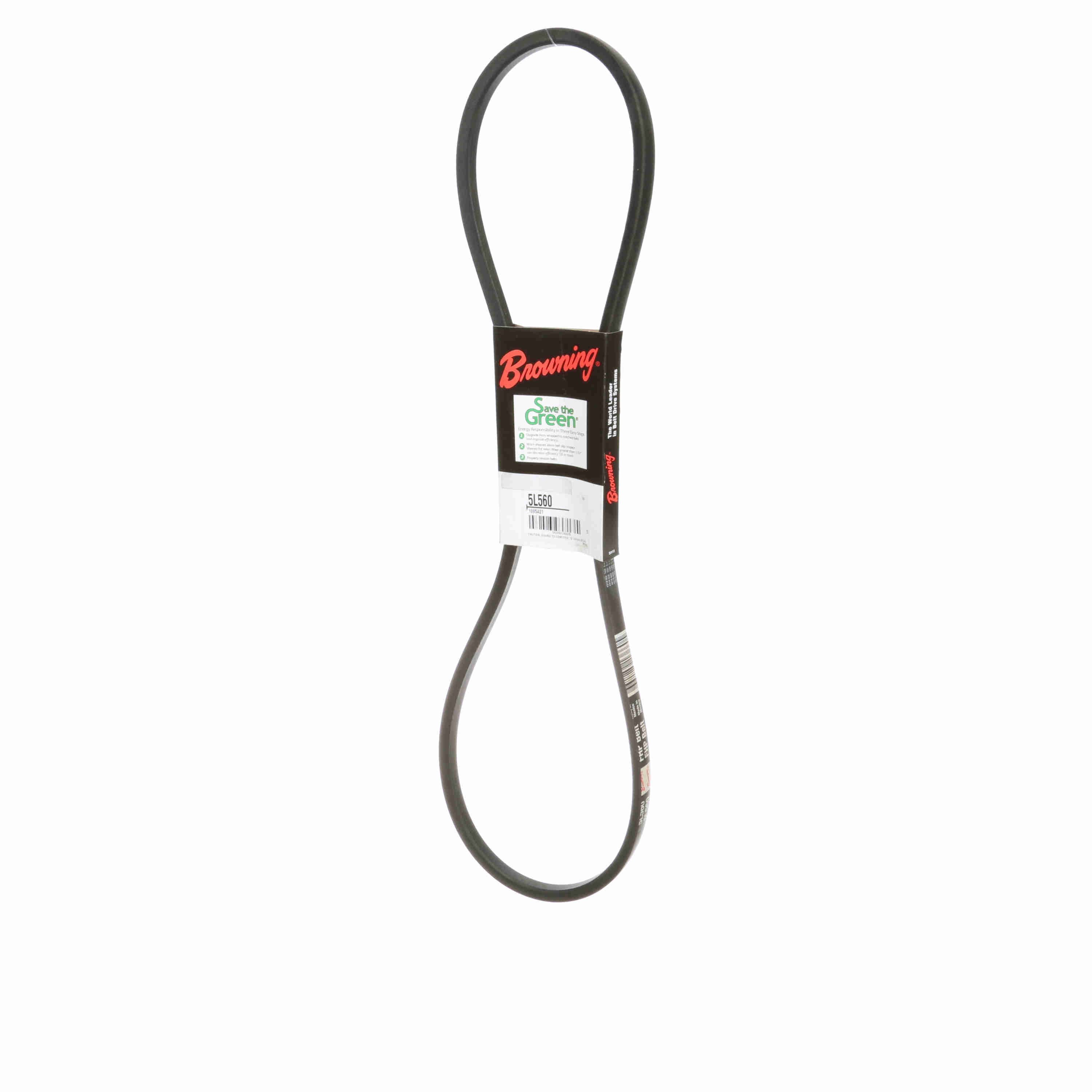

Browning 1095421 V-Belt 5L560 FHP

Product Description

The Browning 1095421 is a Standard V-Belt, specifically a 5L560 FHP Belt. This rubber V-belt features a 5L cross section and an outside length of 56 inches. It has a width of 5/8 inch and a thickness of 3/8 inch, with a top width of 21/32 inch. Designed for fractional horsepower applications, it can operate in temperatures up to 230°F and uses cotton as its tensile material.

• Wrapped construction provides smooth, quiet operation.
• Formulated for maximum flexibility with smaller diameter sheaves.
• Oil and heat resistant - static conducting.

Product Highlights

Durable FHP V-belt with wrapped construction, optimized for flexibility and resistance to oil and heat.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095421
• Country of Origin: Mexico

Technical Specifications

• Brand: Browning
• MPN: 1095421
• Product Type: FHP V-Belt
• Belt Type: Standard V-Belt
• Design Type: Non-Cogged
• Cross Section: 5L
• Belt Industry Code: 5L560
• Outside Length: 56 inches
• Belt Width: 5/8"
• Top Width: 21/32"
• Thickness: 3/8"
• Number of Bands: 1
• Number of Ribs: 1
• Operating Temperature: 230°F
• Material: Rubber
• Tensile Material: Cotton
• System Of Measurement: Imperial
• Family Series: Browning Belts
• Belt Pinch: 54.8
