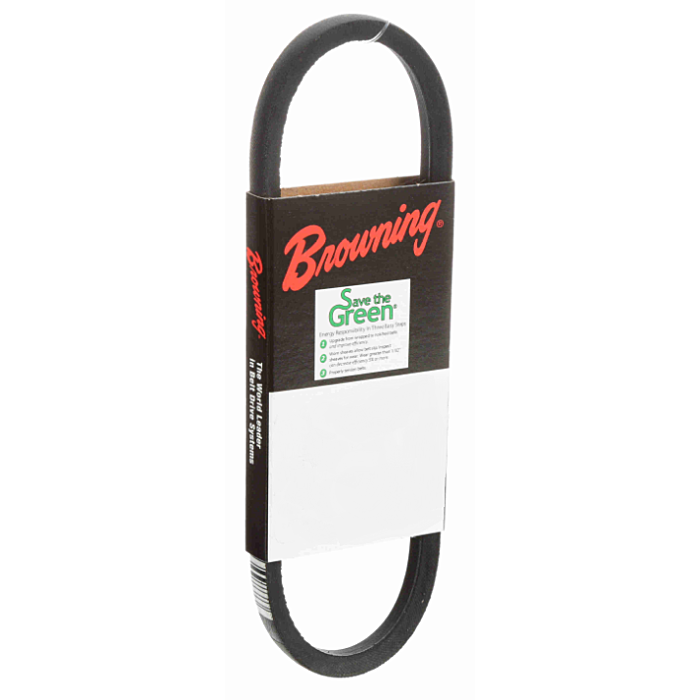

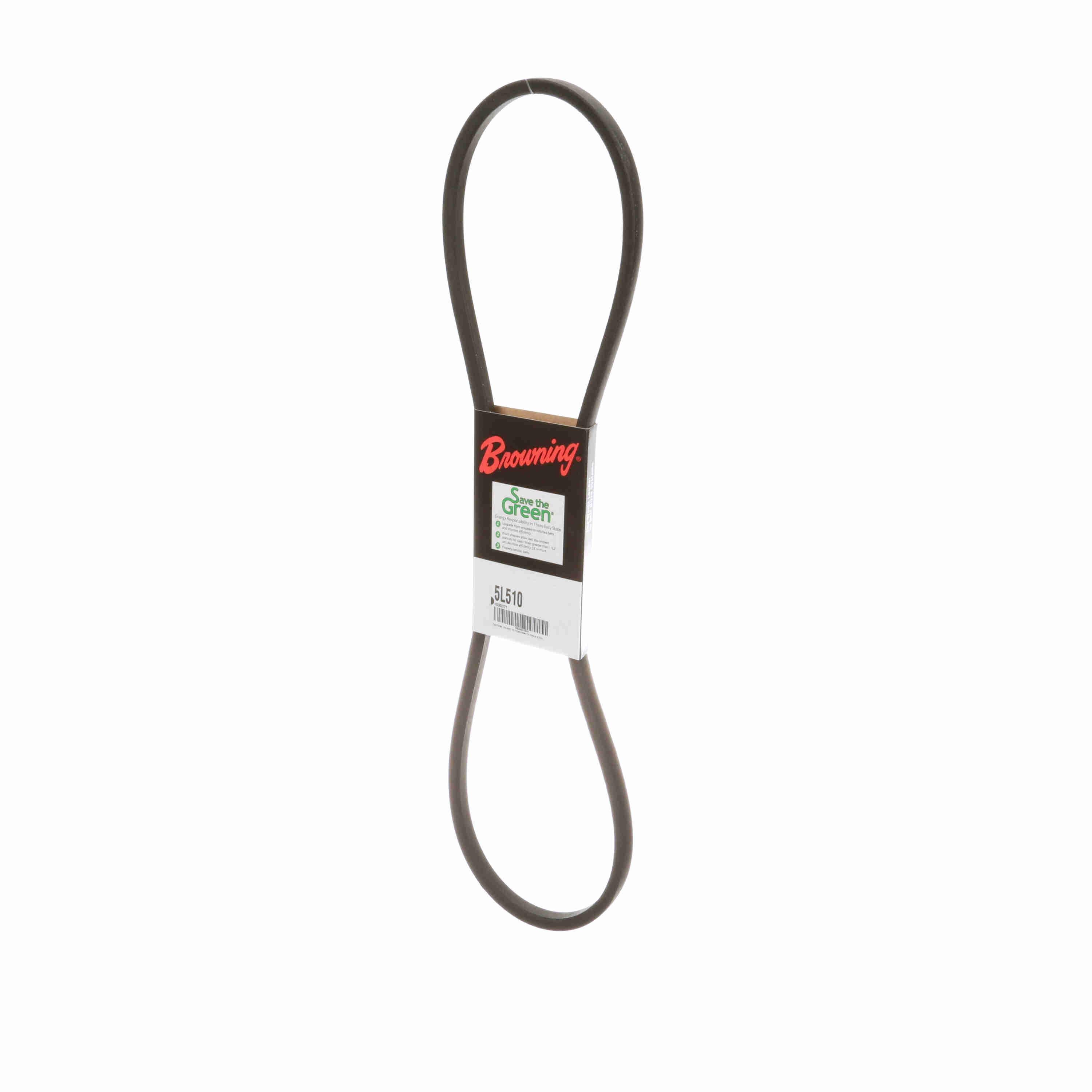

Browning 1095371 V-Belt 5L Section, 21/32 in Top, 51 in Length

Product Description

The Browning 1095371 is a Standard V-Belt, specifically a 5L Section Fractional Horsepower (FHP) belt, designed for efficient power transmission. This Neoprene belt features a 21/32 inch top width and a 51 inch outside length, with a 3/8 inch thickness. It is engineered for smooth, quiet operation in various industrial and agricultural applications, including HVAC and material handling, and is resistant to oil and heat.

• Wrapped construction provides smooth, quiet operation.
• Formulated for maximum flexibility with smaller diameter sheaves.
• Oil and heat resistant and static conducting.

Product Highlights

Combines the best features of notched and wrapped belts, designed for small sheave applications.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095371
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 3L510
• Belt Style: 5L Smooth
• Belt Type: Standard V-Belt
• Section: 5L
• Top Width: 21/32 in
• Outside Length: 51 in
• Thickness: 3/8 in
• Ribs: 1
• Operating Temperature: 140 deg F
• Material: Neoprene
• Applications: Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Oil, Gas, Pulp, Paper and Unit Handling Industries
