Browning 1095348 L belt section FHP belt 46.8 pitch 48 in outside length 5L section 21/32 top width

Product Description

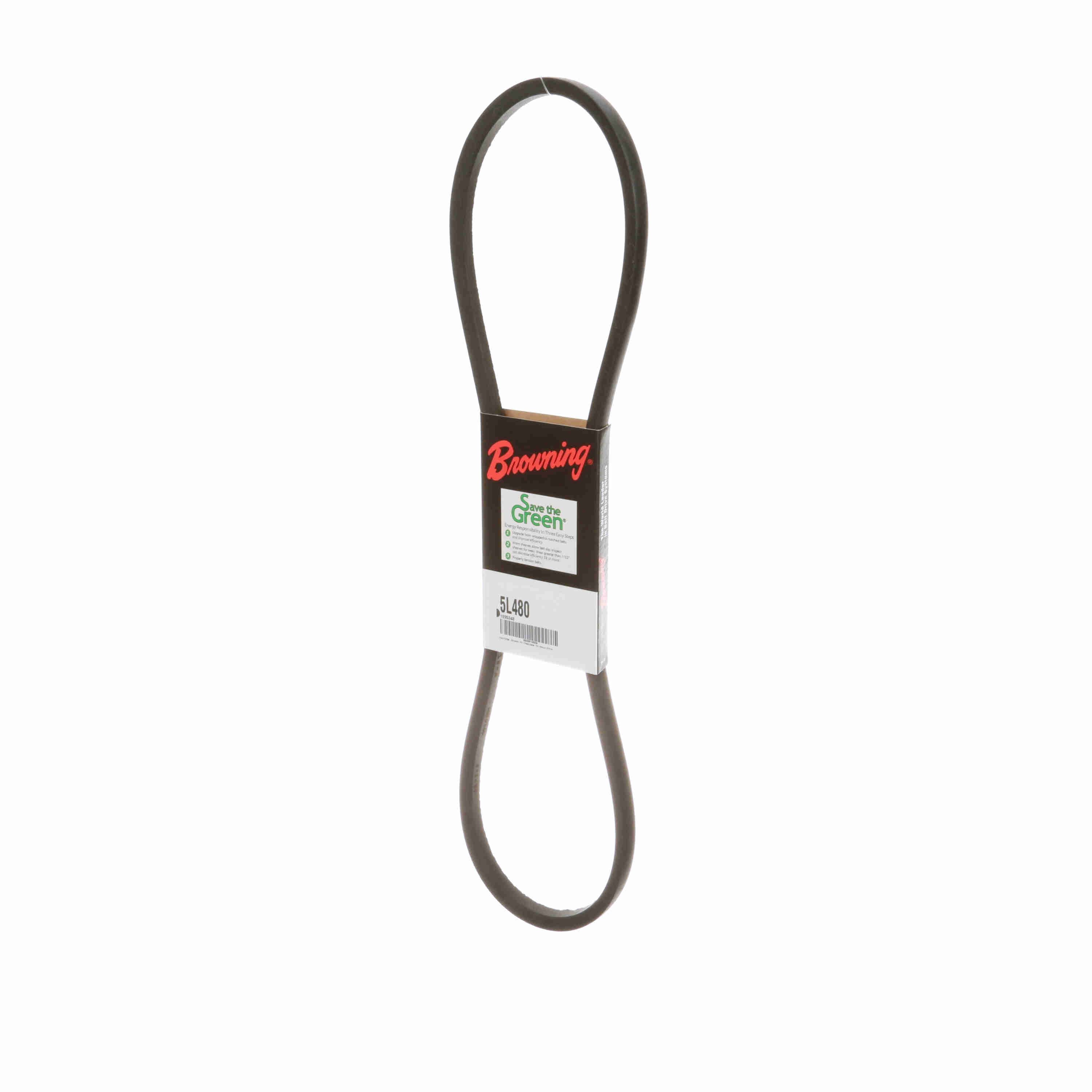

The Browning 1095348 is an L Belt Section FHP Belt with a 46.8 pitch. This standard V-belt features a 48-inch outside length, a 5L section size, and is constructed from Neoprene material. It has a 3/8-inch thickness and a 21/32-inch top width. Designed for reliable power transmission, it is suitable for various light-duty applications, including HVAC and agricultural systems.

• 48 inch outside length for broad application compatibility
• 5L section size for specific drive system requirements
• Constructed from Neoprene material for durability

Product Highlights

Wrapped construction ensures smooth, quiet operation and enhanced tolerance to slipping and misalignment. Formulated for maximum flexibility in small diameter sheaves, offering oil and heat resistance, and static conductivity.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095348
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 5L480
• Belt Style: L
• Country of Origin: MEX
• UPC: 662289166558
• Material: Neoprene
• Number of Ribs: 1
• Operating Temperature: 140°F
• Outside Length: 48"
• Thickness: 3/8"
• Top Width: 21/32"
• Belt Construction Type: Non-Cogged
• Belt Section: 5L
• Belt Type: FHP V-Belt
• Pitch Length: 46.8
