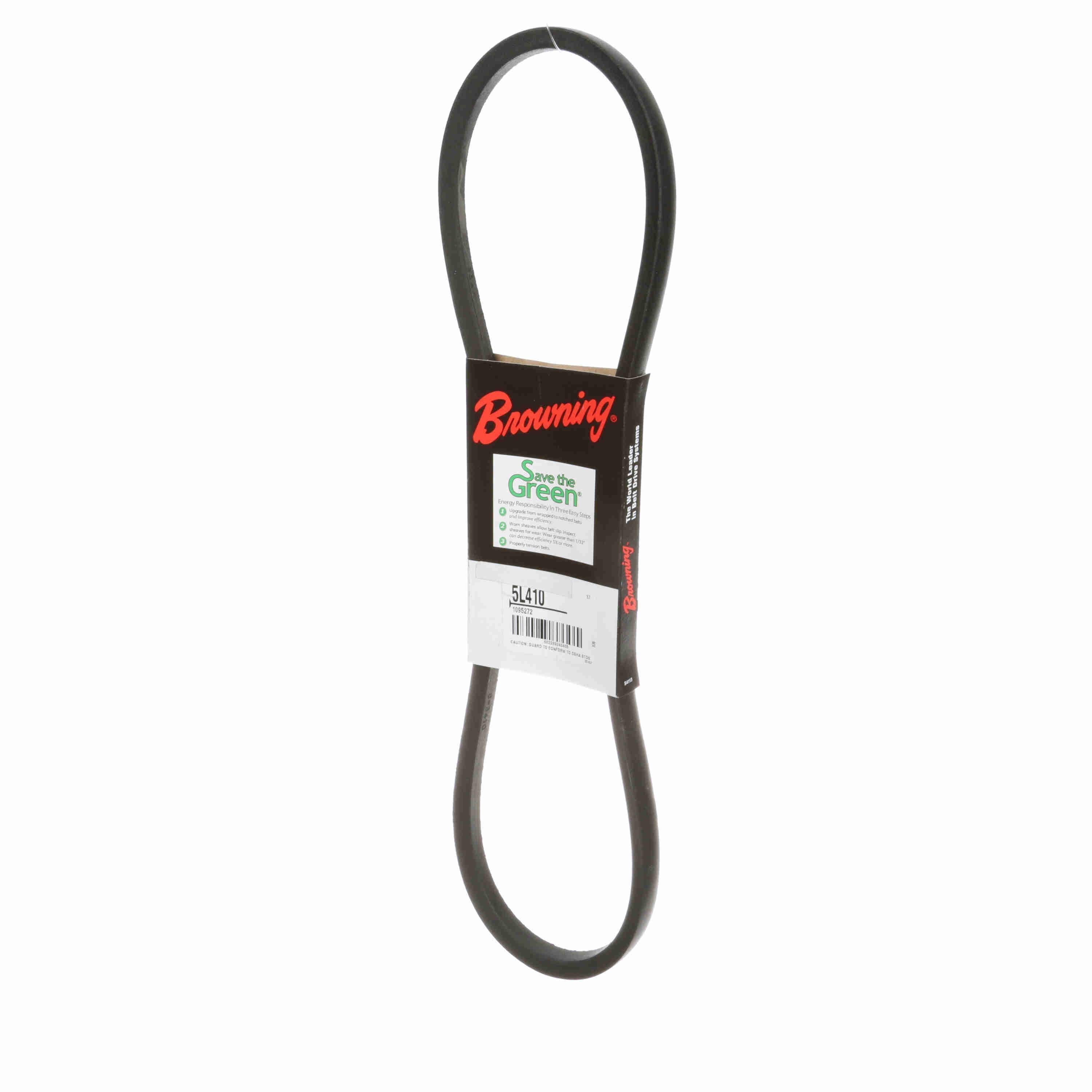

Browning 1095272 L belt section 39.8 pitch FHP belt 5L410

Product Description

The BROWNING 1095272 is an L Belt Section FHP Belt designed for smooth, quiet operation in small sheave applications. This wrapped construction belt, with a 39.8-inch pitch length and 41-inch outside length, is formulated for maximum flexibility. It offers enhanced tolerance to slipping and misalignment compared to raw edge belts, combining the best features of notched and wrapped designs for efficient power transmission.

• Wrapped construction ensures smooth and quiet operation.
• Offers increased tolerance to slipping and misalignment.
• Formulated for maximum flexibility for use in small diameter sheaves.

Product Highlights

Wrapped FHP belt for small sheave applications, providing smooth operation and high flexibility.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095272
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 5L410
• Belt Length: 41 inches
• Belt Style: L
• Belt Type: Standard V-Belt
• UPC: 662289246465
• Country of Origin: Mexico
• Prop 65 Warning: No
• Material: Neoprene
• Number of Ribs: 1
• Operating Temperature Max: 140°F
• Non-Cogged: Yes
• Reinforcing Cord Material: Cotton
• Band Type: Belt with Ends Joined
• Standards Met: RMA
• Construction Type: Wrapped
• Pitch Length: 39.8 inches
• Belt Section: 5L
• Cross Section Width: 0.65625 inches
• Color: Black
