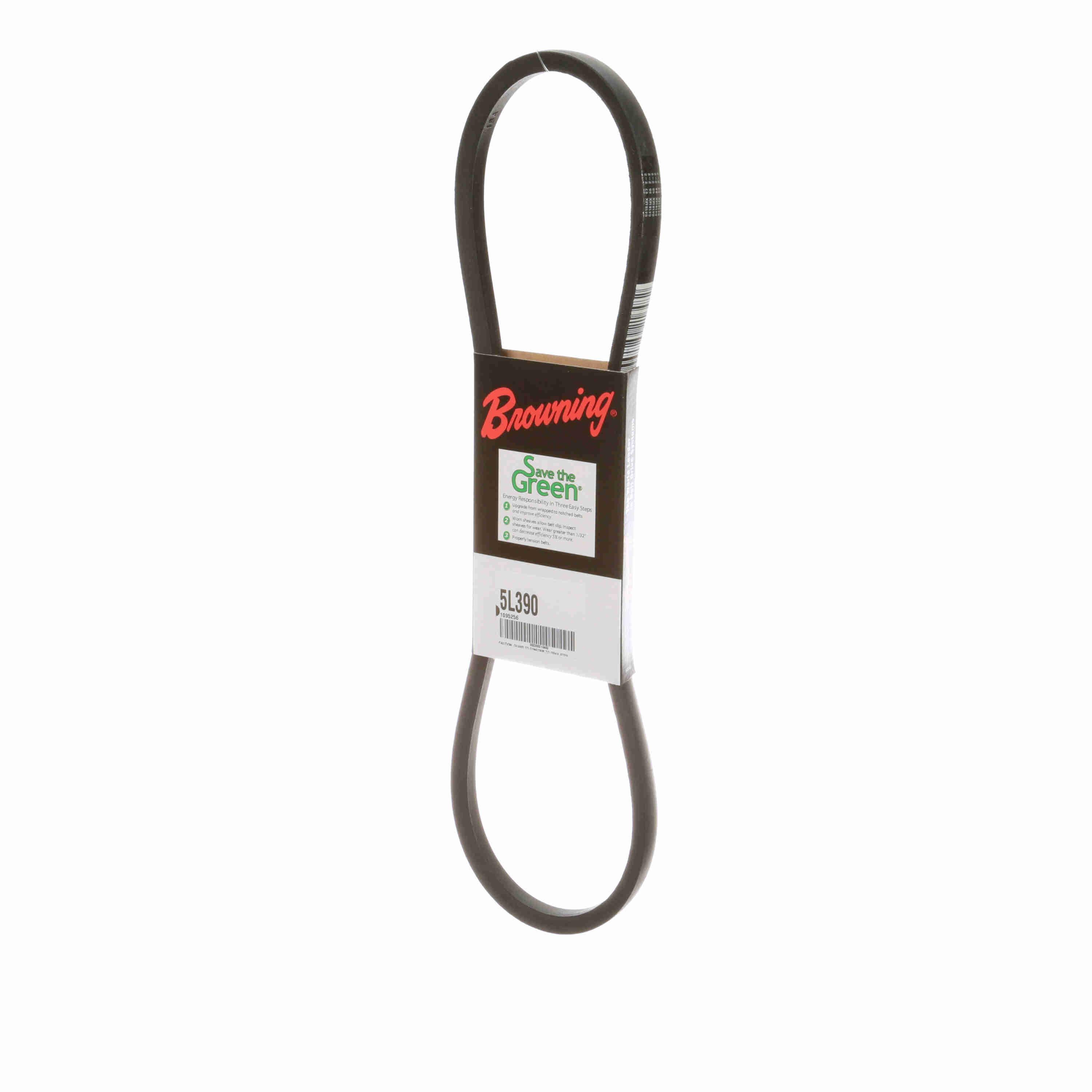

Browning 1095256 Fhp Belt 5L 39 Inch Neoprene Non-cogged

Product Description

The BROWNING 1095256 is a non-cogged fractional horsepower (FHP) V-belt in the 5L section, built for light-duty power transmission in HVAC, refrigeration, and general mechanical equipment. It measures 21/32 inches in top width, 39 inches in outside length, and 3/8 inch in thickness. Constructed from neoprene, it resists oil, heat, and environmental degradation that would degrade a standard rubber belt. Licensed trades and experienced technicians use this belt when servicing blower motors, fan drives, and other fractional horsepower applications where a reliable, consistent drive is required.

This belt is suited for residential and light commercial equipment that uses 5L-section drive systems, including evaporator blowers, condenser fan assemblies, and small pump drives. The non-cogged design provides smooth, quiet operation and consistent tension across the drive. It is a direct-replacement style belt and fits wherever a 5L-section FHP belt of equivalent outside length is specified by the equipment manufacturer.

Key Features

• 5L section non-cogged design for smooth, low-vibration power transmission
• 39 inch outside length fits standard FHP drive configurations
• 21/32 inch top width and 3/8 inch thickness for proper sheave engagement
• Neoprene construction resists oil, heat, and environmental exposure
• Rated to 140 degrees F for use in warm operating environments typical of HVAC equipment
• Single-rib design for standard single-groove sheave or pulley applications

Compatibility

Designed as a direct-replacement FHP V-belt for equipment specifying a 5L-section belt with a 39 inch outside length. Verify sheave groove profile and outside length against equipment documentation before installation.

Installation Notes

Power down and lock out the equipment before removing or installing any drive belt. Loosen the motor mount or tensioner to relieve belt tension before removal — never force a belt over a sheave with a pry tool, as this can damage the belt and sheave groove. After seating the new belt, adjust tension to manufacturer specification and confirm proper alignment between drive and driven sheaves before restoring power.

Technical Specifications

• Belt Section: 5L
• Belt Type: Non-Cogged Fractional Horsepower
• Top Width: 21/32 inches
• Outside Length: 39 inches
• Thickness: 3/8 inches
• Number of Ribs: 1
• Max Temperature Rating: 140 degrees F
• Material: Neoprene

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095256
