Browning 1095231 L belt section 35.8 pitch FHP belt 37 in 5L370

Product Description

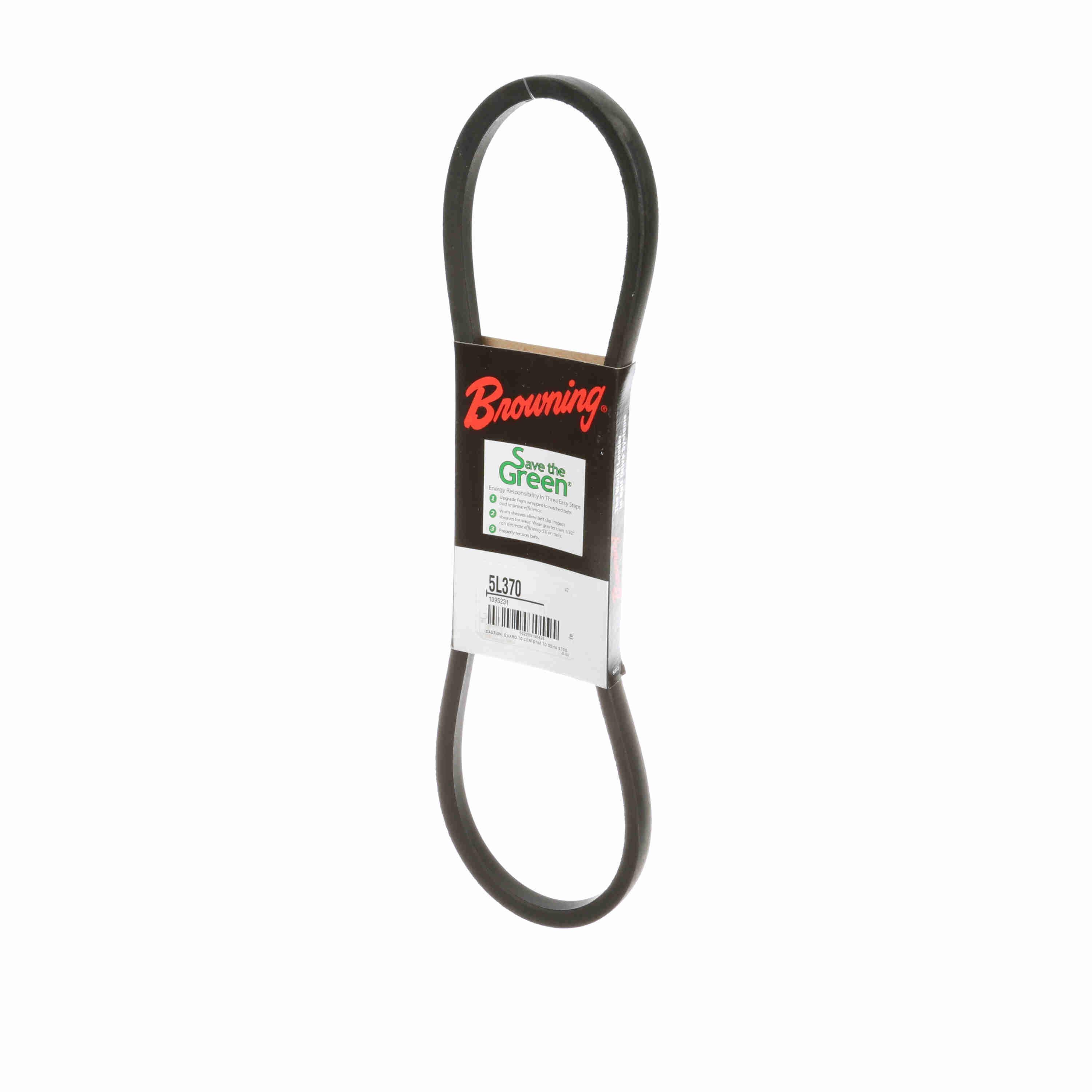

The Browning 1095231 is an L Belt Section, 35.8 Pitch FHP Belt designed for fractional horsepower applications. This standard V-belt features a wrapped construction for smooth and quiet operation, offering greater tolerance to slipping and misalignment. With a 37-inch length and 5L cross-section, it is formulated for maximum flexibility, making it suitable for small sheave applications. Constructed from Neoprene, it ensures durability and reliable performance.

• L Belt Section, 35.8 Pitch, FHP Belt for fractional horsepower applications
• Standard V-Belt with wrapped construction provides smooth, quiet operation and tolerance to slipping
• Designed for small sheave applications with a 37-inch length and 5L cross-section

Product Highlights

Durable FHP V-belt with wrapped construction for smooth operation in small sheave applications.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095231
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 5L370
• Belt Length: 37 inches
• Belt Style: L
• Belt Thickness: 4/25"
• Belt Type: Standard V-Belt
• Belt Width: 9/32"
• Strand: 1
• Top Width: 21/32 inch
• Section: 5L
• Surface: Smooth
• Material: Neoprene
• No. Of Ribs: 1
• Operating Temperature: 140°F
• Outer Material: Rubber
• System Of Measurement: Imperial
• Tensile Material: Cotton
• Belt Sub-Type: FHP Non-Cogged
