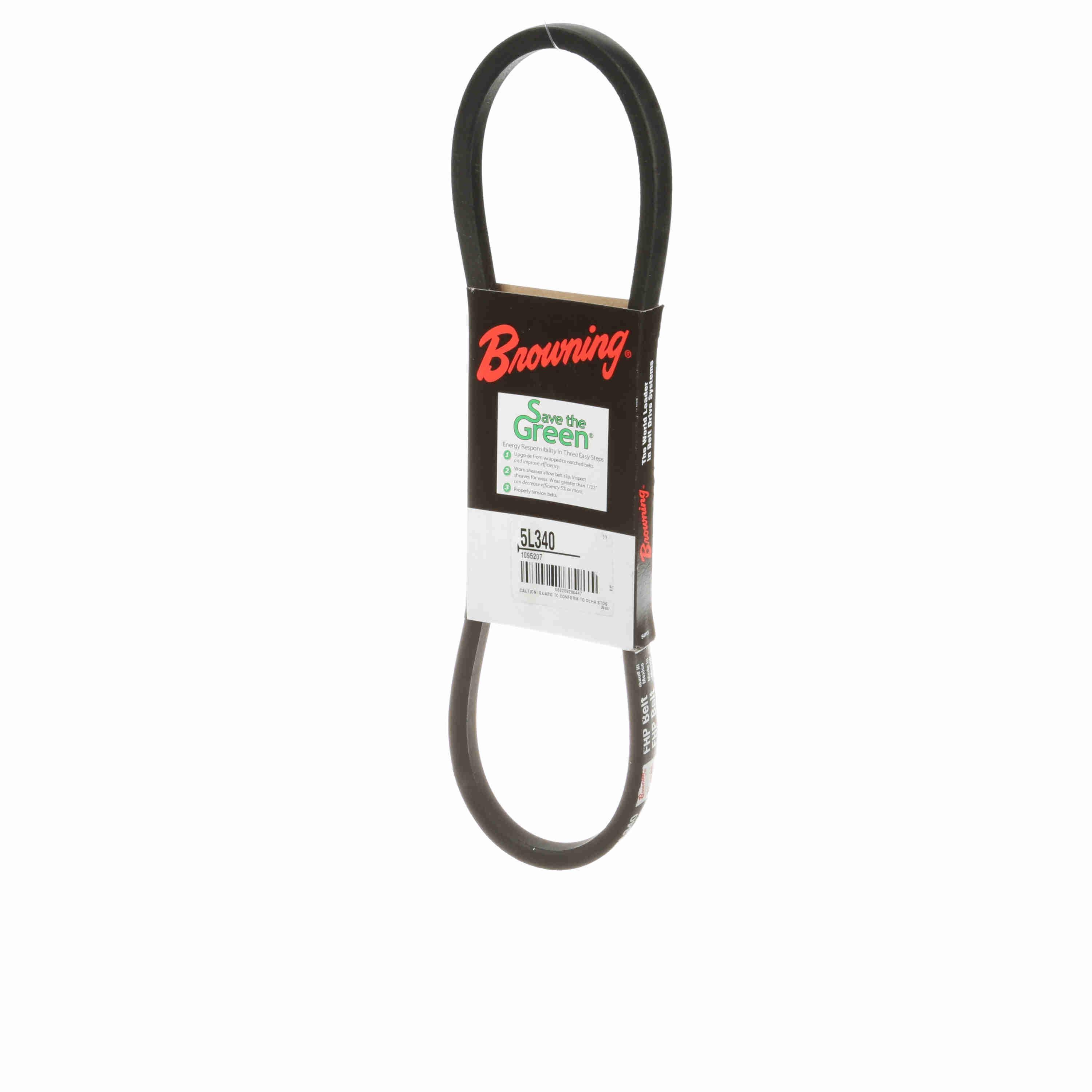

Browning 1095207 Fhp Belt 5L Section 34in Neoprene Non-cogged

Product Description

The BROWNING 1095207 is a non-cogged fractional horsepower (FHP) V-belt in the 5L cross-section, built for light-duty power transmission in HVAC blower, fan, and motor-drive applications. The belt measures 21/32 inches in top width, 34 inches in outside length, and 3/8 inch in thickness. Its neoprene construction with cotton reinforcement provides resistance to heat, oil, and everyday environmental exposure in mechanical drive systems. A single-rib profile ensures consistent tracking in standard FHP sheave grooves. This belt is installed by HVAC technicians, mechanical service techs, and equipment maintenance professionals.

This belt is suited for residential and light commercial HVAC systems, fan assemblies, and other fractional horsepower drive applications where a standard 5L-section belt is specified. The non-cogged design means a smooth outer surface, making it compatible with standard fixed-pitch sheaves. It performs reliably in indoor mechanical environments where temperatures remain within the rated thermal limit. Installers typically encounter this belt on belt-drive blower assemblies in air handlers, furnaces, and similar equipment.

Key Features

• Non-cogged 5L cross-section profile fits standard FHP sheave grooves
• Neoprene body with cotton reinforcement for oil and heat resistance
• 34-inch outside length suits common fractional horsepower blower drive configurations
• 21/32-inch top width and 3/8-inch thickness match standard 5L sheave geometry
• Rated to 140 degrees F for typical HVAC mechanical room conditions
• Single-rib construction for smooth, consistent power transmission

Compatibility

Designed as a direct replacement for 5L-section fractional horsepower V-belt applications in residential and light commercial HVAC blower and fan drive assemblies.

Installation Notes

Installation should be performed by a qualified HVAC or mechanical service technician. Disconnect and lock out electrical power to the unit before removing the belt guard or handling drive components. Never pry a belt onto a sheave with a tool; loosen the motor mounting to create slack before seating the belt. Inspect sheave grooves for wear and proper alignment before installing a replacement belt.

Technical Specifications

• Section: 5L
• Top Width: 21/32 inches
• Outside Length: 34 inches
• Thickness: 3/8 inch
• Number of Ribs: 1
• Maximum Temperature Rating: 140 degrees F
• Material: Neoprene, Cotton Reinforced
• Color: Black
• Belt Type: Non-Cogged Fractional Horsepower

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095207
