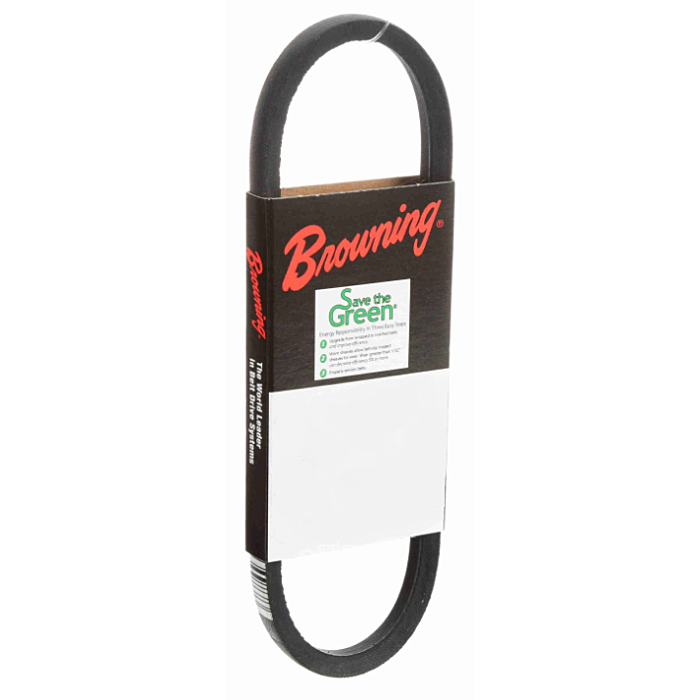

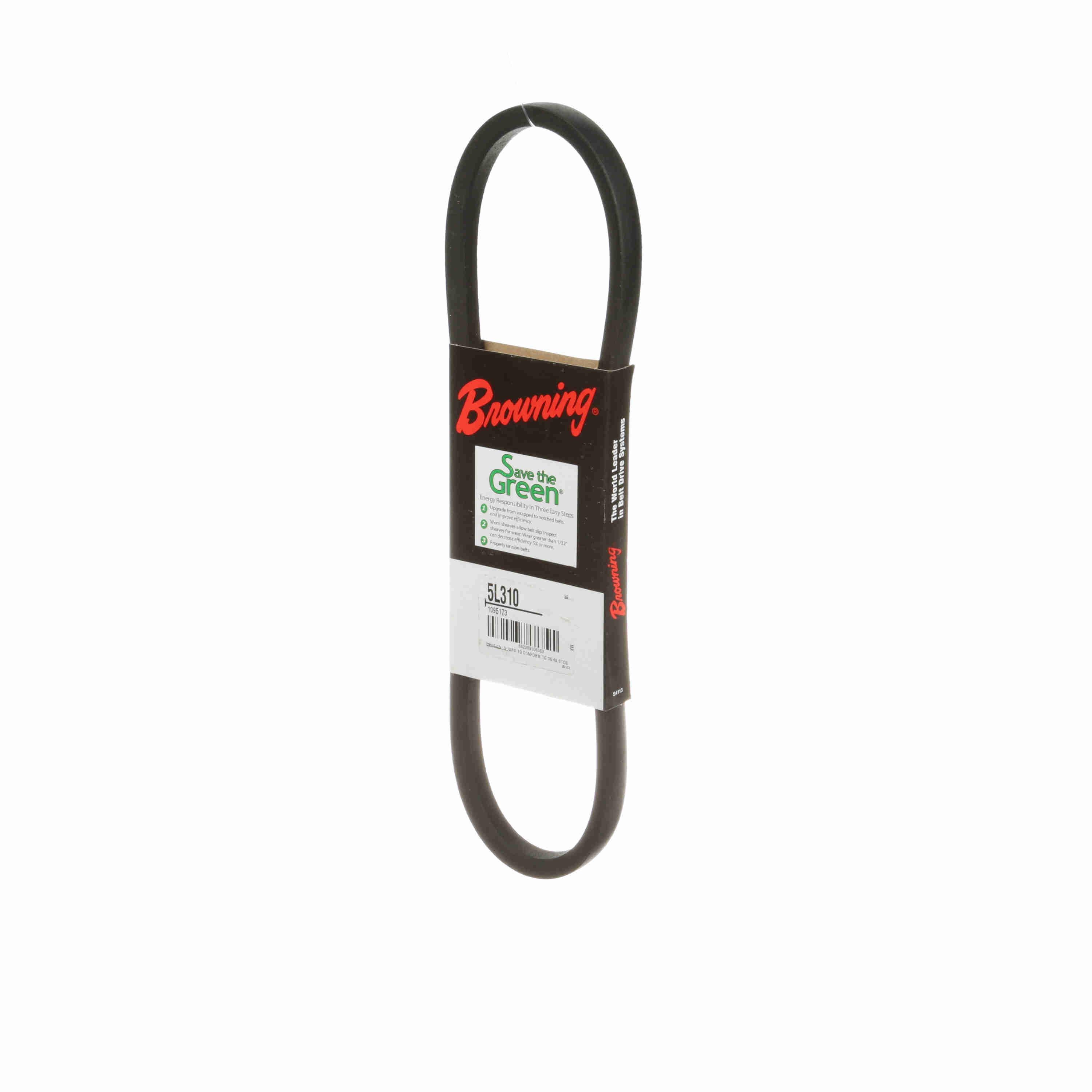

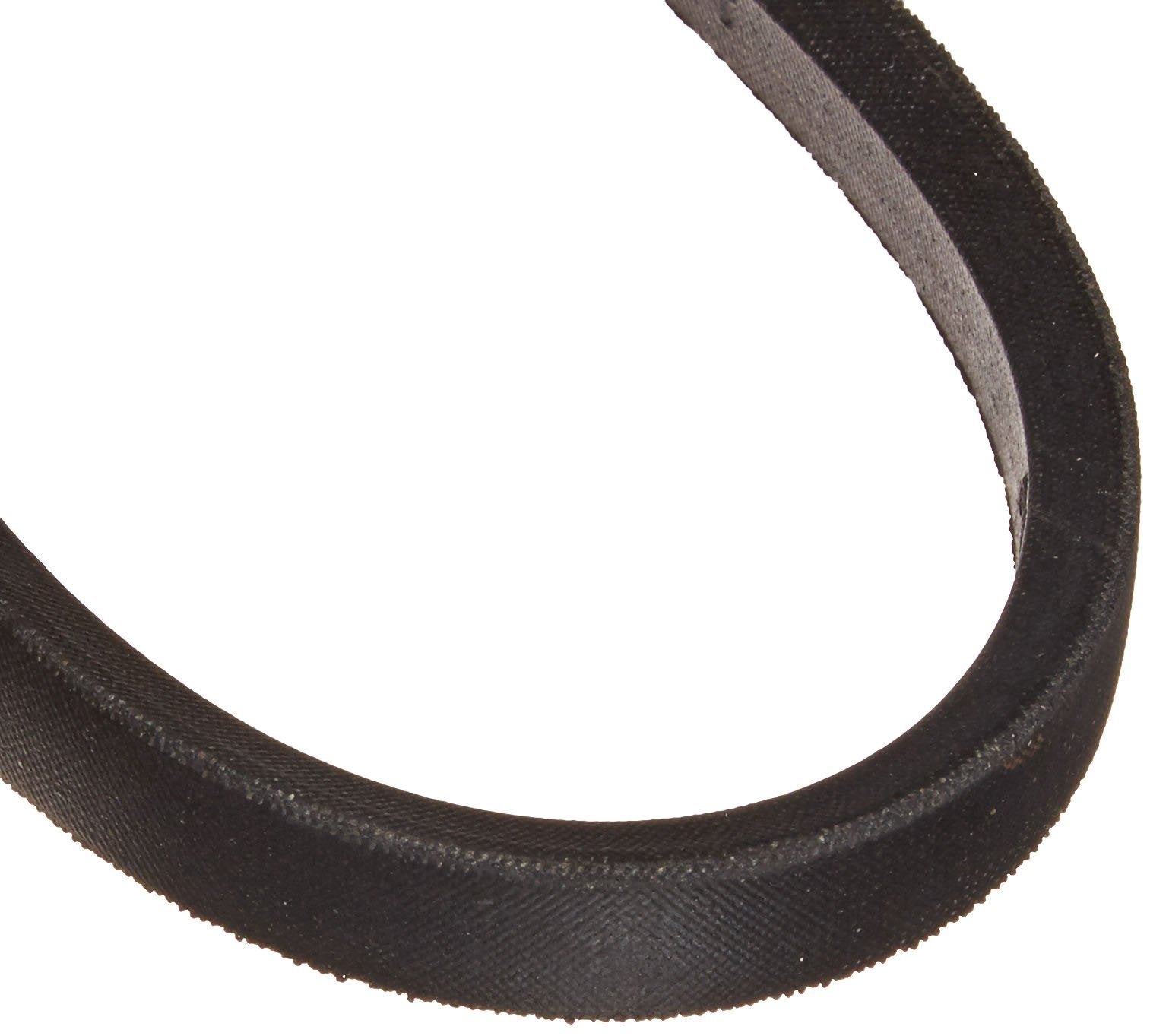

Browning 1095173 5L310 FHP V-Belts L Belt Section 29.8 Pitch

Product Description

The Browning 1095173 is a 5L310 FHP V-Belt, featuring an L belt section with a 29.8 pitch. This standard V-belt has a length of 31, a width of 9/32 inches, and a thickness of 4/25 inches. Its wrapped construction ensures smooth and quiet operation, making it suitable for various fractional horsepower applications. It is designed for flexibility and resistance to oil and heat.

• Wrapped construction provides smooth, quiet operation.
• Formulated for maximum flexibility with smaller diameter sheaves.
• Oil and heat resistant, with static conducting properties.

Product Highlights

This FHP V-belt is designed for small sheave applications, offering tolerance to slipping and misalignment.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095173
• Country of Origin: Mexico

Technical Specifications

• MPN: 1095173
• Manufacturer: Regal
• ASIN: B003U1ZZE2
• Belt Code: 5L310
• Belt Length: 31
• Belt Style: L
• Belt Thickness: 4/25"
• Belt Type: Standard V-Belt
• Belt Width: 9/32"
• UPC: 662289106363
• Country of Origin: MEX
• UOM: EA
• Prop 65: No
• Product Type: MECHANICAL_BELT
• Belt Section: L Belt Section
• Number of Items: 1.0
• Pkg Quantity: 1.0
• Non-Cogged Type: Non-Cogged
• Section Size: 5L
• Top Width: 21/32 in
• Thickness: 3/8 in
• Ribs: 1
• Operating Temperature Max Fahrenheit: 140 deg F
• Material: Neoprene
• Reinforcement Material: Cotton
• Color: Black
• BSC Item#: 5L310 BRWN
• Application: Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Oil, Gas, Pulp, Paper and Unit Handling Industries
• Pitch Length: 29.8
• Belt Series: FHP Belts
• Construction Type: Wrapped
• Standards Met: ARPM IP-23
• Operating Temperature Max Celsius: 60 °C
• Operating Temperature Range: -32 to +140 °F
• Resistance Features: Oil & Chemical per ARPM IP-3-2, Static Dissipating per ARPM IP-3-3
• Part Height: .375
• Strands: 1
• Surface Finish: Smooth
