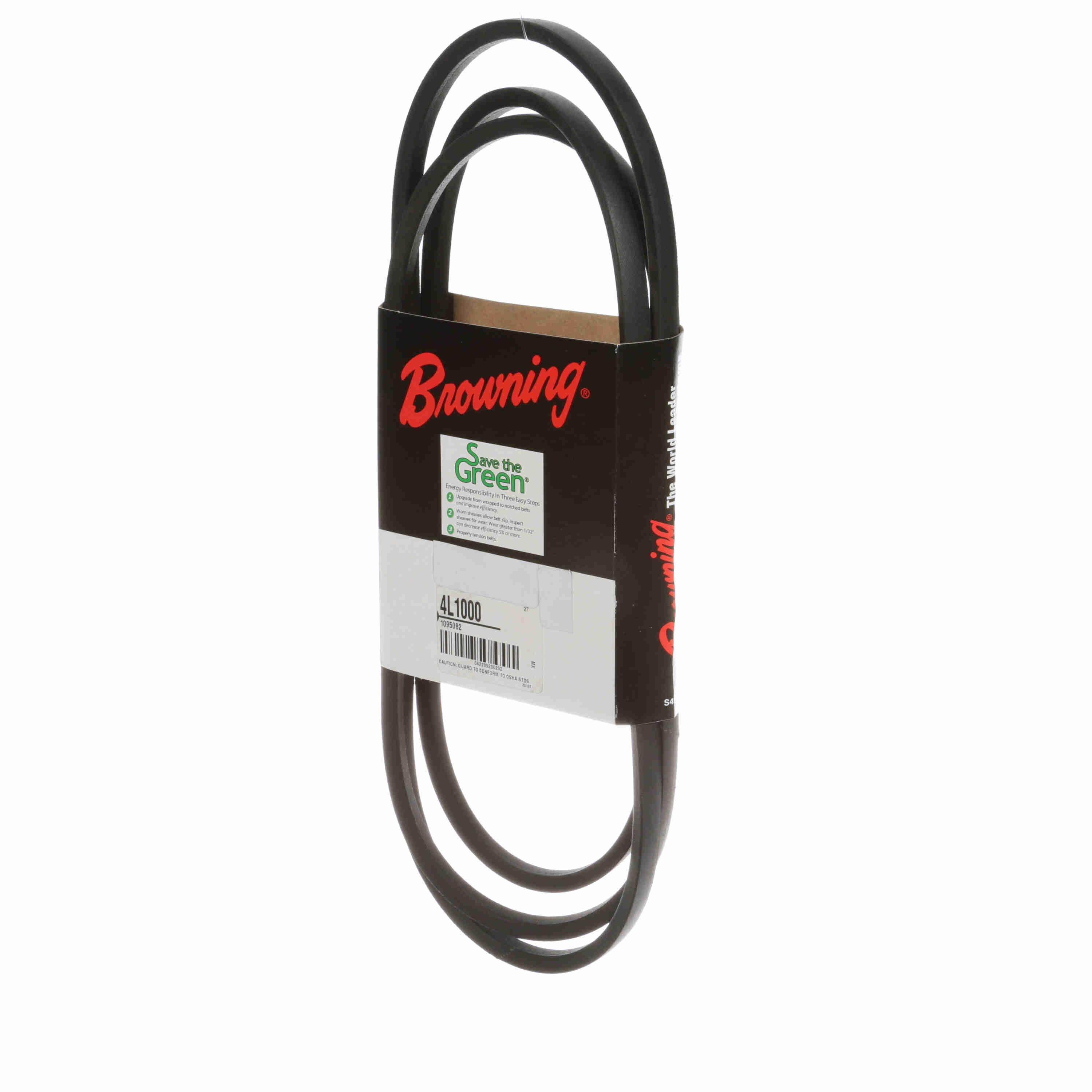

Browning 1095082 Fhp V-belt 4L 100in Epdm

Product Description

The BROWNING 1095082 is a non-cogged fractional horsepower (FHP) V-belt engineered for light-duty power transmission in HVAC, fan, and blower drive applications. Built to 4L section standards, it measures 100 inches in outside length, 0.5 inches in top width, and 0.3125 inches in thickness. The belt is constructed from EPDM compound with cotton reinforcement, giving it strong resistance to heat and environmental degradation. It carries a single rib profile and is rated to 230 degrees F continuous operating temperature. HVAC technicians and mechanical contractors install this belt as a direct replacement in belt-drive systems where a standard 4L100 designation applies.

This belt is suited for residential and light commercial belt-drive assemblies including air handlers, furnace blowers, evaporator coil fans, and small exhaust fans. The 4L cross-section is one of the most common FHP profiles found in packaged HVAC units and standalone fan assemblies. Its EPDM construction makes it a preferred choice in environments where belt exposure to ozone, heat, or moderate moisture is a concern. Installation does not require special tooling beyond a belt tension gauge and standard hand tools.

Key Features

• 4L section profile — one of the most widely used FHP V-belt cross-sections in HVAC and fan drive applications
• 100 inch outside length fits standard 4L100 drive configurations
• EPDM compound construction provides strong resistance to heat up to 230 degrees F and ozone degradation
• Cotton reinforcement adds flexibility and dimensional stability under cyclic load
• Non-cogged smooth back design for use on standard sheaves without cog-compatible grooves
• Single-rib profile maintains consistent tracking on matched sheave pairs

Compatibility

Designed as an OEM-style replacement for fractional horsepower belt-drive systems requiring a 4L section belt with a 100 inch outside length.

Installation Notes

FHP V-belts are installed by qualified HVAC technicians or mechanical contractors. Disconnect and lock out electrical power to the drive unit before removing the old belt or handling the sheaves. Never pry or force the belt over sheave flanges — release drive tension by adjusting the motor mount before installation. After seating the new belt, set tension per the equipment manufacturer specification using a belt tension gauge, then verify alignment with a straightedge across both sheave faces before restoring power.

Technical Specifications

• Section: 4L
• Outside Length: 100 inches
• Top Width: 0.5 inches
• Thickness: 0.3125 inches
• Number of Ribs: 1
• Maximum Operating Temperature: 230 degrees F
• Belt Type: Non-Cogged FHP V-Belt
• Material: EPDM, Cotton Reinforced
• Color: Black

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095082
