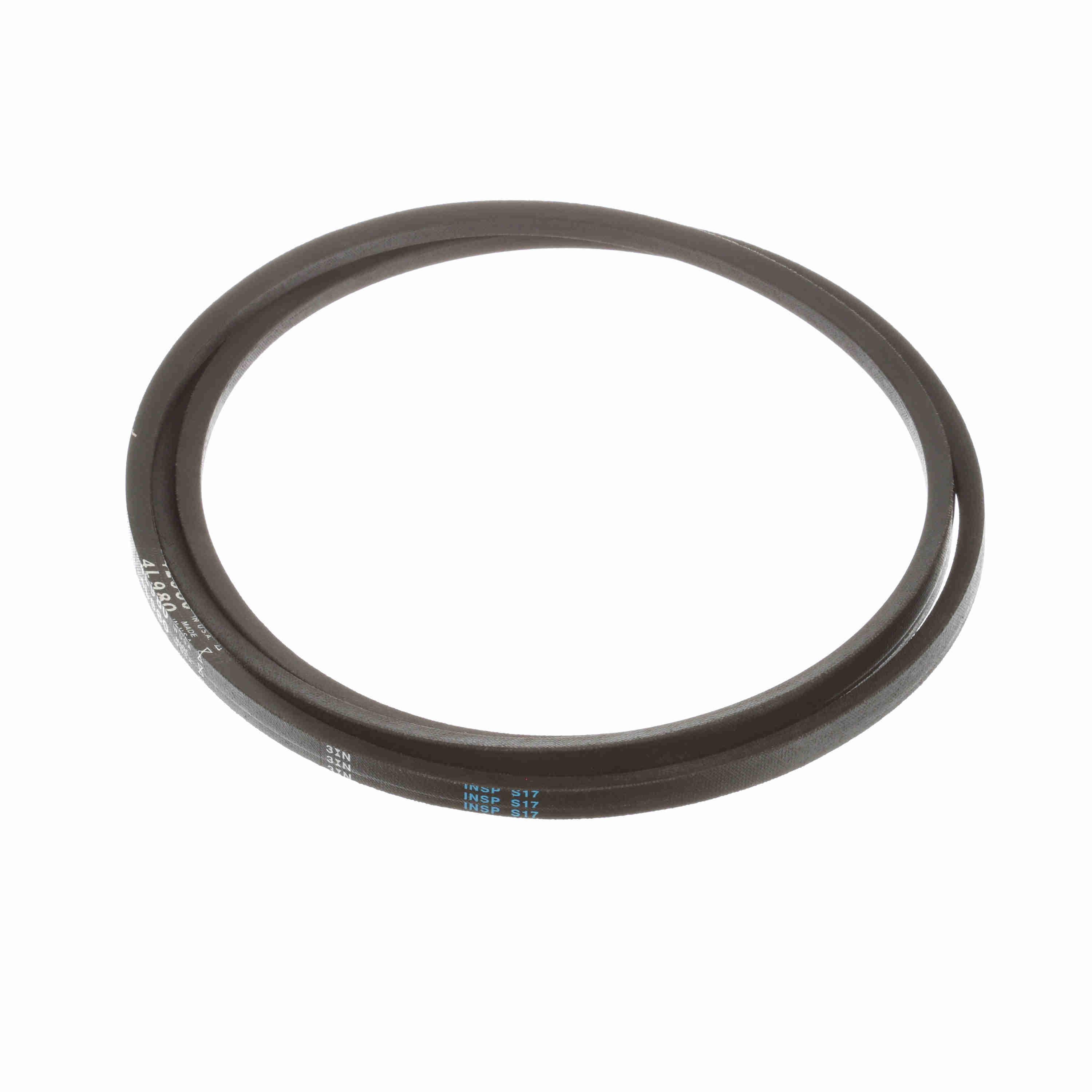

Browning 1095066 Non-cogged Fhp Belt 4L 98 in

Product Description

The BROWNING 1095066 is a non-cogged fractional horsepower (FHP) V-belt in the 4L section, designed for light-duty power transmission applications in HVAC, agricultural, and general industrial equipment. Built from neoprene with cotton reinforcement, this belt delivers reliable torque transfer in systems where a smaller, fractional horsepower drive is specified. It measures 0.5 inches in top width, 98 inches in outside length, and 0.3125 inches in thickness. The neoprene construction provides resistance to heat, oil, and common shop contaminants encountered in field service environments.

This belt is suited for residential and light commercial HVAC blower drives, fan assemblies, small compressors, and general machinery where a 4L-section FHP belt is called out by the equipment manufacturer. It is a single-rib belt and is rated for operating temperatures up to 140 degrees F, making it appropriate for standard indoor mechanical room and rooftop unit environments. HVAC technicians and mechanical contractors are the primary installers for this type of drive component.

Key Features

• 4L section profile — standard fractional horsepower V-belt cross-section for wide OEM applicability
• Non-cogged construction for smooth, low-vibration operation on standard sheaves
• Neoprene body with cotton reinforcement for heat, oil, and abrasion resistance
• 98-inch outside length suits longer center-distance drive configurations
• Rated to 140 degrees F for reliable performance in typical mechanical environments
• Single-rib design — direct replacement for single 4L-section FHP belt applications

Compatibility

Designed as an OEM-style replacement for equipment specifying a 4L-section non-cogged fractional horsepower V-belt with a 98-inch outside length.

Installation Notes

Belt replacement should be performed by a qualified HVAC technician or mechanical contractor. Always de-energize and lock out the drive system before removing or installing belts. Adjust sheave center distance to allow belt installation without forcing the belt over sheave flanges, then re-tension according to the equipment manufacturer's specifications. Never use belt dressing on neoprene V-belts, as it can degrade the belt compound and void the drive design.

Technical Specifications

• Belt Section: 4L
• Belt Type: Non-Cogged Fractional Horsepower V-Belt
• Outside Length: 98 inches
• Top Width: 0.5 inches
• Thickness: 0.3125 inches
• Number of Ribs: 1
• Maximum Operating Temperature: 140 degrees F
• Material: Neoprene, Cotton Reinforced
• Color: Black

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095066
