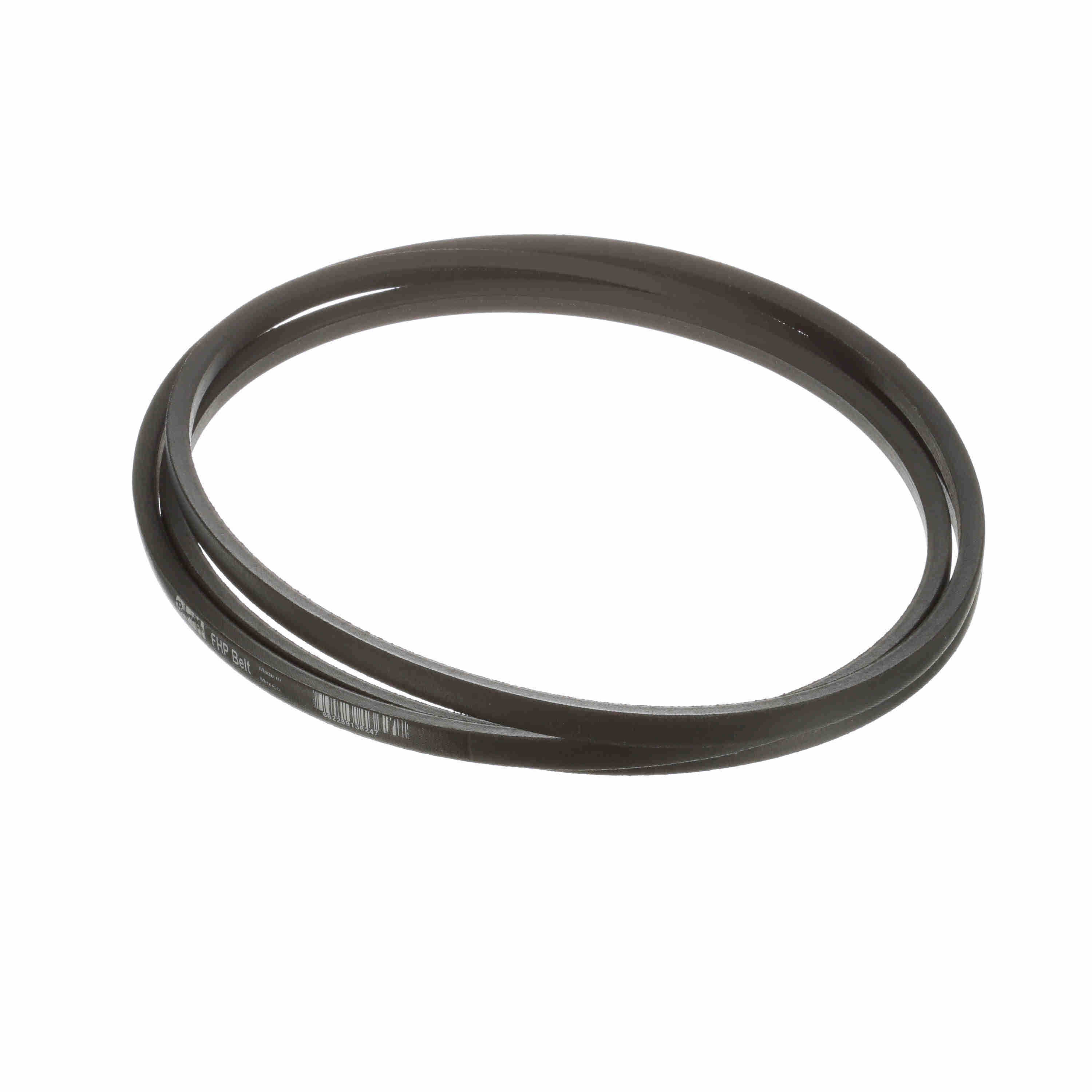

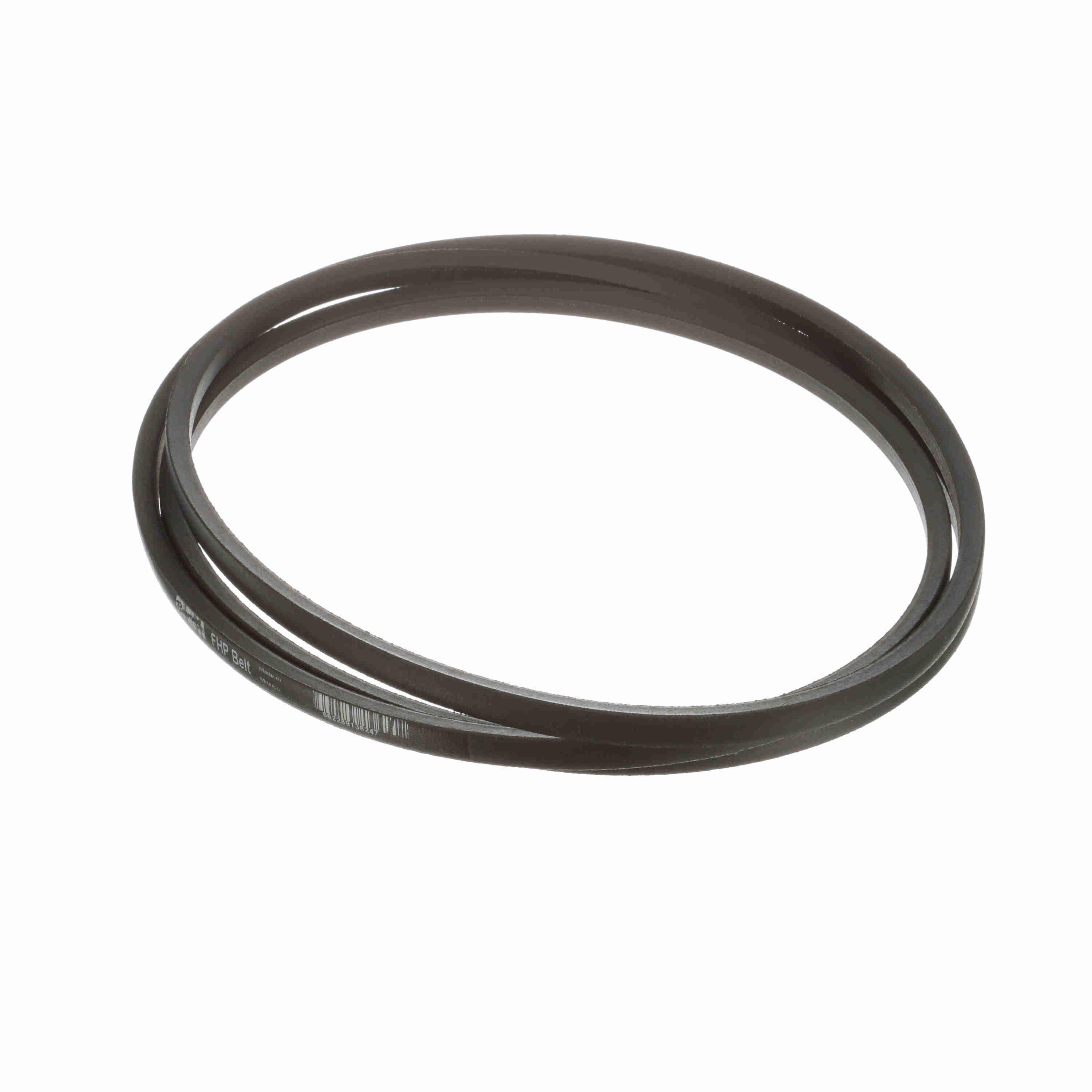

Browning 1095009 Non-cogged Fhp Belt 4L 92 in

Product Description

The BROWNING 1095009 is a non-cogged fractional horsepower (FHP) V-belt in the 4L section, designed for light-duty power transmission in HVAC, fan, and blower applications. Built from neoprene with cotton reinforcement, it measures 0.5 inches in top width, 92 inches in outside length, and 0.3125 inches in thickness. The solid, non-cogged construction provides smooth, quiet operation across small-sheave drive systems. HVAC technicians and maintenance professionals install this belt on residential and light commercial equipment where fractional horsepower drives are common.

The 1095009 is suited for residential and light commercial HVAC systems, including air handlers, furnace blowers, and ventilation fans that use 4L-section sheaves. Its neoprene construction resists heat, oil, and common environmental contaminants found in mechanical rooms and equipment closets. The 92-inch outside length and standard 4L cross-section make it a direct fit for FHP drive packages that call for this belt designation. Service technicians working preventive maintenance or emergency belt replacement will find this a straightforward swap on properly matched sheaves.

Key Features

• 4L section profile with 0.5-inch top width and 0.3125-inch thickness for standard FHP sheave fitment
• 92-inch outside length for accurate drive sizing
• Neoprene construction resists heat up to 140 degrees F, oil, and environmental exposure
• Cotton-reinforced body provides tensile stability under cyclic load
• Non-cogged design delivers smooth, low-vibration operation on matched drives
• Single-rib configuration for standard single-groove sheave setups

Compatibility

Designed as an OEM-style replacement for fractional horsepower drive systems using 4L-section V-belt sheaves in residential and light commercial HVAC and ventilation equipment.

Installation Notes

Belt replacement is typically performed by a qualified HVAC technician or mechanical maintenance professional. Always disconnect and lock out electrical power to the unit before removing access panels or handling drive components. Inspect sheaves for wear, misalignment, and debris before installing the new belt, and set proper tension according to the equipment manufacturer's specifications. Do not pry the belt over sheave flanges using sharp tools, as this can damage the reinforcement cords.

Technical Specifications

• Belt Section: 4L
• Top Width: 0.5 inches
• Outside Length: 92 inches
• Thickness: 0.3125 inches
• Number of Ribs: 1
• Maximum Temperature Rating: 140 degrees F
• Material: Neoprene, Cotton Reinforced
• Color: Black
• Belt Type: Non-Cogged Fractional Horsepower

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095009
