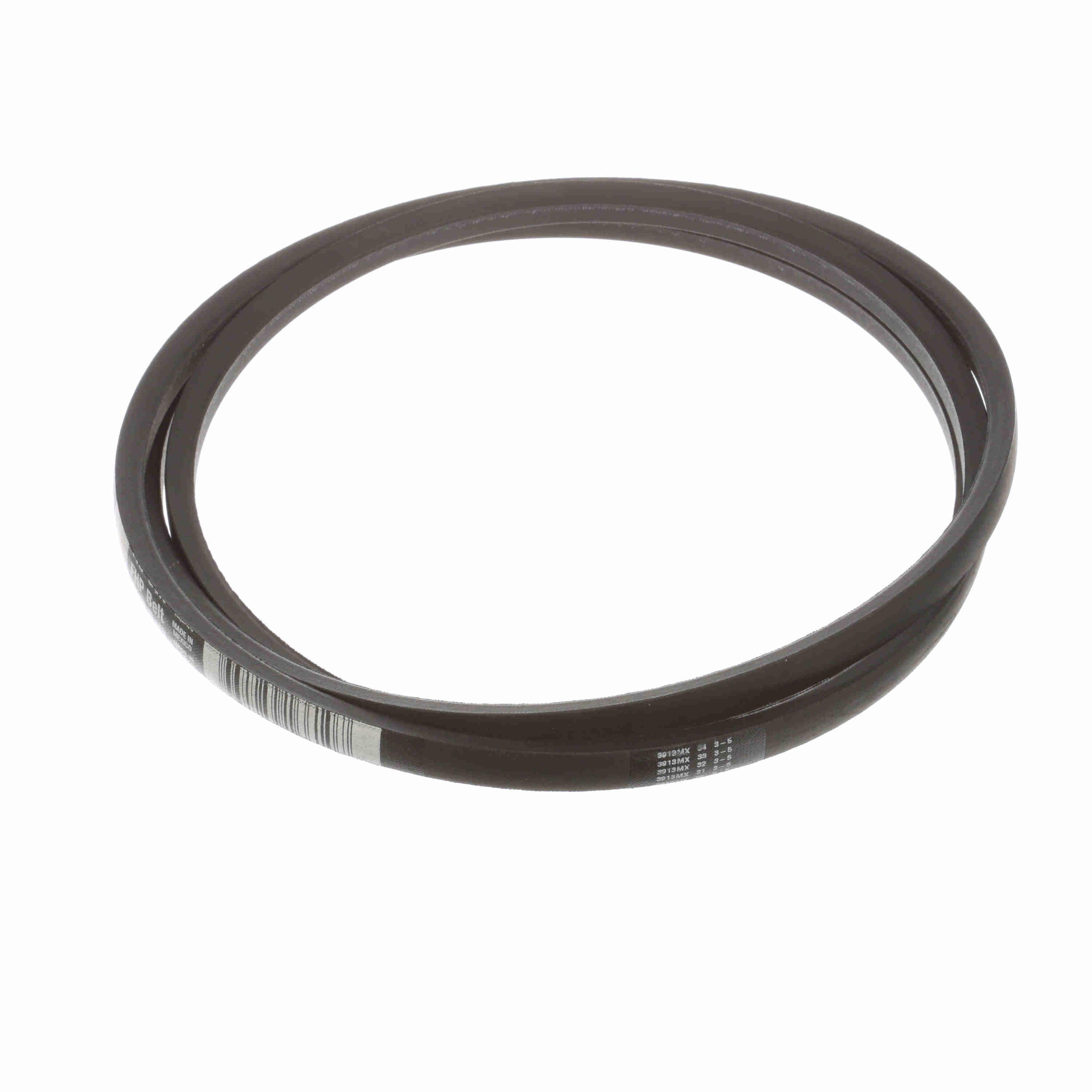

Browning 1094929 Non-cogged Fhp Belt 4L 84in Neoprene

Product Description

The BROWNING 1094929 is a non-cogged fractional horsepower (FHP) V-belt designed for light-duty power transmission applications in HVAC, refrigeration, and general mechanical equipment. Built to 4L section standards, it measures 1/2 inch wide at the top, 5/16 inch thick, and 84 inches in outside length. The belt is constructed from neoprene with cotton reinforcement for flexibility and heat resistance up to 140 degrees F. HVAC technicians and mechanical service pros install this belt on blower and fan drive systems where a reliable, cost-effective fractional horsepower belt is required.

This belt is suited for residential and light commercial HVAC blower assemblies, evaporative cooler drives, refrigeration condenser fan drives, and similar small motor-driven equipment. The 4L section profile is one of the most common FHP cross-sections found in packaged units, air handlers, and standalone fan systems. It is a direct replacement for worn or failed OEM belts of the same section and outside length specification.

Key Features

• Non-cogged design provides smooth, quiet operation on standard sheaves
• 4L section profile fits the most widely used FHP sheave and pulley sizes
• Neoprene construction resists heat, oil, and environmental degradation
• Cotton reinforcement maintains belt integrity and dimensional stability under load
• Rated to 140 degrees F for use in high-ambient equipment environments
• 84 inch outside length covers a broad range of drive center distances

Compatibility

Designed as an OEM-style replacement for fractional horsepower drive systems using a standard 4L section V-belt with an 84 inch outside length and 1/2 inch top width.

Installation Notes

Installation is typically performed by HVAC technicians or mechanical service professionals. Always disconnect and lock out power to the unit before removing the old belt or accessing the drive assembly. Adjust sheave or motor mount position to allow belt installation without prying or forcing, then tension according to the equipment manufacturer's deflection specification. Inspect sheaves for wear or misalignment before installing a new belt to avoid premature failure.

Technical Specifications

• Section: 4L
• Top Width: 1/2 inch
• Outside Length: 84 inches
• Thickness: 5/16 inch
• Number of Ribs: 1
• Max Temperature Rating: 140 degrees F
• Belt Type: Non-Cogged
• Material: Neoprene, Cotton Reinforced
• Color: Black

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1094929
