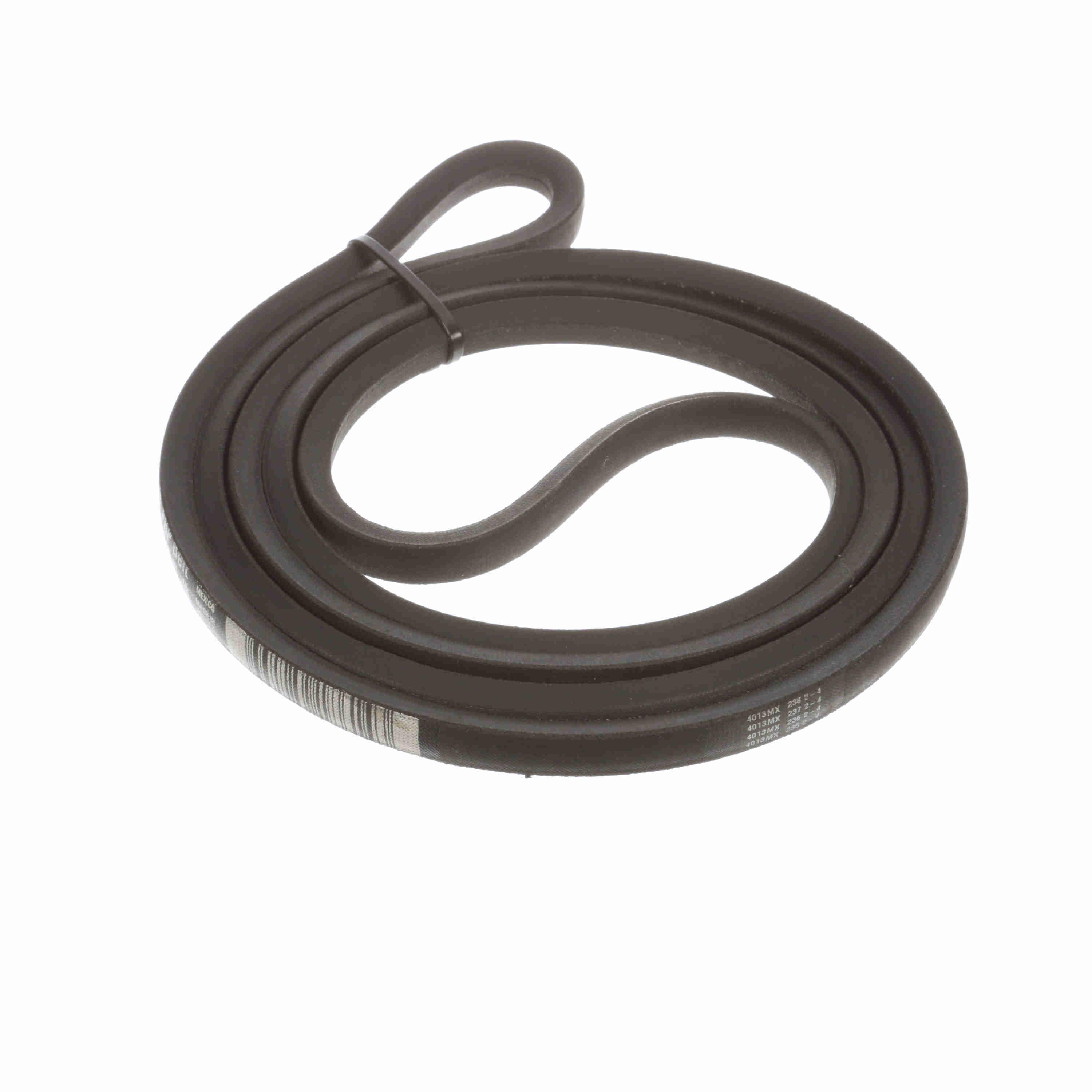

Browning 1094903 Fhp Belt 4L Section 82 in Outside Length

Product Description

The BROWNING 1094903 is a non-cogged fractional horsepower (FHP) V-belt in the 4L section, designed for light-duty power transmission applications in HVAC, refrigeration, and general mechanical equipment. Constructed from neoprene with cotton reinforcement, it delivers reliable torque transfer in environments where moisture resistance and durability matter. The belt measures 0.5 inches in top width, 82 inches in outside length, and 0.3125 inches in thickness, making it a standard fit for small motor-to-shaft drive systems. Licensed HVAC technicians and mechanical service pros keep this profile on hand for blower and fan drive replacements.

This 4L section belt is suited for residential and light commercial HVAC units, refrigeration compressor drives, and small industrial fan assemblies. The non-cogged design provides smooth, consistent contact across the sheave surface, making it appropriate for lower-speed fractional horsepower motor applications. It is a common replacement belt for blower sections in air handlers and furnaces that use standard 4L-profile sheaves.

Key Features

• 4L section profile with 0.5-inch top width and 82-inch outside length
• Non-cogged construction for smooth, quiet operation on standard sheaves
• Neoprene compound resists oil, heat, and moisture
• Cotton reinforcement provides tensile stability under cyclic loads
• Rated to 140 degrees F for use in heated equipment spaces
• Single-rib belt designed for fractional horsepower drive systems

Compatibility

Designed as an OEM-style replacement for fractional horsepower belt drives using 4L section sheaves in HVAC blowers, fan assemblies, and light-duty mechanical equipment.

Installation Notes

Belt installation and replacement is typically performed by licensed HVAC technicians or qualified mechanical service personnel. Always de-energize and lock out the motor before removing the belt guard or existing belt. Adjust sheave spacing to allow belt seating without prying, then set tension per the equipment manufacturer's deflection specification. Inspect sheave grooves for wear before installing a new belt, as worn grooves accelerate belt fatigue.

Technical Specifications

• Section: 4L
• Top Width: 0.5 inches
• Outside Length: 82 inches
• Thickness: 0.3125 inches
• Number of Ribs: 1
• Max Temperature Rating: 140 degrees F
• Belt Type: Non-Cogged
• Material: Neoprene, Cotton Reinforced
• Color: Black

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1094903
