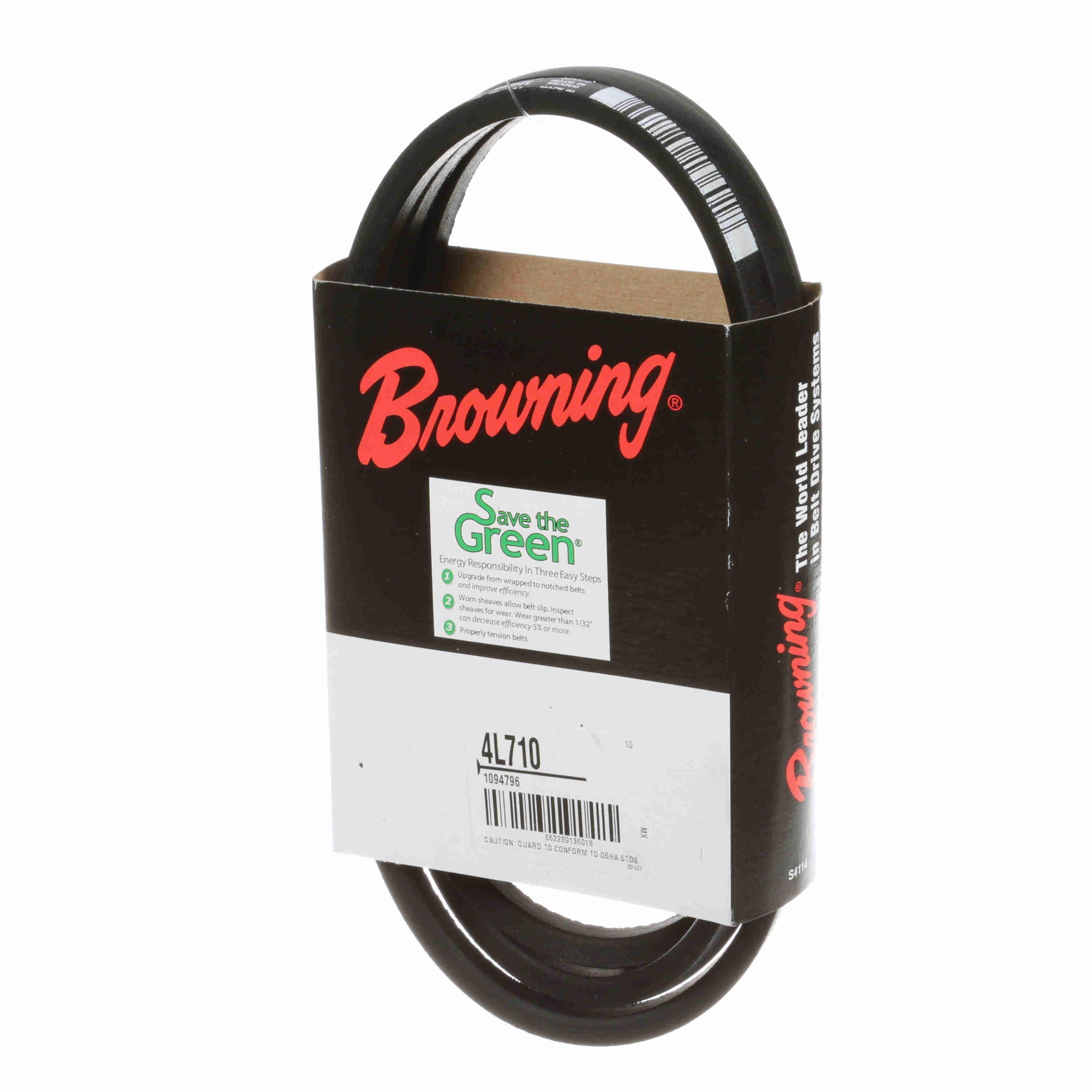

Browning 1094796 L belt section, 70 pitch, FHP belt 71 in outside length 4L710

Product Description

The Browning 1094796 is an L Belt Section, 70 Pitch, FHP Belt, also known as a 4L710 V-Belt. This standard V-belt is designed for fractional horsepower applications, featuring a 4L section and an outside length of 71 inches. Constructed from neoprene with a rubber outer and cotton tensile material, it offers a 1/2 inch top width and 5/16 inch thickness, suitable for operating temperatures up to 140°F.

• Standard V-Belt with L Belt Section and 70 Pitch.
• Wrapped construction ensures smooth, quiet operation and tolerance to slipping.
• Oil and heat resistant, static conducting, and formulated for flexibility in small diameter sheaves.

Product Highlights

Durable FHP V-belt for power transmission, featuring wrapped construction for smooth operation and resistance to oil and heat.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1094796
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 4L710
• Pitch Length: 70
• Outside Length: 71 in
• Belt Section: 4L
• Thickness: 5/16 in
• Belt Type: FHP V-Belt
• Construction: Non-Cogged, Wrapped
• Top Width: 1/2 in
• Number of Ribs: 1
• Operating Temperature: 140°F
• Material: Neoprene
• Outer Material: Rubber
• Tensile Material: Cotton
