Browning 1094135 3L550 V-belt Rubber

Product Description

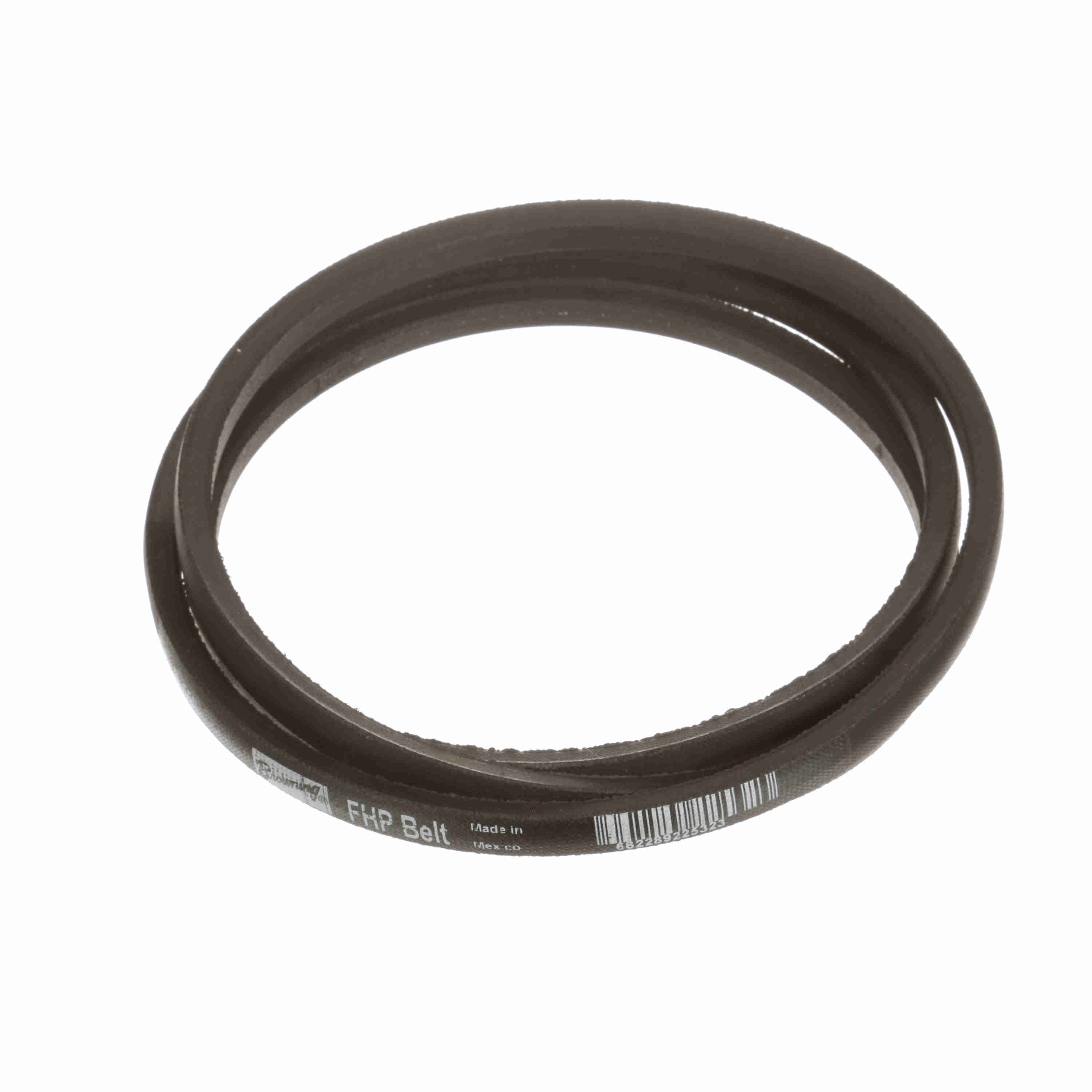

The BROWNING 1094135 is a 3L550 fractional horsepower V-belt constructed from rubber for use in light-duty power transmission applications. The 3L cross-section designation indicates a 3/8-inch top width profile, and the 550 suffix denotes a 55.0-inch outside circumference. This belt type is a standard choice for HVAC blower assemblies, small fan drives, and auxiliary equipment where a compact, flexible drive element is required. Installation is typically performed by HVAC technicians or general maintenance personnel during routine belt replacements.

The BROWNING 1094135 fits single-groove and multi-groove sheave configurations designed for the 3L fractional horsepower belt section. It is commonly used in residential and light commercial HVAC systems, evaporative coolers, small air handlers, and similar motor-to-blower drive arrangements where a 3L-section belt is specified. Use the 3L550 designation when cross-referencing to other manufacturers or when matching to an existing drive system.

Key Features

• 3L cross-section profile with 3/8-inch top width for fractional horsepower drive applications
• 55.0-inch outside circumference for precise drive sizing
• Rubber construction provides flexibility and resistance to everyday operating conditions
• Standard 3L550 industry designation simplifies cross-referencing and replacement sourcing
• Suitable for single-groove and matched multi-groove sheave setups

Compatibility

Designed as an OEM-style replacement for equipment requiring a 3L-section fractional horsepower V-belt with a 55.0-inch outside circumference.

Installation Notes

Power down and lock out the equipment before removing the old belt or installing the new one. Loosen the motor mounting bolts to relieve tension and allow the belt to be seated in the sheave grooves without forcing it over the rim. Once the belt is seated, adjust motor position to achieve proper tension per the equipment manufacturer's specification, then re-secure all fasteners. Inspect sheave grooves for wear or misalignment before installation to avoid premature belt failure.

Technical Specifications

• Belt Section: 3L
• Outside Circumference: 55.0 inches
• Top Width: 3/8 inch
• Material: Rubber

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1094135
