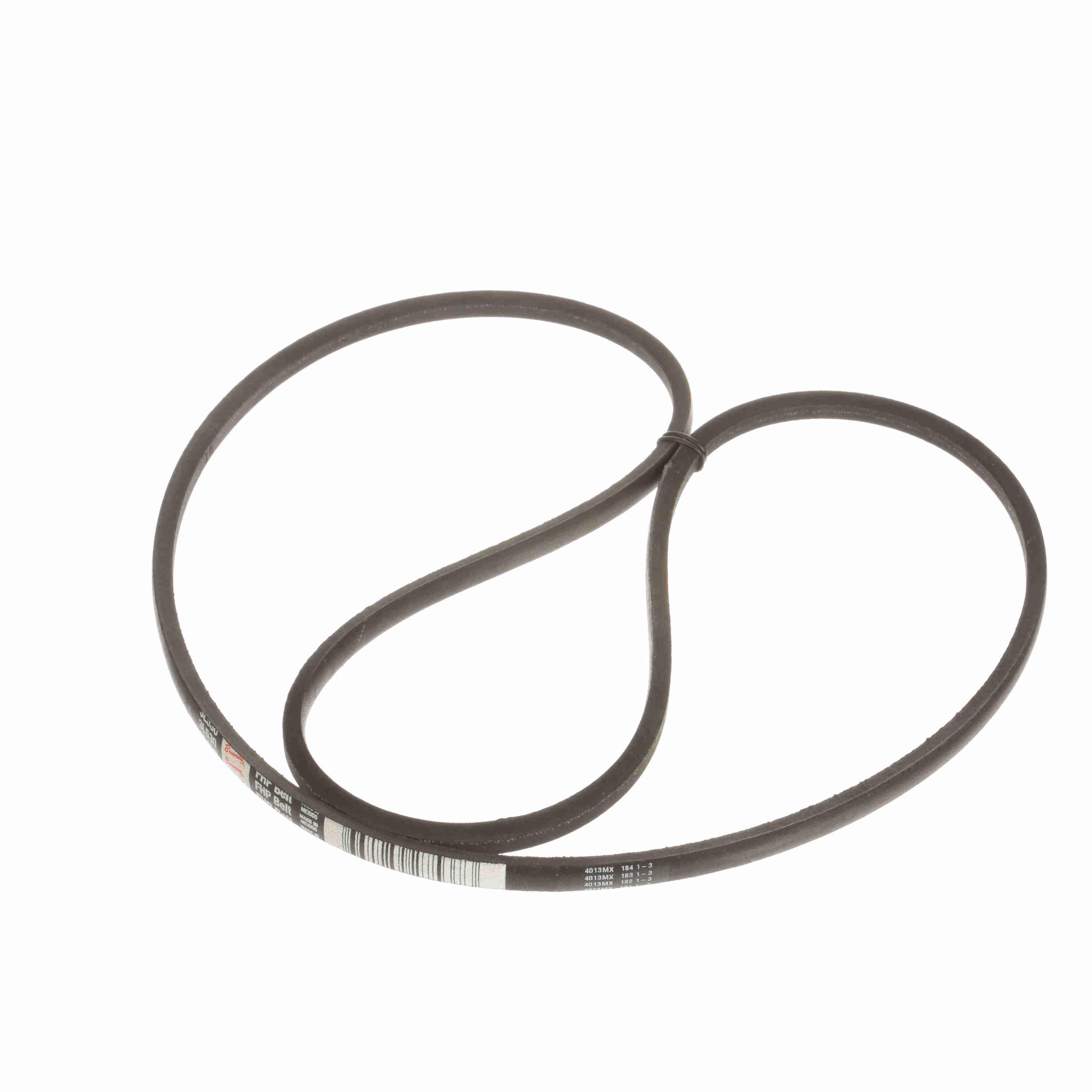

Browning 1094119 3L Non-cogged Fhp Belt 53 in Neoprene

Product Description

The BROWNING 1094119 is a non-cogged fractional horsepower (FHP) V-belt designed for light-duty power transmission applications in HVAC, refrigeration, and general mechanical equipment. Built to 3L section standards, it measures 3/8 inch in top width, 53 inches in outside length, and 7/32 inch in thickness. The belt is constructed from neoprene with cotton reinforcement, delivering reliable flex and heat resistance in demanding service environments. Its black, non-cogged profile suits standard sheave configurations where a smooth outer surface is required. Licensed HVAC technicians and mechanical service pros reach for this belt when servicing blower assemblies, fan drives, and small-motor drive systems.

This belt is suited for residential and light commercial HVAC systems, refrigeration units, and other equipment that uses 3L-section sheaves. It is a common replacement in single-belt fractional horsepower drive configurations found on evaporator fan motors, condenser fan assemblies, and small appliance motor drives. The 53-inch outside length and 3/8-inch top width must be matched to the existing sheave groove profile before installation.

Key Features

• 3L section profile with 3/8 inch top width for standard FHP sheave fitment
• 53 inch outside length suits a wide range of single-belt drive configurations
• Neoprene construction provides oil resistance and durability in varied service conditions
• Cotton reinforcement delivers tensile stability and consistent stretch resistance
• Rated to 140 degrees F continuous operating temperature
• Non-cogged design for use with standard smooth-groove sheaves

Compatibility

Designed as an OEM-style replacement for fractional horsepower drive systems using 3L-section V-belt sheaves with a 53 inch outside length requirement.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical service professional. De-energize and lock out the equipment before removing the old belt or handling the drive assembly. Never force a belt onto a sheave with a pry bar; loosen the motor mounting to relieve tension before seating the belt. After installation, verify proper tension and sheave alignment before returning the unit to service.

Technical Specifications

• Type: Non-Cogged
• Section Size: 3L
• Top Width: 3/8 inches
• Outside Length: 53 inches
• Thickness: 7/32 inches
• Number of Ribs: 1
• Temperature Rating: 140 degrees F
• Material: Neoprene
• Reinforcement Material: Cotton
• Color: Black

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1094119
