Browning 1094069 3L480 FHP V-Belts 3L Section 48 inch Length 47.3 Pitch 3/8 inch Top Width

Product Description

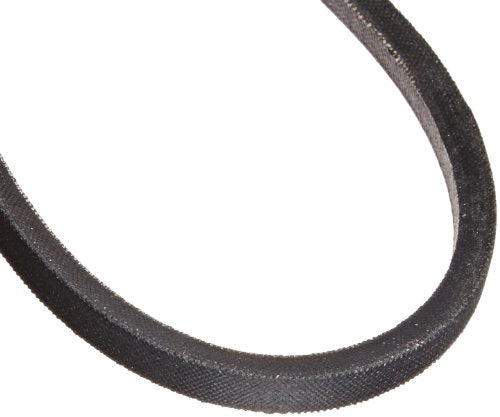

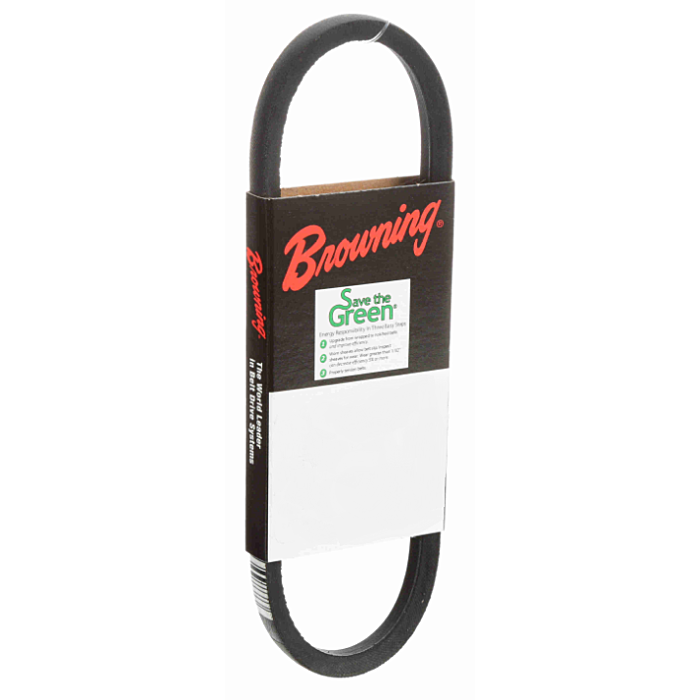

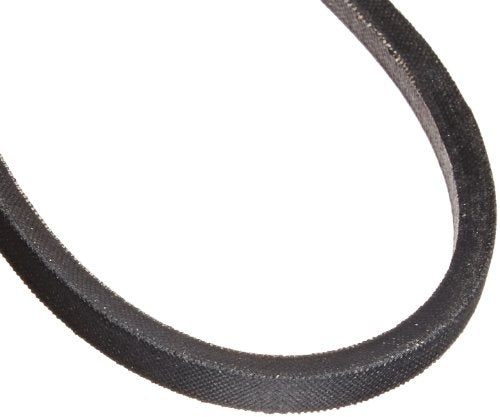

The Browning 1094069 3L480 V-Belt is a fractional horsepower (FHP) belt with a 48-inch outside length. This rubber FHP belt features a wrapped construction, providing smooth and quiet operation. It is designed for small sheave applications, offering maximum flexibility and increased tolerance to slipping and misalignment compared to raw edge belts. Key attributes include a 3L section and a 3/8 inch top width.

• Wrapped construction provides smooth, quiet operation.
• Formulated for maximum flexibility with smaller diameter sheaves.
• Oil and heat resistant, static conducting.

Product Highlights

This Browning 3L480 FHP V-Belt features a wrapped construction, 3L section, 3/8 inch top width, and 48 inch length, ideal for small sheave applications.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1094069
• Country of Origin: Mexico

Technical Specifications

• MPN: 1094069
• Model Number: 3L480
• Product Type: MECHANICAL_BELT
• Manufacturer: Regal
• Number of Items: 1
• Number of Strands: 1
• Top Width: 3/8 inch
• Belt Section: 3L
• Length: 48 inch
• Belt Type: V-Belt
• FHP Type: Yes
• Pitch Length: 47.3
• Material: Rubber
• Construction Type: Wrapped
• Belt Series: FHP Belts
• Section Size: L
• Standards Met: RMA
• Reinforcing Cord Material: Cotton
• Band Type: Belt with Ends Joined
• Overall Width: 0.375 in
• Max Operating Temperature Celsius: 60 °C
• Max Operating Temperature Fahrenheit: 140 °F
• Belt Style: 3L Smooth
• UPC: 662289185238
