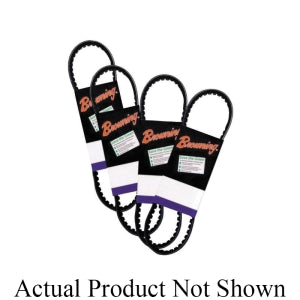

Browning 1094051 Fhp Belt 3L 3/8 in X 47 in Epdm Non-cogged

Product Description

The BROWNING 1094051 is a non-cogged fractional horsepower (FHP) V-belt designed for light-duty power transmission in small motor and fan drive applications. Built to the 3L section standard, it measures 3/8 inch wide at the top, 7/32 inch thick, and 47 inches in outside circumference. The belt is constructed from EPDM rubber with cotton reinforcement, giving it strong heat resistance rated to 230 degrees F. The black, non-cogged profile delivers smooth, quiet operation across a range of low-load drive systems commonly found in HVAC equipment and light mechanical assemblies.

This belt is suited for residential and light commercial applications where a 3L-section FHP belt is specified. Typical install scenarios include small blower drives, fan motors, appliance drives, and similar fractional horsepower belt-drive systems. The EPDM compound resists heat and environmental degradation, making it appropriate for equipment installed in mechanical rooms, attic spaces, or outdoor-adjacent enclosures where temperature variation is a factor. Technicians working on furnace blower assemblies, heat pumps, and small air handlers will encounter this belt size regularly.

Key Features

• 3L section profile — standard FHP belt sizing for fractional horsepower drives
• 3/8 inch top width and 7/32 inch thickness for precise sheave fit
• 47 inch outside length for accurate drive sizing
• EPDM construction rated to 230 degrees F for heat-resistant service
• Cotton-reinforced body for added tensile stability under load
• Non-cogged design provides smooth, low-vibration power transfer

Compatibility

Designed as an OEM-style replacement for fractional horsepower belt-drive systems requiring a 3L-section belt with a 47 inch outside length and 3/8 inch top width.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical service professional. Always disconnect and lock out power to the unit before removing or installing belts. Never pry or force a belt over a sheave — loosen the motor mount to relieve tension before removal, then set proper belt tension after seating the new belt. Verify sheave alignment before returning the unit to service to prevent premature wear.

Technical Specifications

• Belt Section: 3L
• Top Width: 3/8 inches
• Outside Length: 47 inches
• Thickness: 7/32 inches
• Number of Ribs: 1
• Max Temperature Rating: 230 degrees F
• Material: EPDM
• Reinforcement: Cotton
• Belt Type: Non-Cogged
• Color: Black

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1094051
