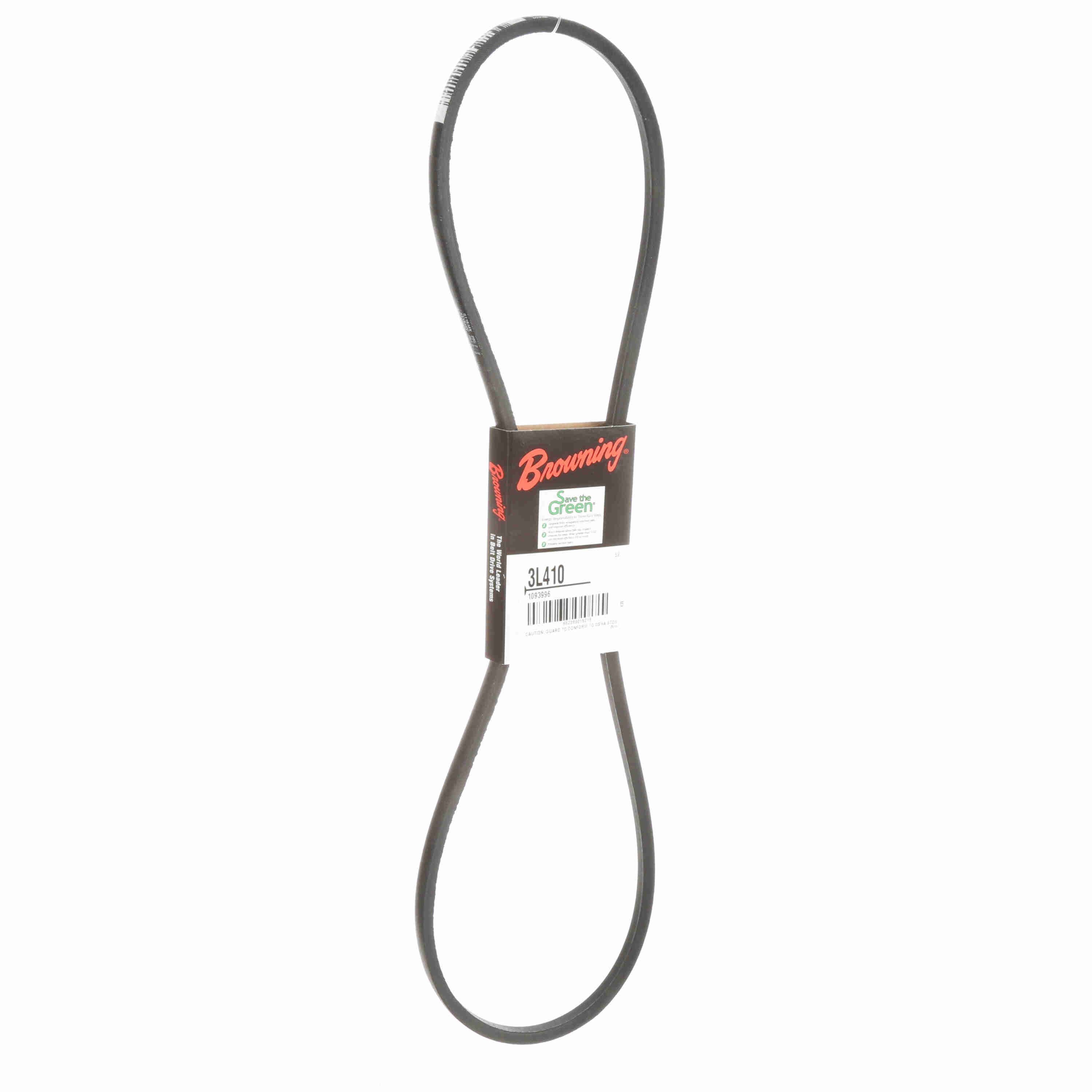

Browning 1093996 FHP V-Belts 3L Section, 41 inch Outside Length

Product Description

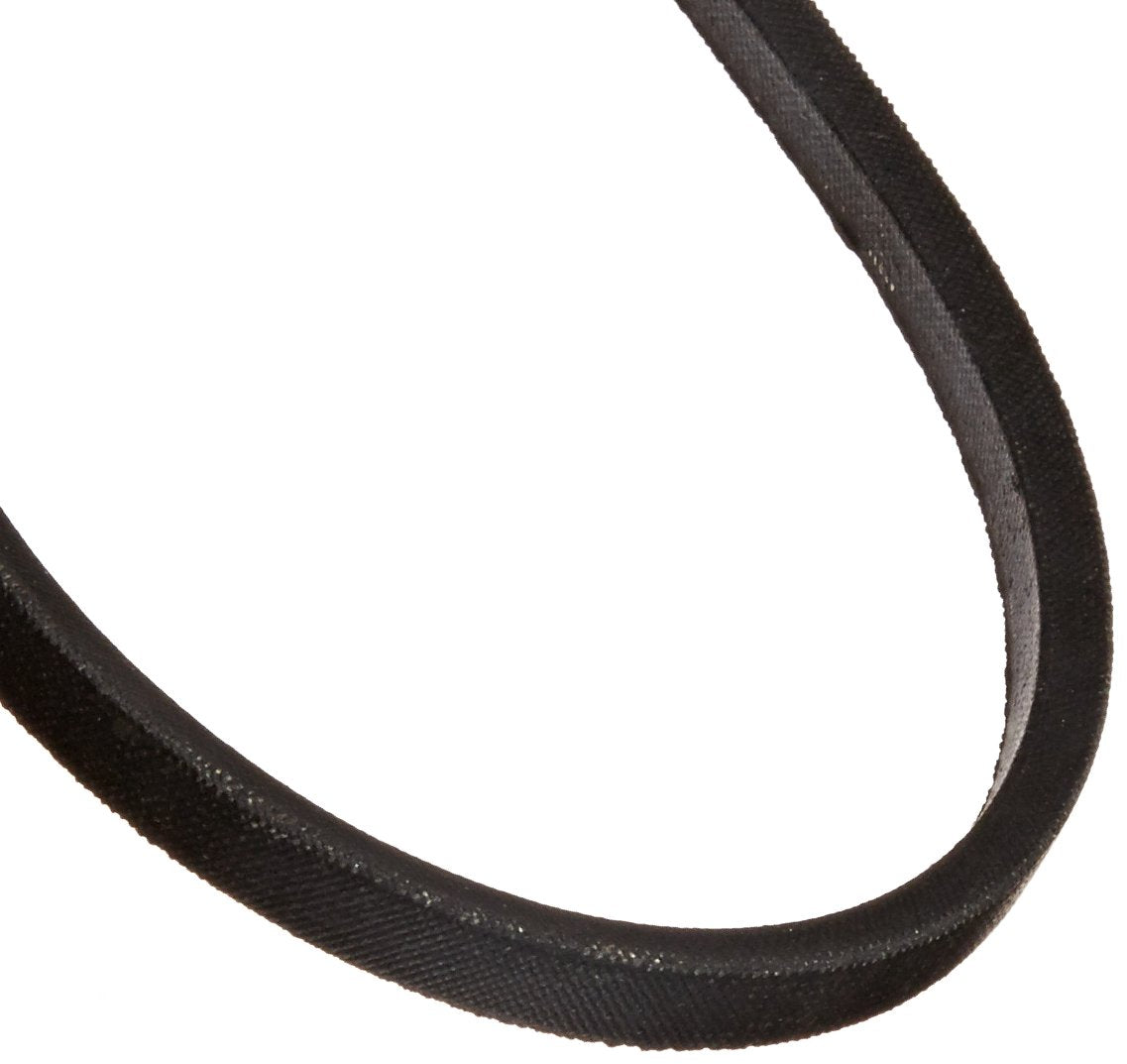

The Browning 1093996 is a 3L-section wrapped neoprene V-belt, designed for fractional horsepower (FHP) applications. It features a 41-inch outside length, a 3/8-inch top width, and a 4/25-inch thickness. This non-cogged belt is constructed from neoprene with a rubber outer material and cotton tensile material, operating effectively up to 140°F. It is suitable for light-duty industrial drives, including small fans, pumps, and lawn and garden equipment.

• Formulated for maximum flexibility with smaller diameter sheaves.
• Oil and heat resistant - static conducting.
• Wrapped construction provides smooth, quiet operation.

Product Highlights

Designed for smooth, quiet operation with maximum flexibility, offering oil and heat resistance and static conducting properties.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1093996
• Country of Origin: MEX

Technical Specifications

• Manufacturer: Regal
• Brand: Browning
• Model Number: 1093996
• Belt Industry Code: 3L410
• Belt Type: FHP Non-Cogged
• Belt Section: 3L
• Belt Width: 9/32 inch
• Thickness: 4/25 inch
• Top Width: 3/8 inch
• Outside Length: 41 inch
• Ribs: 1
• Operating Temperature: 140°F
• Material: Neoprene
• Application: Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Oil, Gas, Pulp, Paper, Unit Handling Industries
• Number of Bands: 1
• Outer Material: Rubber
• System of Measurement: Imperial
• Tensile Material: Cotton
• Cogged: No
• Pitch Length: 40.3
• Product Type: FHP Belt
• Surface: Smooth
