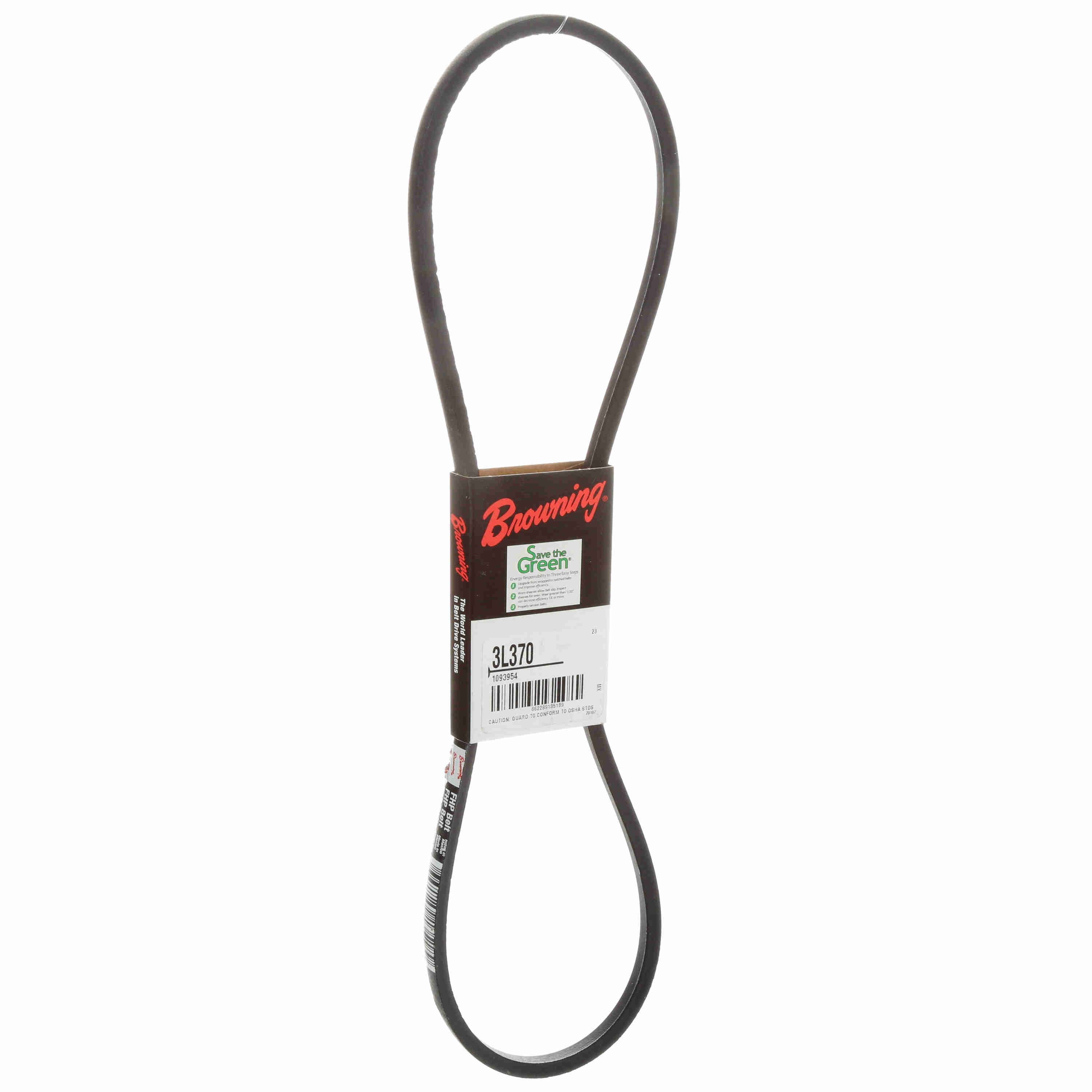

Browning 1093954 V-belt 3L370 FHP

Product Description

The Browning 1093954 is an FHP V-Belt with an outside length of 37 inches and a 3L section size. It is constructed from Neoprene with a rubber outer material and cotton tensile material. This non-cogged FHP type belt has a width of 3/8 inch and a thickness of 7/32 inch, designed to operate at temperatures up to 140°F. It features a single band and rib, and adheres to an imperial system of measurement. Its wrapped construction provides smooth, quiet operation and is formulated for maximum flexibility with smaller diameter sheaves.

• Wrapped construction provides smooth, quiet operation.
• Formulated for maximum flexibility with smaller diameter sheaves.
• Oil and heat resistant - static conducting.

Product Highlights

Wrapped construction for smooth, quiet operation, oil and heat resistance, and static conducting properties.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1093954
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: 3L370
• Belt Length: 37 inches
• Belt Style: L
• Belt Type: Standard V-Belt
• Material: Rubber
• Cross Section: 0.375 inches
• Construction Type: Wrapped
• Belt Section: 3L
• Pitch Length: 36.3 inches
• Operating Temperature Max: 140 °F (60 °C)
• Standards Met: RMA
• Outside Length: 37 inches
• Belt Series: FHP Belts
• Reinforcing Cord Material: Cotton
• Band Type: Belt with Ends Joined
• Number of Bands: 1
• Number of Ribs: 1
• System Of Measurement: Imperial
• Product Type: FHP V-Belt
• Cogged: No
• Belt Thickness: 7/32 inches
