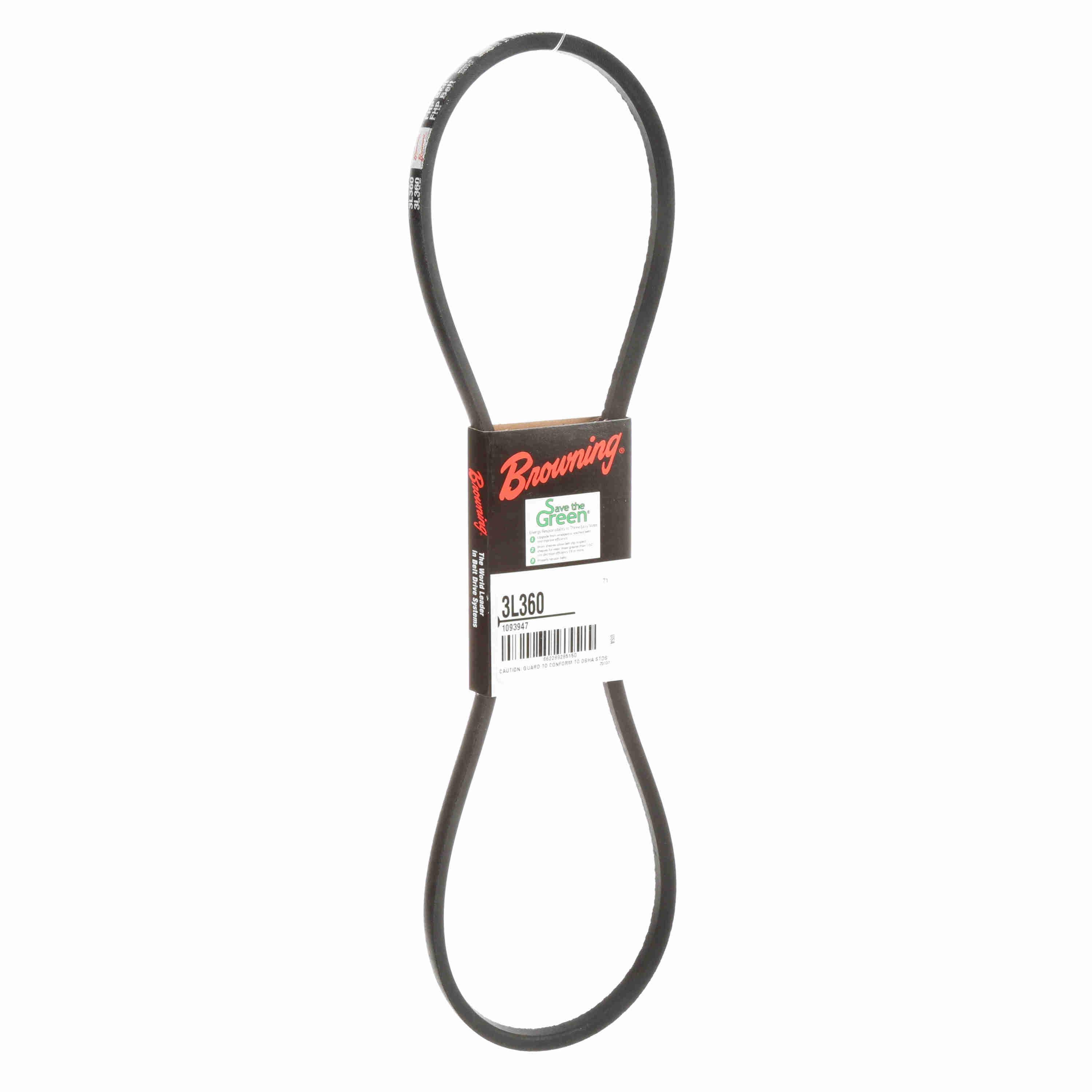

Browning 1093947 Fhp V-belt 3L 36 in Neoprene Non-cogged

Product Description

The BROWNING 1093947 is a fractional horsepower (FHP) V-belt designed for light-duty drive applications in HVAC, refrigeration, and general mechanical equipment. Built to a 3L cross-section profile, it measures 36 inches in outside length, 3/8 inch in top width, and 7/32 inch in thickness. The belt body is constructed from neoprene with a rubber outer layer and a cotton tensile cord, combining flexibility with reliable tension retention. It is a single-band, non-cogged design rated for operating temperatures up to 140 degrees F. HVAC technicians and mechanical service professionals install this belt as a direct replacement on blower and fan drive assemblies where 3L-section belts are specified.

This belt is suited for residential and light commercial HVAC systems, small air handlers, evaporative coolers, and other fractional horsepower motor-driven equipment that uses a 3L-section sheave. Its 36-inch outside length and standard 3/8-inch top width allow it to fit sheave configurations that call for a 3L360 belt designation. It is sold as a single belt and is intended for applications operating on imperial-measurement drive systems.

Key Features

• 3L cross-section profile with 36-inch outside length fits standard 3L360-designated drives
• Neoprene body construction resists heat, oil, and moderate environmental exposure
• Cotton tensile cord provides consistent tension and dimensional stability
• Non-cogged design for smooth, quiet operation on fractional horsepower drives
• Rated for continuous operation up to 140 degrees F
• Single-band configuration for direct sheave replacement

Compatibility

Designed as an OEM-style replacement for fractional horsepower drive systems requiring a 3L-section V-belt with a 36-inch outside length and 3/8-inch top width.

Installation Notes

Belt replacement on FHP drives is typically performed by HVAC technicians or mechanical service professionals. Always de-energize the unit and lock out the power source before removing the belt guard or accessing the drive assembly. Adjust sheave center distance to allow belt installation without forcing the belt over the sheave flanges, then tension according to the equipment manufacturer's deflection specification. Inspect sheave grooves for wear or misalignment before installing a new belt.

Technical Specifications

• Belt Type: FHP Non-Cogged V-Belt
• Cross Section: 3L
• Outside Length: 36 inches
• Top Width: 0.375 inches
• Thickness: 0.219 inches
• Number of Bands: 1
• Number of Ribs: 1
• Body Material: Neoprene
• Outer Material: Rubber
• Tensile Material: Cotton
• Maximum Operating Temperature: 140 degrees F
• System of Measurement: Imperial

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1093947
