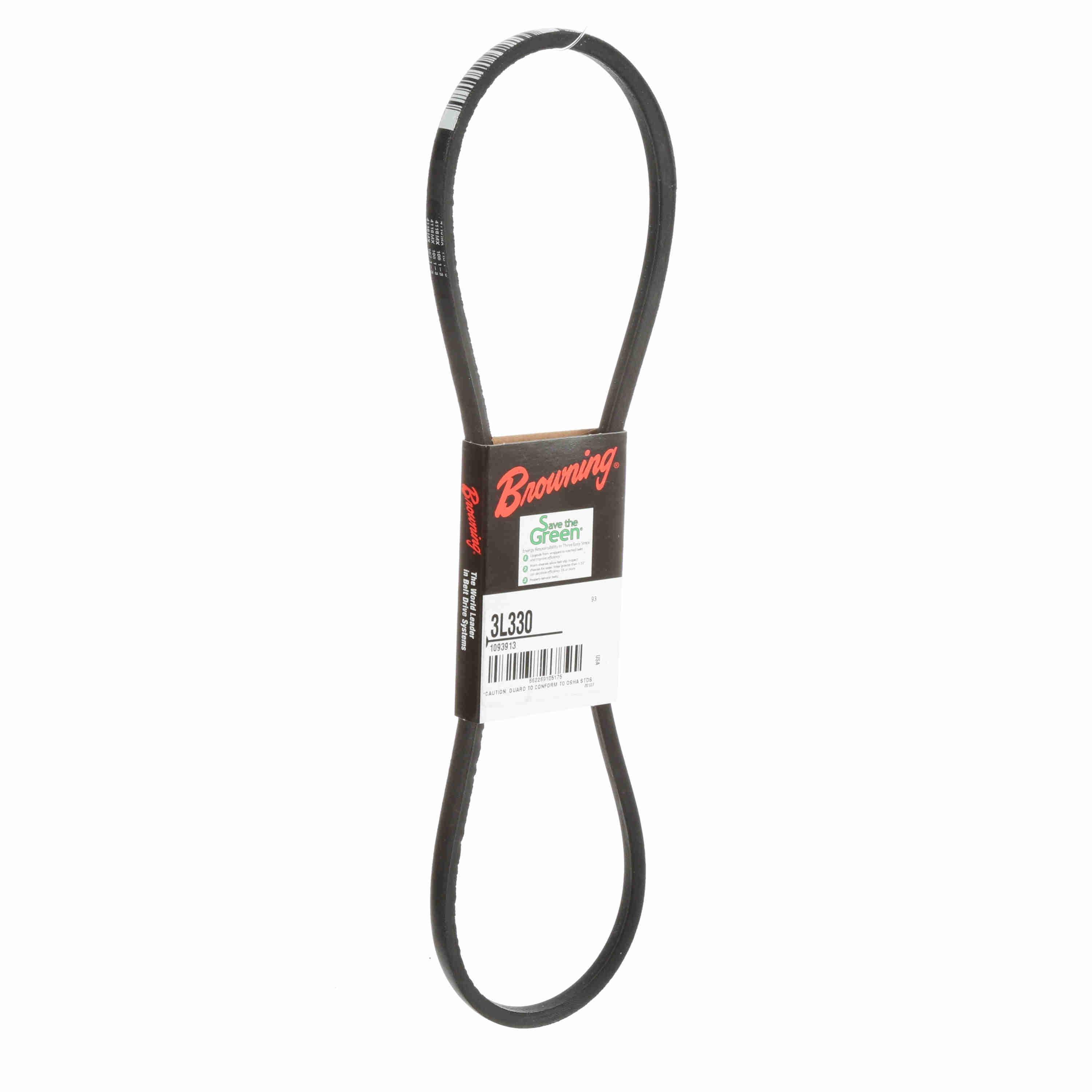

Browning 1093913 V-Belt FHP 3L330 33 inch outside length 3/8 inch top width 7/32 inch depth

Product Description

The Browning 1093913 V-Belt is an FHP belt designed for smooth, quiet operation. It features a wrapped construction, formulated for maximum flexibility, making it suitable for smaller diameter sheaves. This belt is oil and heat resistant, and static conducting. It has a 33-inch outside length, a 3/8-inch top width, and a 7/32-inch depth, with a 3L cross-section. Constructed from rubber, it is suitable for light-duty drives and operates up to 230°F.

• Wrapped construction provides smooth, quiet operation.
• Formulated for maximum flexibility with smaller diameter sheaves.
• Oil and heat resistant - static conducting.

Product Highlights

This Browning FHP V-Belt offers smooth, quiet operation, maximum flexibility for small sheaves, and is resistant to oil and heat.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1093913
• Country of Origin: US

Technical Specifications

• Belt Industry Code: 3L330
• Outside Length: 33"
• Belt Style: L
• Belt Thickness: 4/25"
• Belt Type: Standard V-Belt
• Belt Width: 9/32"
• Product Item Type: FHP V-Belt
• Top Width: 3/8"
• Cross Section: 3L
• Number of Bands: 1
• Number of Ribs: 1
• Operating Temperature: 230°F
• Outer Material: Rubber
• System Of Measurement: Imperial
• Tensile Material: Cotton
• Belt Construction: Non-Cogged Fractional Horsepower Belt
• Standard/Approvals: RMA Standard
• Application: Aggregate and Cement, Agriculture, HVAC, Minerals and Mining, Oil and Gas, Pulp and Paper and Unit Handling
• Cogged: No
• Pitch Length: 32.3
