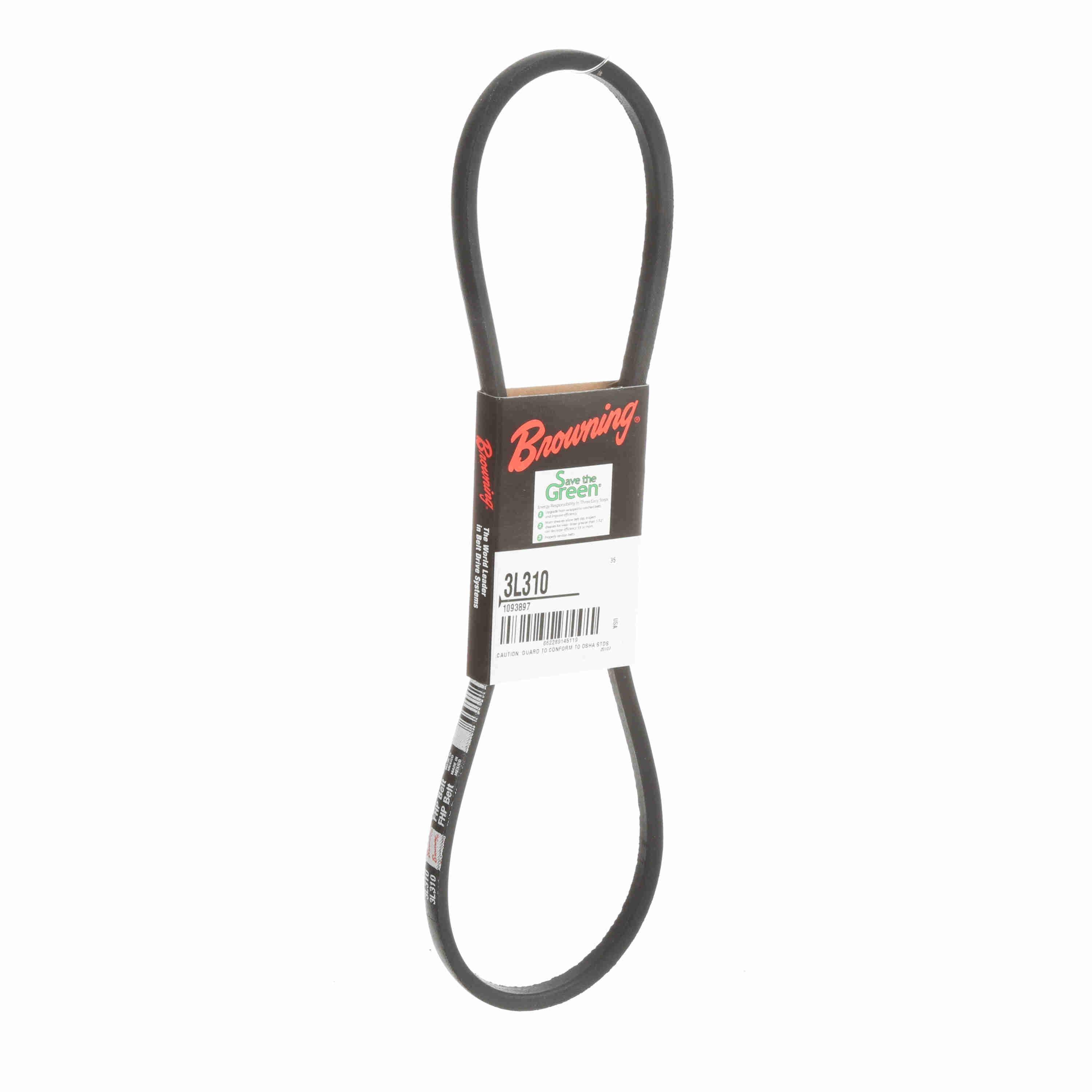

Browning 1093897 V-Belt FHP 3L310 31 inch 3/8 inch

Product Description

The BROWNING 1093897 V-Belt is a Standard V-Belt with a 3L310 industry code, designed for Fractional Horsepower (FHP) applications. It features a wrapped construction for smooth, quiet operation and is formulated for maximum flexibility, making it suitable for smaller diameter sheaves. This 31-inch belt has a 3/8-inch top width and is oil and heat resistant, as well as static conducting.

• Wrapped construction provides smooth, quiet operation.
• Formulated for maximum flexibility with smaller diameter sheaves.
• Oil and heat resistant - static conducting.

Product Highlights

This FHP V-Belt offers smooth operation, flexibility for small sheaves, and resistance to oil and heat.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1093897
• Country of Origin: MEX

Technical Specifications

• Belt Industry Code: 3L310
• Belt Length: 31 inch
• Belt Style: L
• Belt Type: Standard V-Belt
• Type: FHP Non-Cogged
• Section Size: 3L
• Top Width: 3/8 inch
• Thickness: 7/32 inch
• Number of Ribs: 1
• Operating Temperature Range: -32 to +140 °F
• Material: Neoprene
• Outer Material: Rubber
• Number of Bands: 1
• System Of Measurement: Imperial
• Surface: Smooth
• Pitch Length: 30.3
• Standards Met: ARPM IP-23
• Reinforcing Cord Material: Polyester
• Belt Series: FHP Belts
• Construction Type: Wrapped
• Product Type: FHP V-Belt
• Resistance Features: Oil & Chemical per ARPM IP-3-2, Static Dissipating per ARPM IP-3-3
