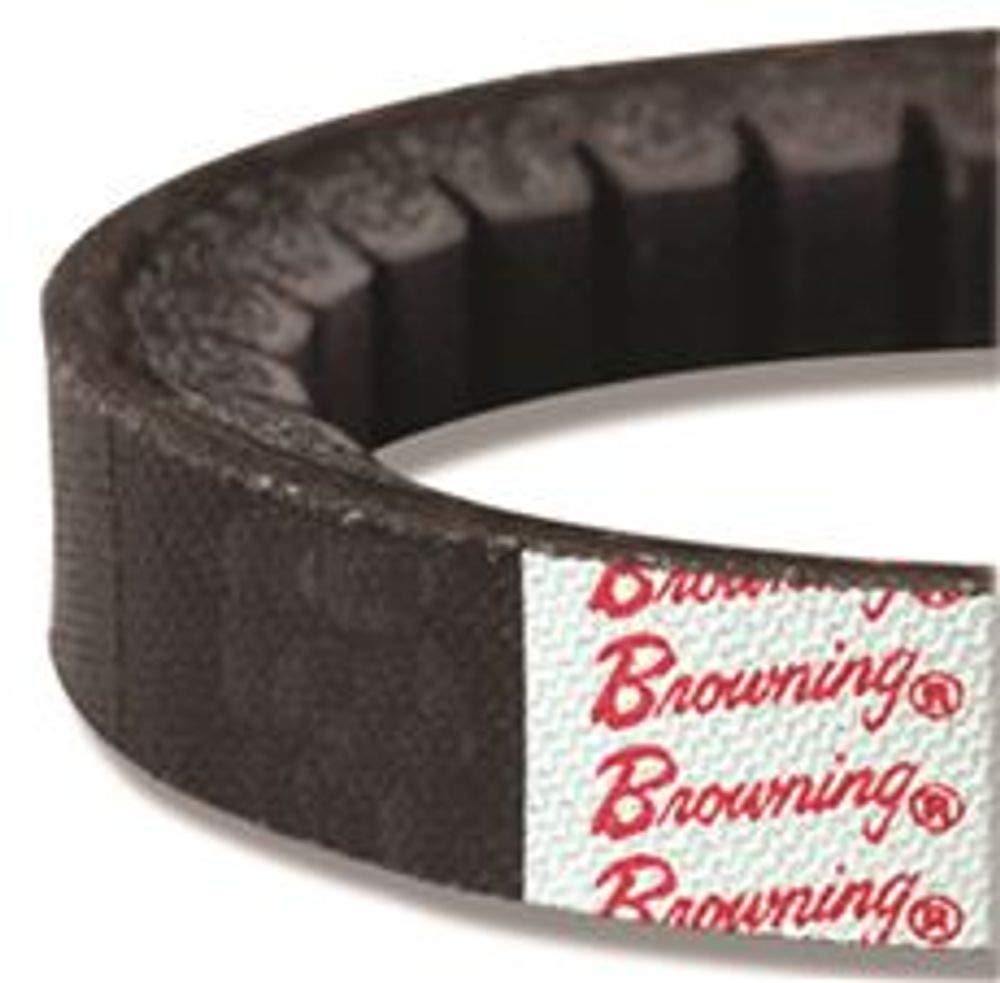

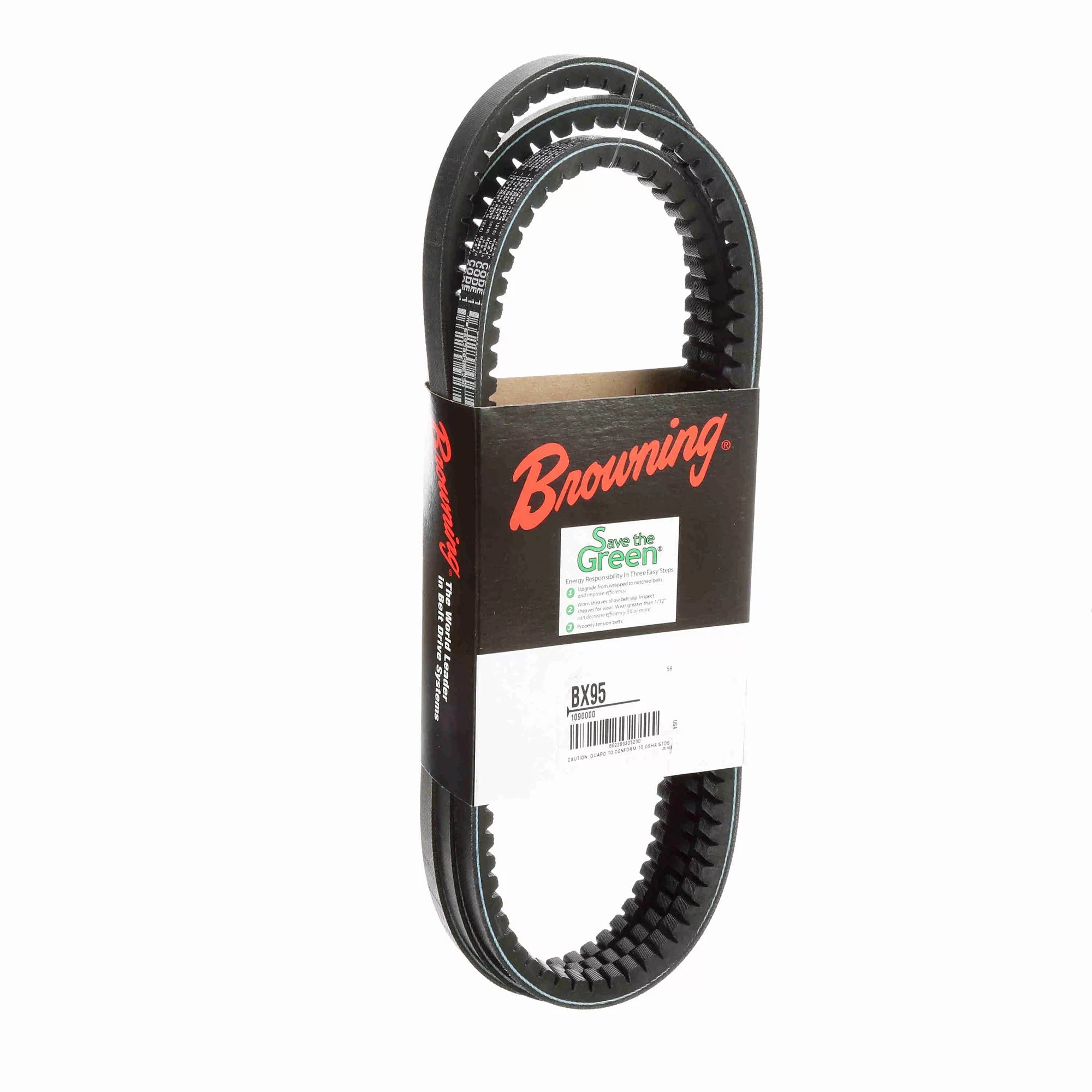

Browning 1090000 BX95 Gripnotch Belt, BX Belt Section, 96.8 Inches Pitch Length, Replacement 1090000

Product Description

The Browning BX95 Gripnotch Belt, part number 1090000, is engineered for robust performance and durability. This belt is designed to work efficiently with fans, blowers, pumps, conveyors, and mixers, making it an essential component in various industrial applications.

• Optimized for reduced vibration, thus extending the life of both belt and bearings.
• Features raw edge sidewalls for enhanced grip and flexibility.
• Constructed with ground form sidewalls for increased stability and reduced stress on the cord line.

Product Highlights

Made with a unique notch spacing that improves the rigidity and operational stability. It also includes a top and bottom fabric design which significantly enhances durability and performance.

Product Information

Standard Information

• Brand: Browning
• Model: BX95
• Type: Cogged V-Belt
• Size: BX Belt Section
• Material: EPDM

Technical Specifications

• Belt Length: 96.8 inches
• Belt Width: 21/32 inches
• Belt Thickness: 13/32 inches
• Weight: 0.83 pounds
• Operating Temperature Range: -60°F to +230°F
• Static Conductivity: Yes
• Prop 65 Compliance: Yes
• Cubic Measurement: 0.093
