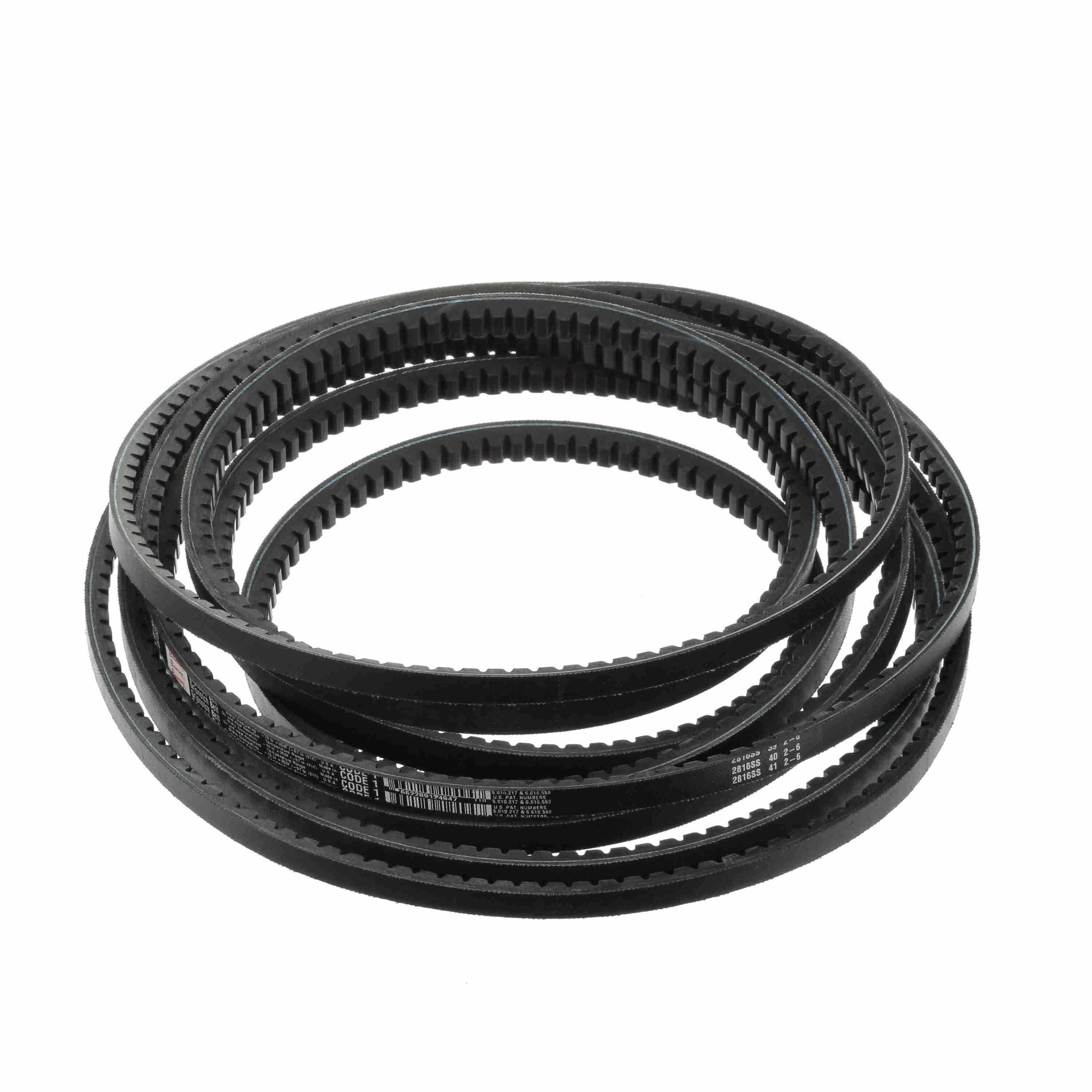

Browning 1089630 AX120 V-Belt, Notched, 98% Efficient, EPDM, Cogged 122.2 in OAL, AX Section Size

Product Description

The BROWNING 1089630 AX120 V-Belt is a cogged, notched V-belt designed for efficient power transmission. Constructed from EPDM with a polyester tensile material and nylon reinforcement, it offers a 98% efficiency rating. This imperial measurement V-belt has a 1/2 inch top width, 5/16 inch thickness, and an outside length of 122.2 inches, suitable for operating temperatures up to 250°F.

• Notched design for enhanced flexibility and grip.
• 98% efficiency for optimal power transfer.
• EPDM construction for durability and temperature resistance.

Product Highlights

Durable cogged V-belt for efficient power transfer in demanding industrial applications.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1089630
• Country of Origin: US

Technical Specifications

• Product Type: V-Belt
• Belt Width: 1/2 inch
• Cross Section: AX
• Number of Bands: 1
• Number of Ribs: 1
• Operating Temperature: 250°F
• Outer Material: Rubber
• Outside Length: 122.2 inches
• Reinforced Material: Nylon
• Measurement System: Imperial
• Tensile Material: Polyester
• Thickness: 5/16 inch
• Top Width: 1/2 inch
• Style: Cogged
• Manufacturer: Browning
• Model: AX120
• Pitch: 121.3 inches
• Belt Series: 4LX
