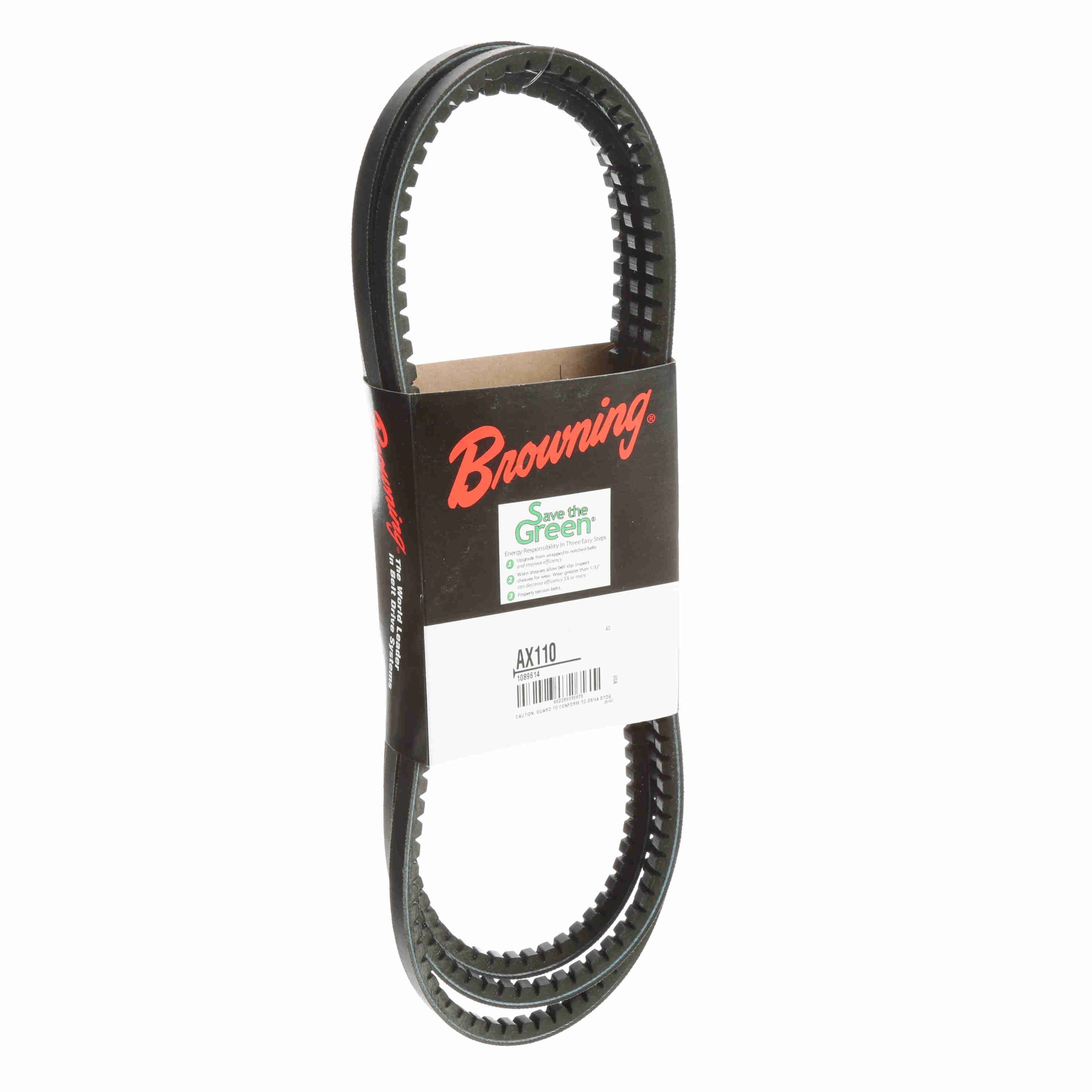

Browning 1089614 AX110 V-Belt 112.2 inches

Product Description

This Browning 1089614 V-Belt is a notched, cogged AX section belt designed for high efficiency, rated at 98%. Constructed from EPDM rubber with nylon reinforcement and polyester tensile material, it has an outside length of 112.2 inches. With a 1/2 inch belt width and top width, and a 5/16 inch thickness, it operates effectively up to 250°F, ensuring optimal power transmission in various applications.

• Notched design for flexibility and improved performance
• 98% efficiency for optimal power transmission
• EPDM construction for durability and temperature resistance

Product Highlights

High-efficiency cogged V-belt with EPDM construction for demanding applications.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1089614
• Country of Origin: US

Technical Specifications

• Belt Type: V-Belt
• Belt Width: 1/2 inch
• Cross Section: AX
• Number of Bands: 1
• Number of Ribs: 1
• Operating Temperature: 250°F
• Outer Material: EPDM Rubber
• Outside Length: 112.2 inches
• Reinforced Material: Nylon
• Tensile Material: Polyester
• Thickness: 5/16 inch
• Top Width: 1/2 inch
• Design Type: Cogged
