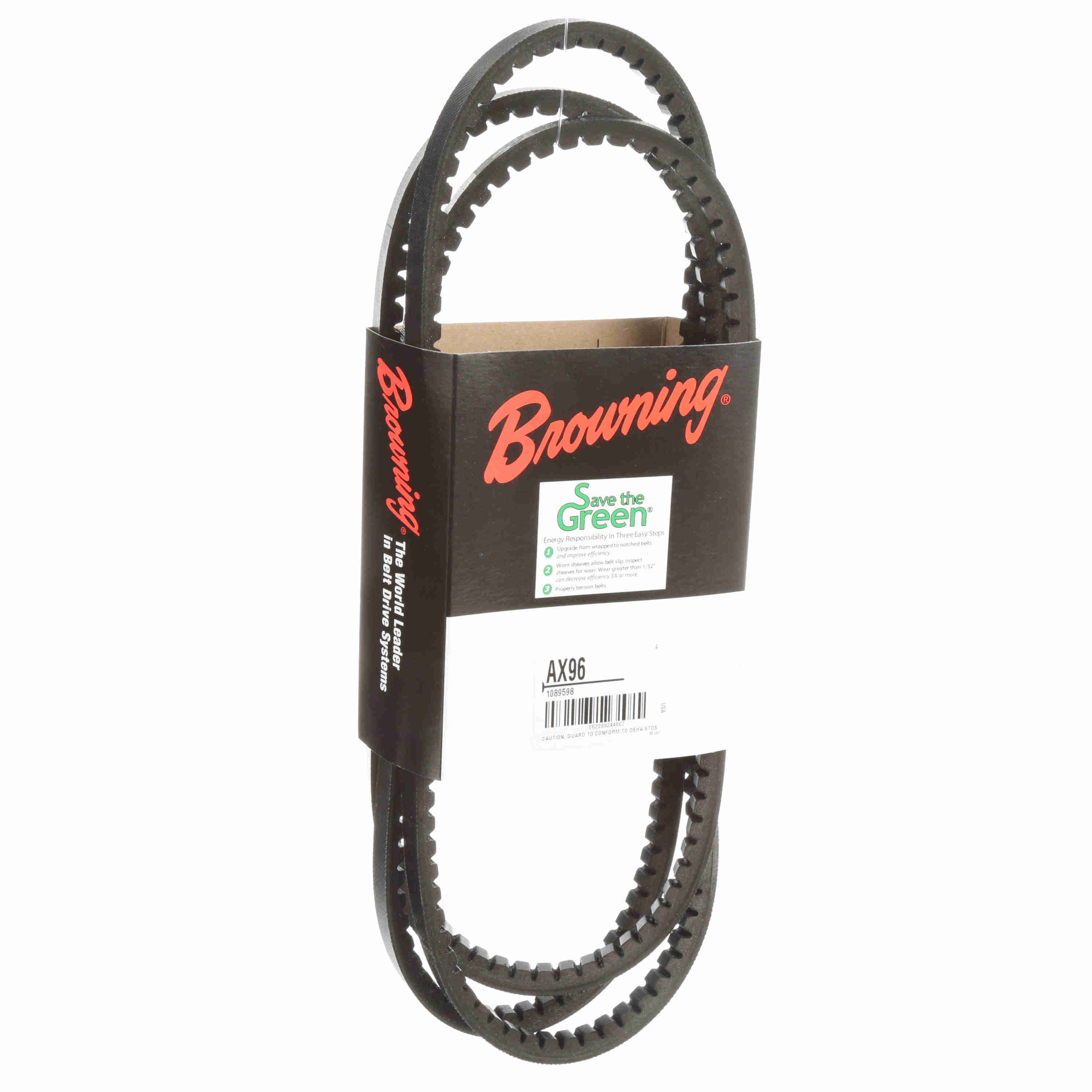

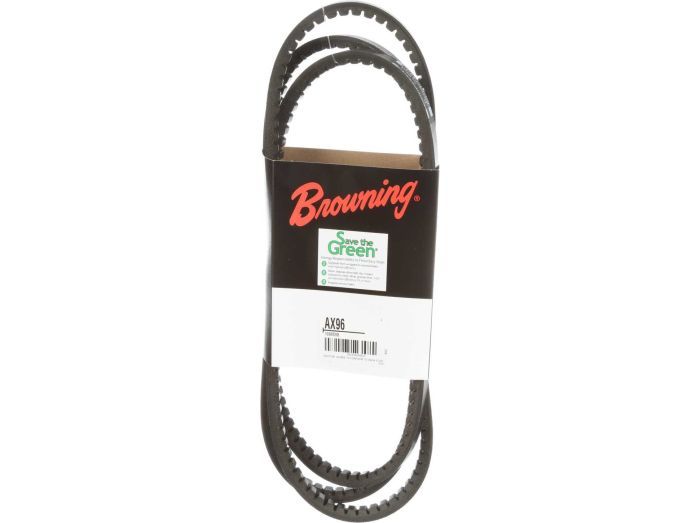

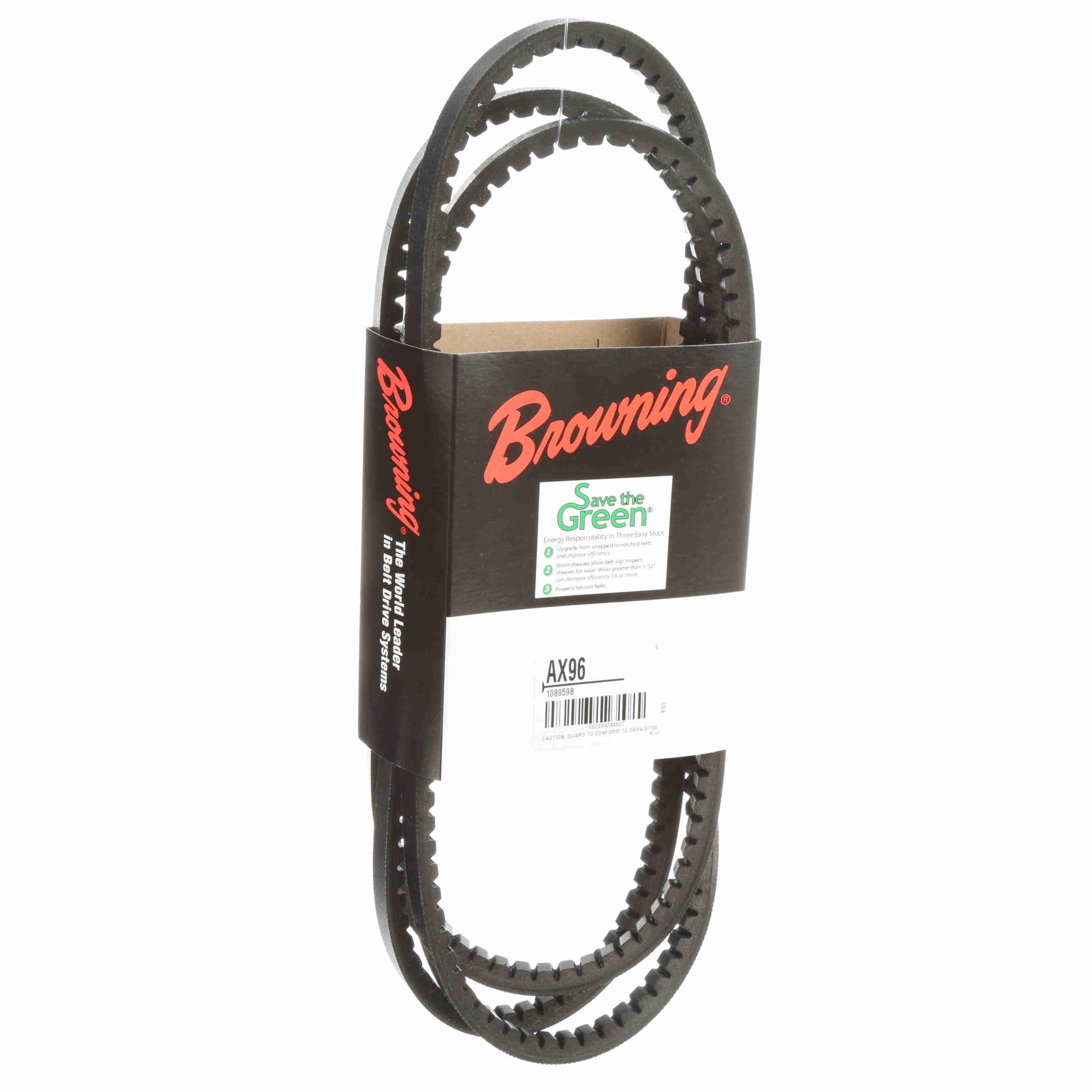

Browning 1089598 V-Belt Notched Cogged AX Section 98 1/5 in OAL 1/2 in W 5/16 in THK

Product Description

The BROWNING 1089598 V-Belt is a notched, cogged belt designed for efficient power transmission. Constructed from EPDM material with nylon reinforced and polyester tensile materials, it offers 98% efficiency. This AX section V-belt has an outside length of 98 1/5 inches, a top width of 1/2 inch, and a thickness of 5/16 inch. It is suitable for applications requiring reliable operation up to 230 degrees Fahrenheit.

• Notched and cogged design for 98% efficiency in power transmission.
• Constructed from EPDM material with nylon reinforcement for durability.
• Features an AX section, 98 1/5 inch outside length, and 230°F operating temperature.

Product Highlights

Efficient EPDM cogged V-belt with notched design, AX section, 98 1/5 inch OAL, and 230°F temperature range.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1089598
• Country of Origin: US

Technical Specifications

• Item Type: V-Belt
• Top Width: 1/2"
• Section Size: AX
• Number of Bands: 1
• Number of Ribs: 1
• Operating Temperature: 230°F
• Outside Length: 98 1/5"
• Reinforced Material: Nylon
• System of Measurement: Imperial
• Tensile Material: Polyester
• Thickness: 5/16"
• Type: Cogged
• Material: EPDM
• Belt Pitch: 97.3
