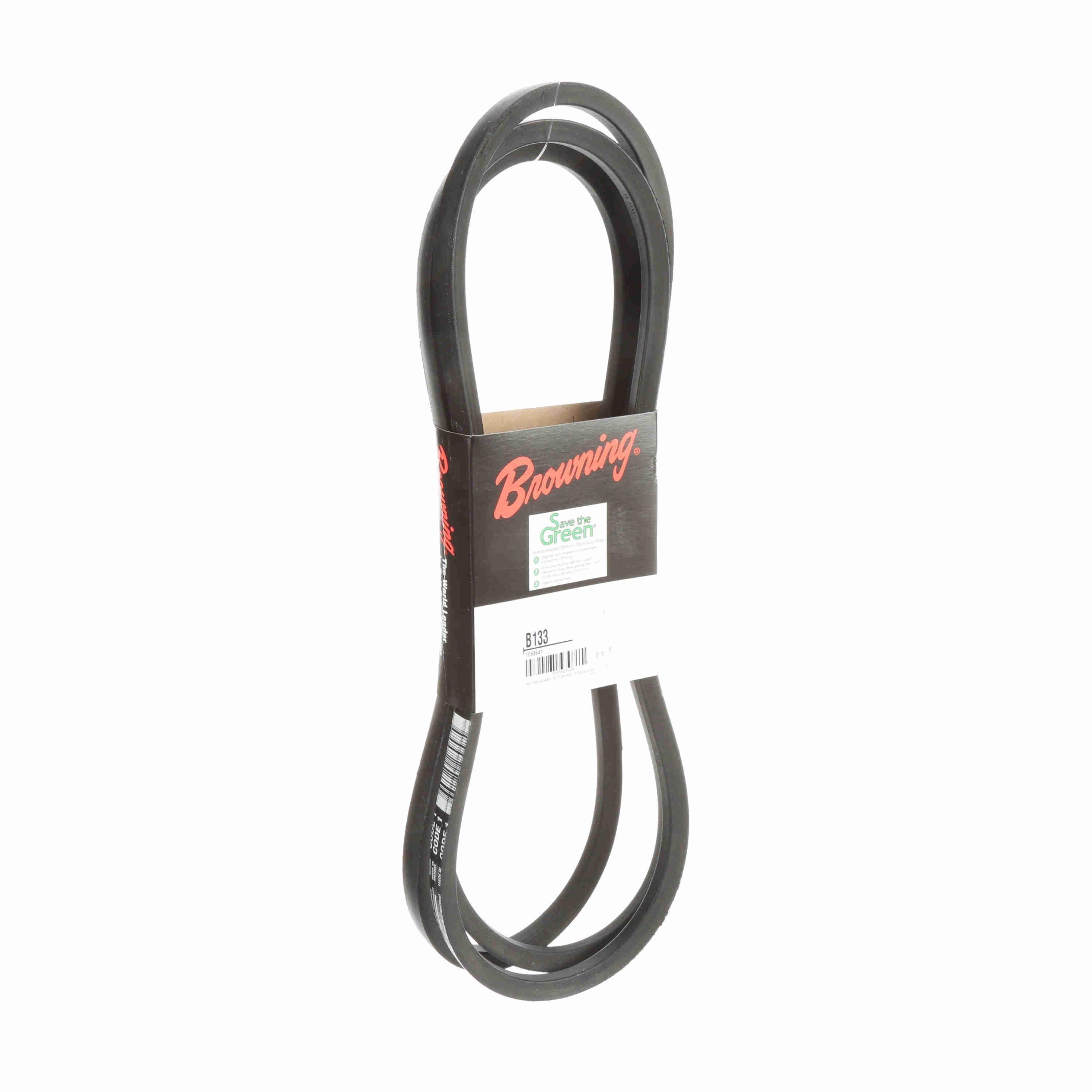

Browning 1083641 V-Belt B133 Gripbelt 21/32 inches X 136 inches

Product Description

The Browning 1083641 V-Belt B133 Gripbelt is a standard V-belt designed for enhanced performance in power transmission systems. Its unique design increases horsepower capacity in shorter center drives. The single fabric construction offers flexibility, allowing use with sub-minimum pitch diameter sheaves to reduce drive costs. This belt features reduced overlap for lower vibration and noise, and high-strength synthetic fiber cords to minimize stretching. It is suitable for applications such as fans, blowers, ventilation units, pumps, conveyors, and mixers.

• Unique design enhances performance and increases horsepower capacity in shorter center drives.
• Single fabric design provides flexibility for use with sub-minimum pitch diameter sheaves.
• Reduced overlap minimizes vibration and noise during operation.

Product Highlights

Features a Super Gripbelt design for efficient power transmission and reduced operational noise.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1083641
• Country of Origin: Mexico

Technical Specifications

• Model: B133
• Outside Length: 136 in
• Section Size: B
• Belt Type: Non-Cogged V-Belt
• Top Width: 21/32 in
• Belt Thickness: 7/16 in
• Belt Material: Neoprene, Synthetic Fiber Reinforced
• Standards: RMA Standard
• Number of Ribs: 1
• Operating Temperature: 140 deg F
• Measurement System: Imperial
• Tensile Cord Material: Polyester
