Browning 1083542 B99 Gripbelt 102

Product Description

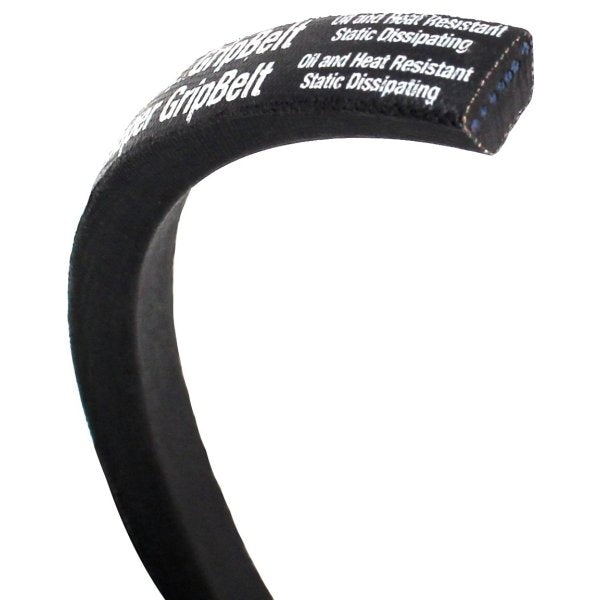

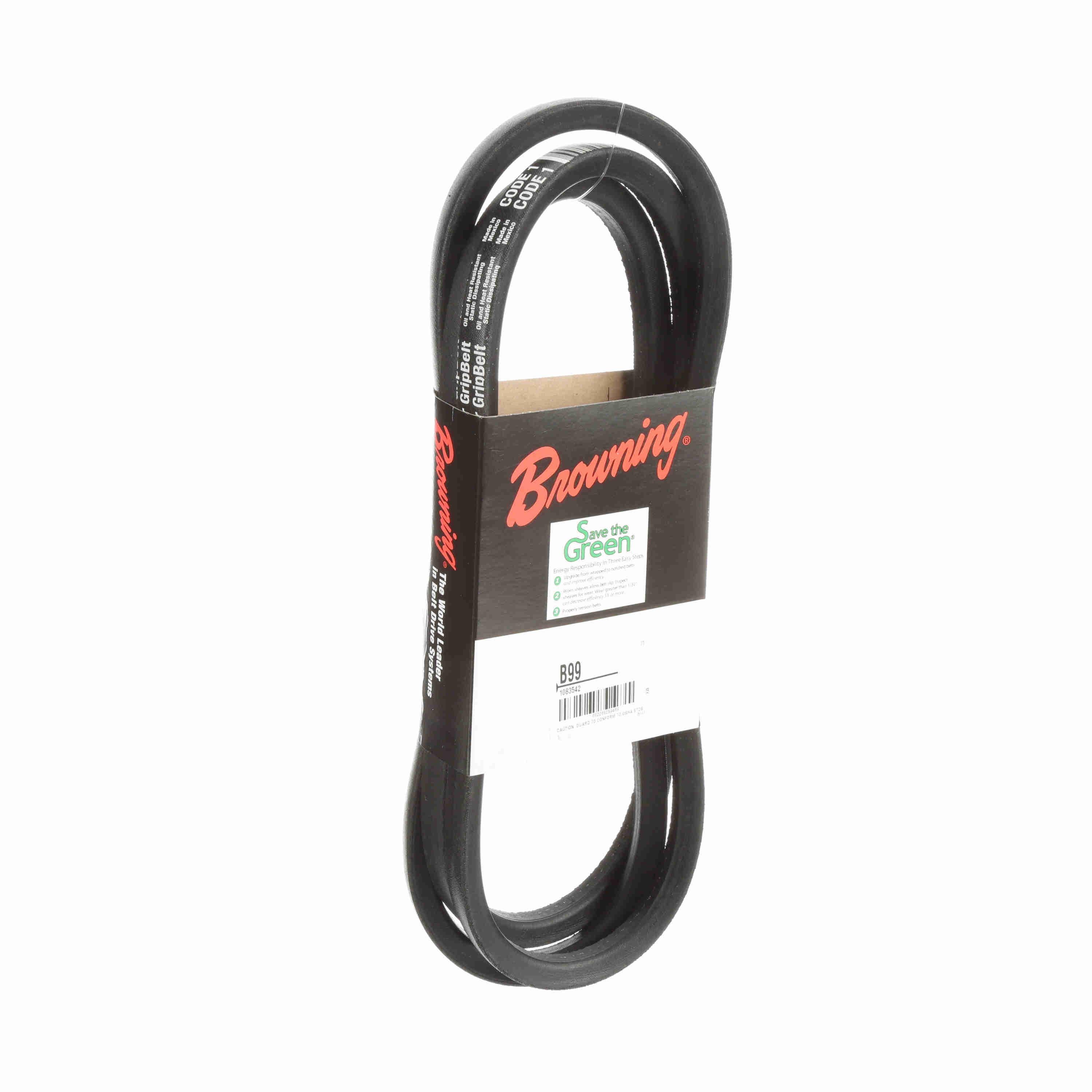

The BROWNING 1083542 V-Belt is a Standard V-Belt, also known as the B99 Gripbelt, engineered for power transmission in diverse industrial applications. With a length of 102 inches and a top width of 21/32 inches, this belt is suitable for fans, blowers, ventilation units, agricultural blower units, pumps, conveyors, and mixers. Its robust construction ensures efficient operation and durability in demanding environments.

• Unique design enhances performance and provides increased horsepower capacity in a shorter center drive.
• Single fabric design allows for greater flexibility and use with sub-min pitch diameter sheaves to reduce drive cost.
• Reduced overlap provides lower vibration and reduced noise during operation.

Product Highlights

High strength, synthetic fiber cords carry the horsepower load and minimize stretching, ensuring a one-match belt system for equal load distribution.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1083542
• Country of Origin: Mexico

Technical Specifications

• Industry Part #: B99
• Length: 102"
• Cross Section: B
• Belt Type: Standard V-Belt
• Top Width: 21/32"
• Material: Neoprene
• Number Of Bands: 1
• Number Of Ribs: 1
• Operating Temperature: 140°F
• Outer Material: Rubber
• Reinforced Material: Synthetic Fiber
• Measurement System: Imperial
• Tensile Material: Polyester
• Thickness: 7/16"
• Construction Type: Non-Cogged
