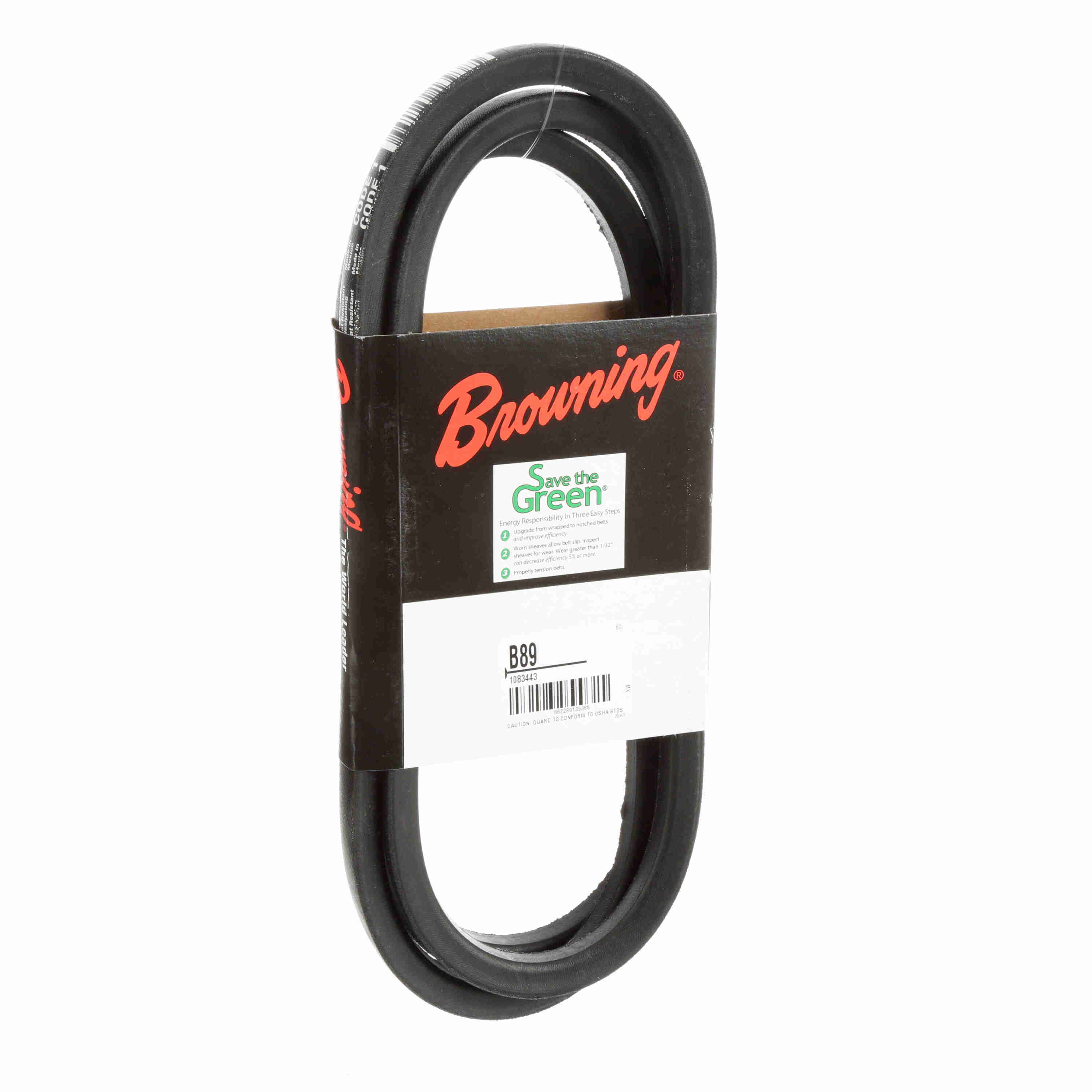

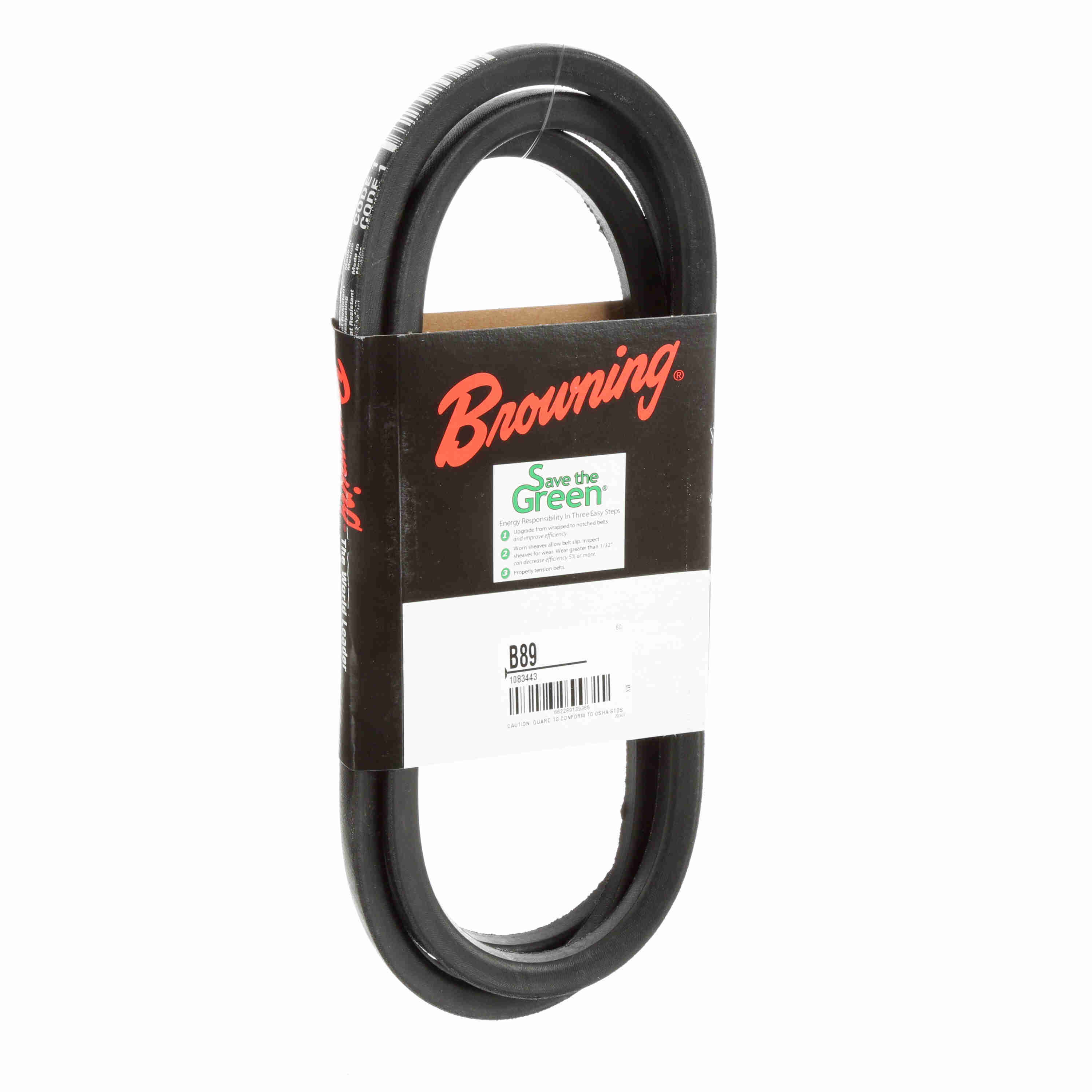

Browning 1083443 v-belt b89 gripbelt b section 92 length

Product Description

The Browning 1083443 V-Belt is a B89 Super Gripbelt designed for power transmission in various industrial applications such as fans, blowers, pumps, and conveyors. This standard V-belt features a B section, an outside length of 92 inches, and a top width of 21/32 inches. Its wrapped construction provides smooth, quiet operation and enhanced flexibility.

• Unique design enhances performance and provides increased horsepower capacity in a shorter center drive.
• Single fabric design allows for greater flexibility and use with sub-minimum pitch diameter sheaves.
• Reduced overlap provides lower vibration and reduced noise during operation.

Product Highlights

Super Gripbelt V-Belt with wrapped construction for smooth, quiet operation and enhanced flexibility.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1083443
• Country of Origin: Mexico

Technical Specifications

• Product Type: V-Belt
• Series: Super Gripbelt
• Belt Industry Code: B89
• Belt Style: B
• Belt Length: 92 in
• Belt Width: 69/100 in
• Top Width: 21/32 in
• Thickness: 7/16 in
• Material: Neoprene
• Reinforced Material: Synthetic Fiber
• Construction: Wrapped
• Type: Non-Cogged
• Number of Ribs: 1
• Operating Temperature: 230°F
• Pitch Length: 90.8 in
• Surface: Smooth
• Tensile Material: Polyester
