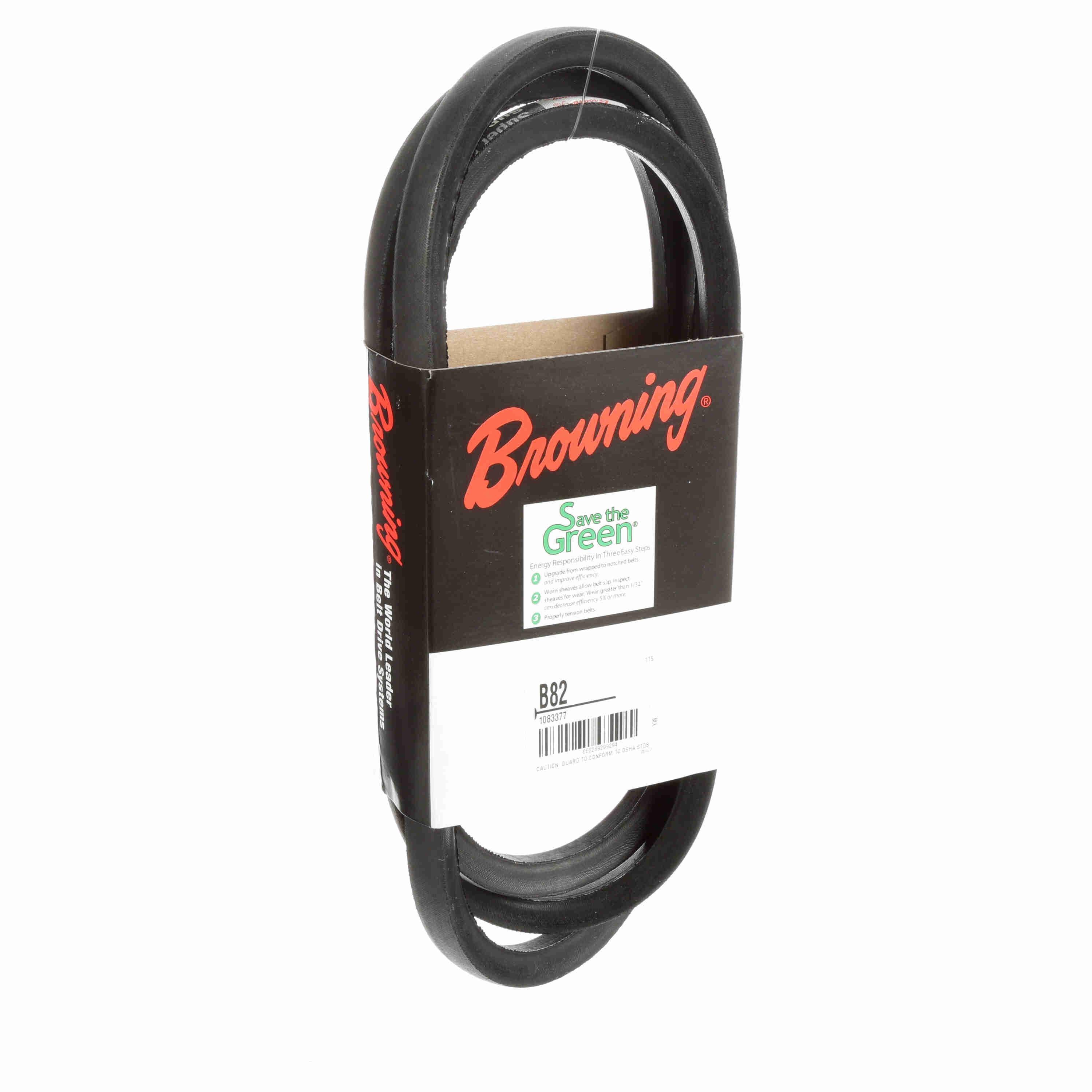

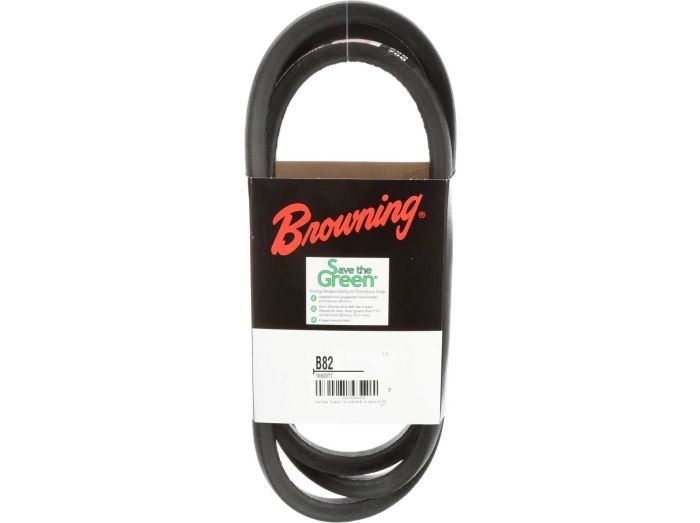

Browning 1083377 V-Belt B82 Gripbelt 85 Inch Outside Length B Section

Product Description

The Browning 1083377 V-Belt B82 Gripbelt is a standard, non-cogged V-belt with an 85-inch outside length and a B section size. Constructed from durable neoprene with synthetic fiber reinforcement, this belt is designed for enhanced performance and increased horsepower capacity in shorter center drives. It is suitable for applications such as fans, blowers, pumps, and conveyors, operating efficiently with reduced vibration and noise.

• Unique design enhances performance and provides increased horsepower capacity in a shorter center drive.
• Single fabric design allows for greater flexibility and use with sub-min pitch diameter sheaves, reducing drive cost.
• High strength, synthetic fiber cords carry the horsepower load and minimize stretching.

Product Highlights

Durable neoprene V-belt with synthetic fiber reinforcement, optimized for high performance and reduced vibration in various industrial applications.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1083377
• Country of Origin: Mexico

Technical Specifications

• Belt Industry Code: B82
• Belt Length: 85 Inches
• Belt Style: B
• Belt Type: Standard V-Belt
• Belt Width: 21/32 Inches
• Material: Neoprene
• Number of Ribs: 1
• Operating Temperature: 230°F
• Reinforced Material: Synthetic Fiber
• Thickness: 7/16 Inches
• Type: Non-Cogged
• Belt Pinch: 83.8
