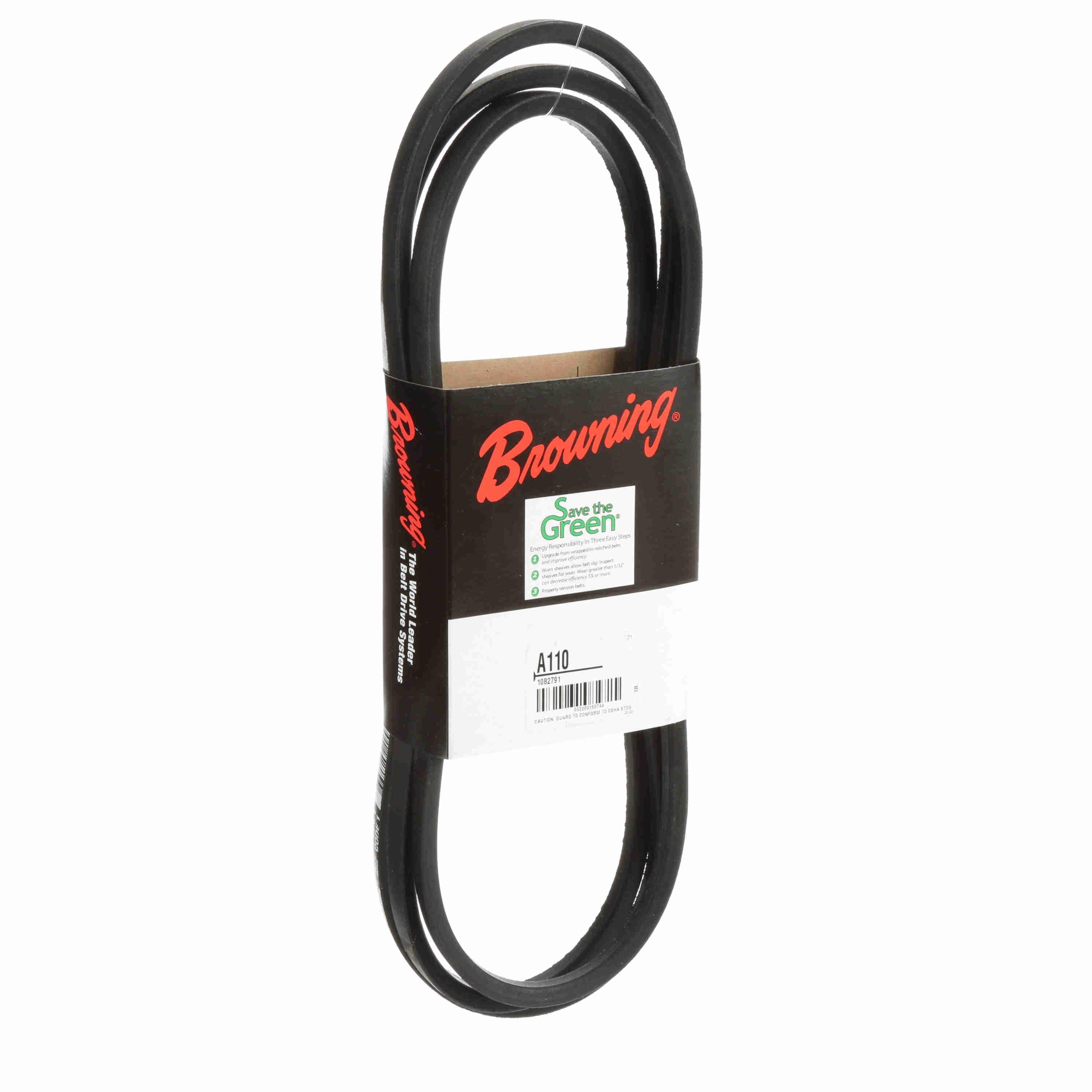

Browning 1082791 Non-cogged V-belt a Section Neoprene

Product Description

The BROWNING 1082791 is a classical, non-cogged V-belt designed for dependable power transmission in industrial and commercial drive applications. Built to A-section dimensions with a 0.5-inch top width and 5/16-inch thickness, this belt delivers consistent torque transfer across a wide range of sheave configurations. The neoprene construction with synthetic fiber reinforcement resists heat, oil, and wear, supporting continuous operation up to 140 degrees F. The single-wrap design provides greater flexibility when running over small-diameter sheaves, and reduced fabric overlap minimizes center distance variation and vibration throughout the service life of the drive.

This belt is suited for light-duty to medium-duty drives found in HVAC equipment, agricultural machinery, material handling conveyors, fans, pumps, and general industrial power transmission setups. The A-section profile is one of the most widely used classical belt configurations, making the 1082791 a common maintenance replacement in facilities with mixed equipment fleets. Licensed HVAC technicians, millwrights, and maintenance mechanics routinely spec this belt type for belt-drive blower and fan assemblies in commercial and residential air-handling units.

Key Features

• A-section profile with 0.5-inch top width and 5/16-inch thickness for standard sheave fitment
• 112.2-inch outside length suits longer center-distance drive configurations
• Neoprene construction resists heat, oil, and environmental degradation
• Synthetic fiber reinforcement maintains belt integrity under sustained load
• Single-wrap, non-cogged design reduces vibration and center distance variation
• Rated to 140 degrees F for use in warm operating environments

Compatibility

Designed as an OEM-style replacement for A-section classical V-belt drive applications requiring a 112.2-inch outside length.

Installation Notes

Belt replacement should be performed by a qualified technician with the drive fully de-energized and locked out per LOTO procedures. Loosen the motor mount or tensioner to relieve belt tension before removal — never pry or roll a belt onto a sheave under tension. After seating the new belt, adjust center distance to achieve proper deflection per the drive manufacturer's specification, and re-check tension after the first few hours of operation. Inspect sheave grooves for wear before installing a new belt, as worn grooves accelerate belt degradation.

Technical Specifications

• Section Size: A
• Type: Non-Cogged
• Top Width: 0.5 inches
• Outside Length: 112.2 inches
• Thickness: 0.3125 inches
• Number of Ribs: 1
• Temperature Range: 140 degrees F
• Material: Neoprene
• Reinforced Material: Synthetic Fiber

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1082791
