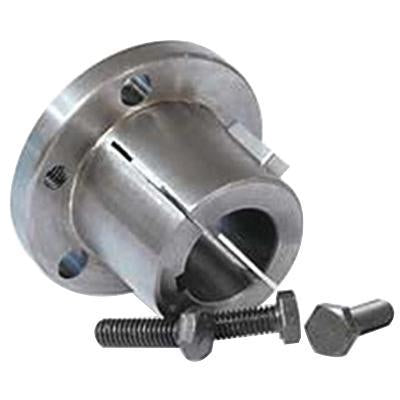

Browning 1078302 split taper bushing (7/8 in bore, 2-1/2 in flange) H 7/8

Product Description

The Browning 1078302 is a split taper bushing with a 7/8 in finished bore designed for shaft-to-hub mounting and power transmission applications. Constructed of sintered steel, it has a stepped barrel (small end 1.57 in, large end 1.625 in), a 2-1/2 in flange and a 1-1/4 in overall length. The barrel uses a 3/4 in/ft taper for a self-locking mechanical fit and includes a finished keyway.

• 7/8 in finished bore with keyway size 3/16 x 3/32 in; compatible with H-series inch bores
• Stepped barrel diameters: small end 1.57 in and large end/barrel 1.625 in; outside flange diameter 2-1/2 in; overall length 1-1/4 in
• Self-locking 3/4 in per foot barrel taper; includes two 1/4 x 3/4 in cap screws with recommended torque 95 in-lb

Product Highlights

Split taper H-series bushing, sintered steel construction, self-locking 3/4 in/ft taper with included cap screws

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1078302
• Country of Origin: United States

Technical Specifications

• Brand: Browning
• MPN: 1078302
• Catalog Number: H 7/8
• Bushing Type: Split taper bushing (H series)
• Bore Size: 7/8 in (0.875 in)
• Bore Type: Finished with keyway
• Keyway Size: 3/16 x 3/32 in
• Small End Diameter: 1.57 in
• Barrel (Large End) Diameter: 1.625 in (1-5/8 in)
• Outside / Flange Diameter: 2-1/2 in
• Flange Type: Solid
• Flange Thickness: 1/4 in
• Overall Length: 1-1/4 in
• Barrel Taper: 3/4 in per foot (self-locking)
• Cap Screw Size: 1/4 x 3/4 in
• Number of Cap Screws: 2
• Torque Rating: 95 in-lb (recommended for included cap screws)
• Material: Sintered steel
• Country of Origin: United States
