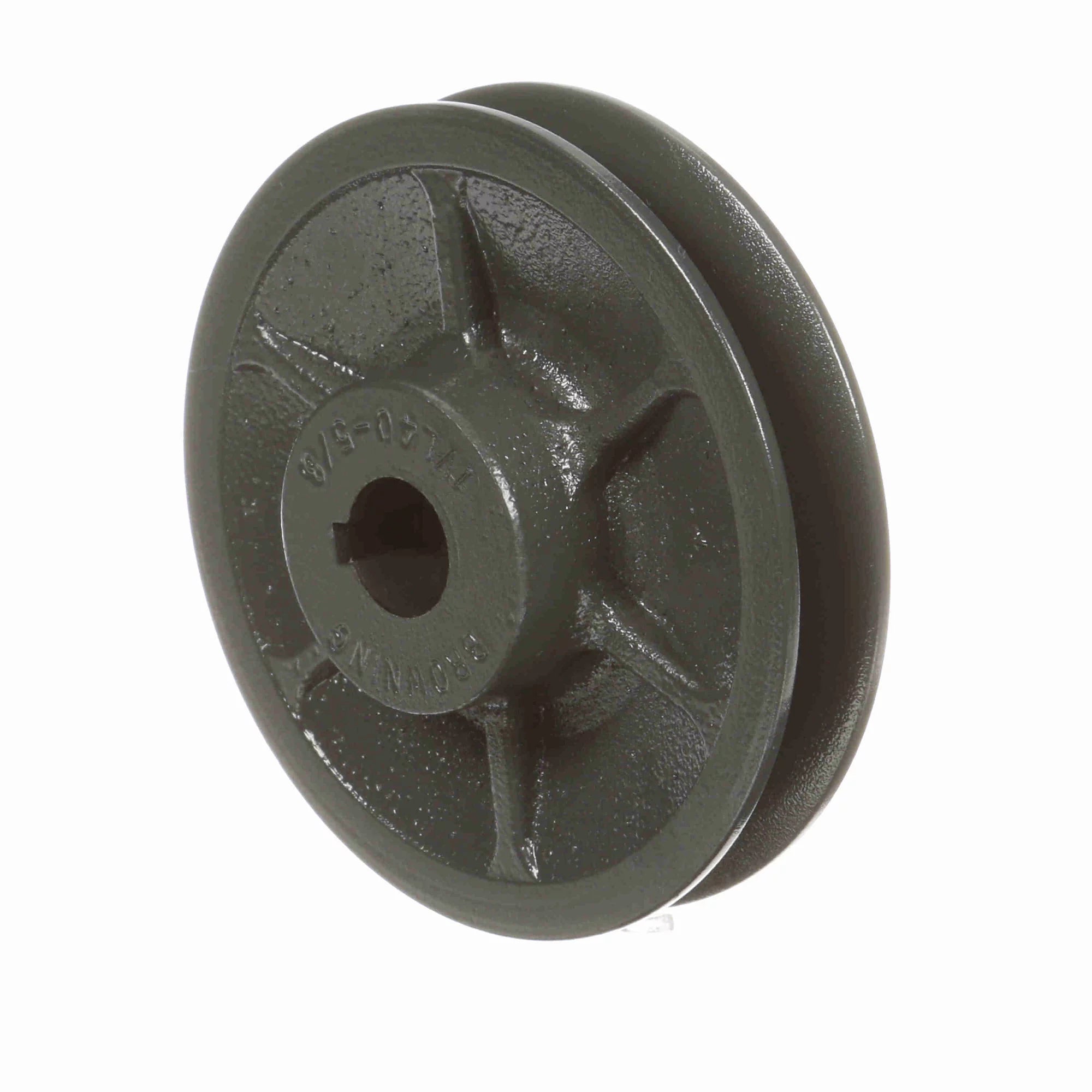

Browning 1046390 1VL40X5/8 Variable Pitch Sheave Cast Iron Sheave 1 Groove

Product Description

The Browning 1046390 1VL40X5/8 Variable Pitch Sheave is designed to offer efficient and reliable performance for light duty power transmission applications. Manufactured from high-quality cast iron, this sheave ensures durability and resistance against wear. It features a finished bore complete with a keyway and setscrews for secure mounting and easy adjustment on variable pitch.

• Supports 3L, 4L, 5L, A, or B section belts
• Accommodates a wide range of horsepower up to 5hp
• Designed for variable pitch for optimal flexibility in speed adjustment

Product Highlights

This sheave is ideal for varied mechanical power transmission setups, enhancing equipment efficiency and operation. Its robust construction and design specifications make it a versatile component in any machinery.

Product Information

Standard Information

• Material: Cast Iron
• Groove Designation: Variable Pitch

Technical Specifications

• Bore Diameter: 5/8 inches
• Overall Diameter: 4.0 inches
• Width: 19
• Height: 4.2 inches
• Length: 8.1 inches
• Weight: 1.46 pounds
• Country of Origin: Mexico
• Number of Grooves: 1
