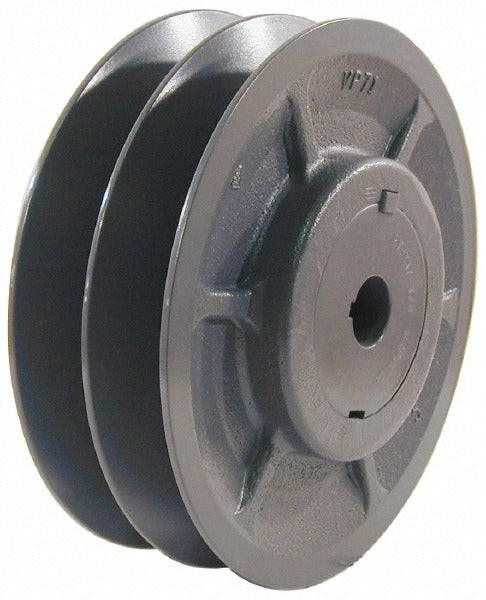

Browning 1045863 Variable Pitched Sheave 2 Groove 3.95in Od

Product Description

The BROWNING 1045863 is a 2-groove variable pitched sheave designed for adjustable belt drive systems in HVAC and mechanical equipment applications. With a 3/4 inch bore and 3.95 inch outside diameter, this sheave accepts 3L, 4L, A, 5L, and B section V-belts, giving technicians flexibility when setting or trimming blower and fan speeds without changing pulleys. Sheave thickness is 3 inches, and the face width adjusts from 1-3/8 to 2 inches as the pitch diameter is varied across its operating range. Total weight is 4.18 pounds. Variable pitch sheaves are a standard tool for balancing airflow in air handling equipment after installation.

This sheave is used in residential and light commercial HVAC systems, particularly on supply and return air blower assemblies, fan coil units, and rooftop units where motor or blower speed must be field-tuned. The wide belt section compatibility — covering 3L through B section belts — makes it suitable across a broad range of drive configurations. Licensed HVAC technicians and mechanical contractors install this component during commissioning, system balancing, or belt drive replacement work.

Key Features

• 2-groove design accepts 3L, 4L, A, 5L, and B section V-belts for broad compatibility
• Variable pitch face width from 1-3/8 to 2 inches allows field adjustment of effective pitch diameter
• 3/4 inch bore fits common blower and motor shaft sizes in HVAC equipment
• 3.95 inch outside diameter with 3 inch sheave thickness for stable belt tracking
• Pitch diameter range supports speed tuning without motor or pulley replacement

Compatibility

Designed as an OEM-style replacement or upgrade variable pitched sheave for residential and light commercial HVAC belt drive systems using 3L, 4L, A, 5L, or B section V-belts with a 3/4 inch bore requirement.

Installation Notes

Installation and adjustment of variable pitch sheaves should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out all power to the unit before removing or installing any belt drive components. Use a sheave alignment tool to verify parallel alignment between the drive and driven sheaves after setting pitch diameter. Confirm belt tension and pitch diameter adjustment are within the belt manufacturer specifications before returning the system to service.
