Browning 1045491 Variable Pitched Sheave 1 Groove 7/8 Inch Bore

Product Description

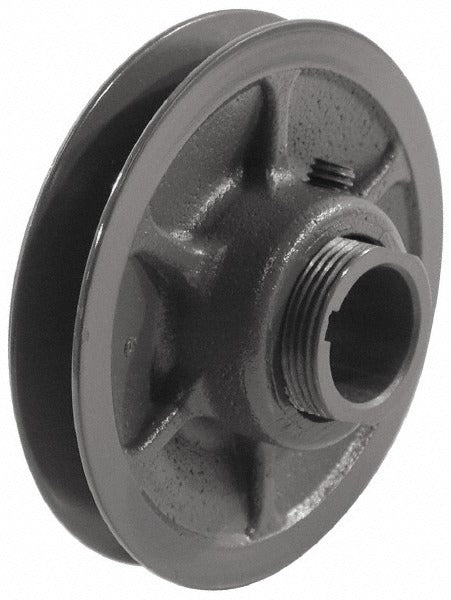

The BROWNING 1045491 is a single-groove variable pitched sheave designed for V-belt drive systems in HVAC, industrial fan, and blower applications. It features a 7/8 inch bore, a 5.35 inch outside diameter, and accepts 3L, 4L, A, 5L, and B belt sections, making it a versatile component for adjustable-speed drive setups. Sheave thickness measures 1-7/8 inches with a face width range of 3/4 to 1-1/8 inches. Licensed HVAC technicians and mechanical contractors use this type of sheave to fine-tune blower and fan speeds without swapping out complete drive assemblies. The variable pitch design allows pitch diameter adjustment within defined ranges for each belt section.

This sheave is suited for residential and light commercial HVAC systems, industrial blowers, and exhaust fans where belt-drive speed adjustment is required. The variable pitch design allows the installer to dial in the correct blower RPM during commissioning or service. Typical installations include air handlers, roof exhausters, and centrifugal fan assemblies that use standard V-belt configurations with 3L, 4L, A, 5L, or B belt sections. It is a common replacement or upgrade component when rebalancing airflow in existing duct systems.

Key Features

• Single-groove variable pitched design allows on-site pitch diameter adjustment for belt speed tuning
• Accepts 3L, 4L, A, 5L, and B belt sections for broad belt compatibility
• 7/8 inch bore fits standard blower and fan motor shafts
• 5.35 inch outside diameter with 1-7/8 inch sheave thickness
• Face width adjustable from 3/4 to 1-1/8 inches depending on pitch setting
• Pitch diameter ranges: 3.9 to 4.7 inches for 3L belts, 4.0 to 5.0 inches for 4L/A belts, 4.3 to 5.3 inches for 5L/B belts

Compatibility

Compatible with 3L, 4L, A, 5L, and B section V-belts. Designed as an OEM-style variable pitch sheave replacement for belt-drive blower and fan assemblies using a 7/8 inch bore shaft.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified mechanical contractors. Disconnect and lock out all power to the drive system before removing or installing any sheave or belt components. Use a properly sized bore gauge and shaft key to confirm fit before final assembly. Verify belt tension and pitch diameter setting against system design specifications after installation to prevent premature belt or bearing wear.
