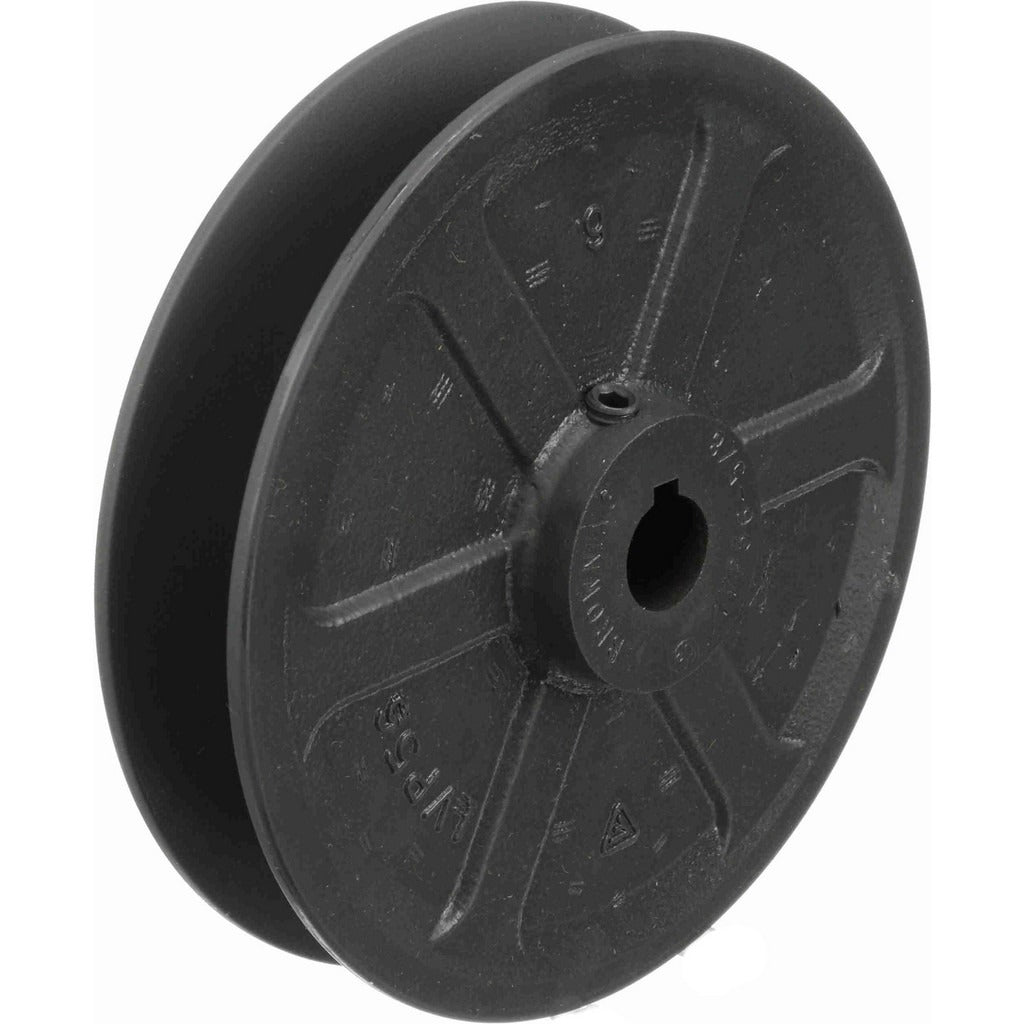

Browning 1045475 Variable Pitched Sheave 1 Groove Cast Iron

Product Description

The BROWNING 1045475 is a single-groove variable pitched sheave designed for adjustable V-belt drive applications in HVAC, industrial fan, and blower systems. Cast from iron, it accepts 3L, 4L, 5L, A, and B section belts, making it a versatile speed-adjustment component. The bore measures 5/8 inches inside diameter, with a 5.35 inches outside diameter and a sheave thickness of 1-7/8 inches. Face width ranges from 11/16 to 1-1/16 inches depending on pitch position. HVAC technicians and mechanical contractors use this sheave to fine-tune blower RPM without swapping out full drive assemblies. The part weighs 4 pounds.

This variable pitch sheave fits belt drive systems where fan or blower speed adjustment is required on the job. Typical installations include air handling units, furnace blower assemblies, exhaust fans, and commercial ventilation equipment. The single-groove design suits direct motor-to-blower drive configurations. Variable pitch sheaves are commonly installed on the motor shaft side of the drive to allow pitch diameter adjustment, which changes output shaft speed and airflow without requiring a different belt length.

Key Features

• Variable pitch design allows field adjustment of blower or fan speed without belt replacement
• Accepts 3L, 4L, 5L, A, and B section V-belts for broad belt compatibility
• Cast iron construction for durability in continuous-duty drive applications
• 5/8 inches bore fits standard fractional-horsepower motor shafts
• Single-groove configuration for direct, single-belt drive setups
• Sheave thickness of 1-7/8 inches with face width range of 11/16 to 1-1/16 inches

Compatibility

Designed as an OEM-style replacement or upgrade variable pitched sheave for single-belt V-belt drives accepting 3L, 4L, 5L, A, or B section belts with a 5/8 inches bore shaft.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out all power to the drive system before removing or installing sheaves. Verify belt tension and alignment after adjusting pitch position, as improper alignment accelerates belt and bearing wear. Refer to applicable ANSI/AMCA and drive manufacturer guidelines for sheave torque and belt tension specifications.
