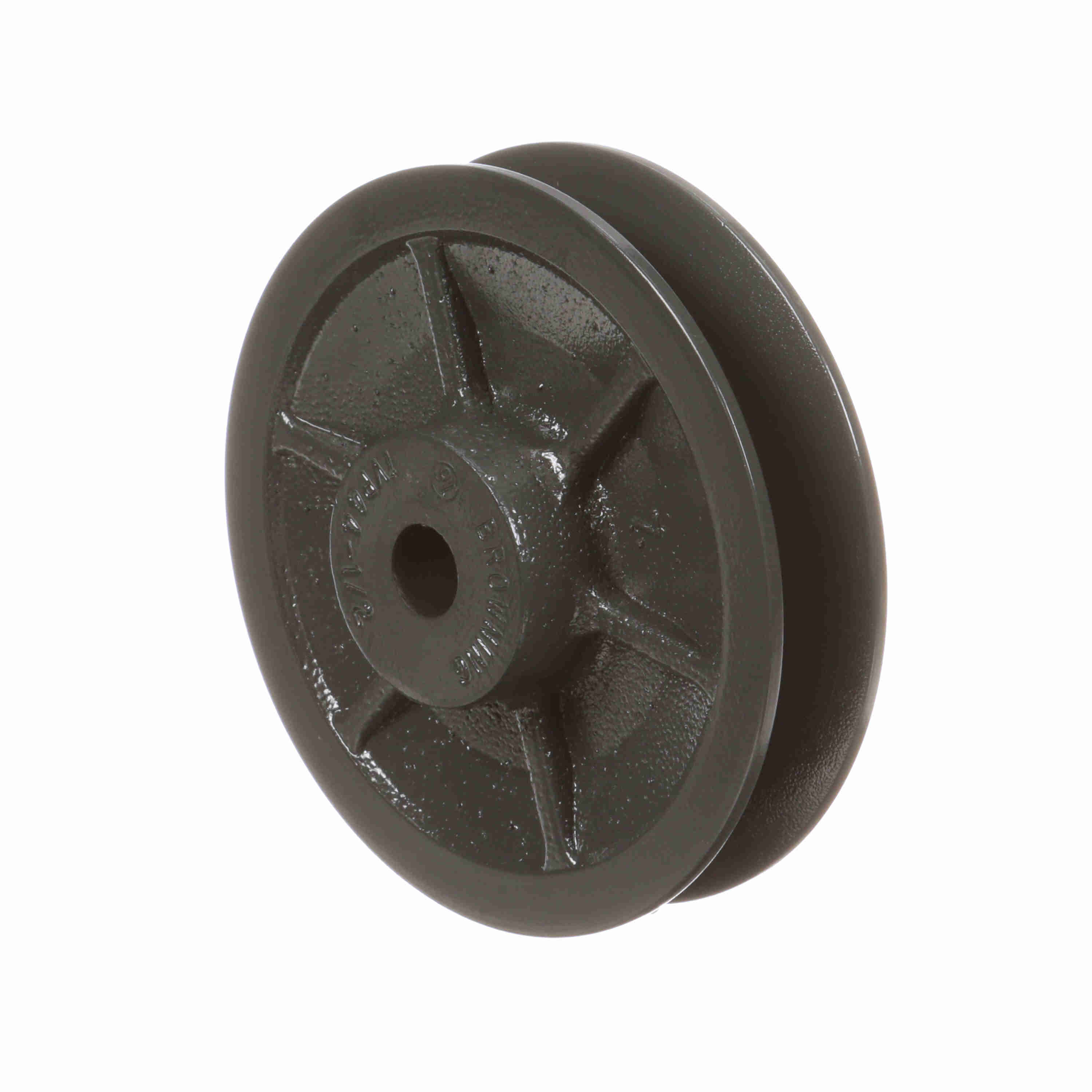

Browning 1045343 1VP44X1/2 variable pitch sheave 4.15 in dia 1/2 in bore (1 each)

Product Description

The Browning 1045343 is a variable pitch V-belt sheave with a finished 1/2 in bore and cast iron construction. It provides a single groove and a 4.15 in pitch diameter with an adjustable face width of 21/32 in to 1-1/32 in for fine tuning belt engagement. The sheave accepts 3L, 4L/A and 5L/B V-belts and uses a Z35 bushing for mounting in power-transmission applications.

• Variable pitch design with adjustable face width for fine speed and belt engagement adjustments
• Cast iron, finished bore single-groove sheave with 4.15 in pitch diameter and 1/2 in bore
• Compatible with 3L, 4L/A and 5L/B V-belts; includes Z35 bushing and is statically balanced

Product Highlights

Single-groove vari-pitch sheave; 4.15 in outside pitch diameter; 1/2 in finished bore; compatible with 3L, 4L/A, 5L/B V-belts

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1045343
• Country of Origin: United States

Technical Specifications

• Brand: Browning
• Manufacturer: Regal
• MPN: 1045343
• Model / Series: 1VP44X1/2 (VP Series)
• Product Type: V-belt sheave
• Material: Cast iron
• Number of Grooves: 1
• Bore Type: Finished bore
• Bore Diameter: 1/2 in
• Outside Diameter: 4.15 in
• Face Width (Adjustable): 21/32 in to 1-1/32 in
• Pitch Diameter 3L: 2.7 in to 3.5 in
• Pitch Diameter 4L/A: 3 in to 4 in
• Pitch Diameter 5L/B: 3.2 in to 4.2 in
• Bushing: Z35
• Series: VP Series
• Type: Type 1
• Suitable For Use With: 3L, 4L/A, 5L/B V-belts (Gripbelt compatible)
• Overall Length: 1 7/8 in
• Balanced: Statically balanced for low vibration
• Country of Origin: United States
• Weight (manufacturer value): 0.8550 kg
