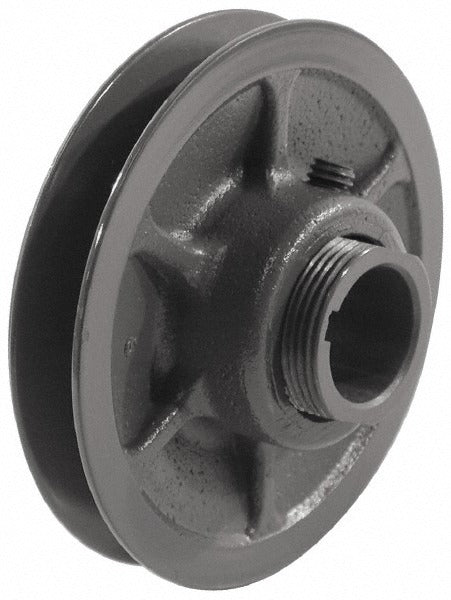

Browning 1045327 Variable Pitch Sheave 1 Groove

Product Description

The BROWNING 1045327 is a single-groove variable pitch sheave designed for V-belt drive systems in HVAC, industrial, and mechanical equipment applications. With a 0.75-inch inside bore diameter and a 3.75-inch outside diameter, this sheave allows technicians to fine-tune drive speed ratios without swapping out fixed sheaves. The face width adjusts from 21/32 inches to 1-1/32 inches by opening or closing the sheave flanges, enabling precise RPM calibration on blower and fan assemblies. The unit weighs 1.38 pounds. Licensed HVAC technicians and mechanical contractors are the primary installers of this type of component.

Variable pitch sheaves of this type are used in belt-driven air handling units, rooftop units, and fan coil systems where supply airflow requires balancing after installation. The 1045327 accommodates 3L, 4L, A, 5L, and B cross-section V-belts, covering a wide range of light- to medium-duty drive configurations. This makes it a practical fit for residential and light commercial HVAC blower assemblies where a single adjustable sheave replaces multiple fixed-pitch options during commissioning or air balancing work.

Key Features

• Single-groove variable pitch design allows field adjustment of drive speed ratio
• Compatible with 3L, 4L, A, 5L, and B section V-belts
• 0.75-inch bore diameter fits standard blower and fan shaft sizes
• 3.75-inch outside diameter suits compact drive configurations
• Face width adjustable from 21/32 inches to 1-1/32 inches for pitch tuning
• 1-7/8-inch sheave thickness provides stable belt tracking under load

Compatibility

Designed as an OEM-style replacement or upgrade sheave for single-groove V-belt drive systems using 3L, 4L, A, 5L, or B section belts with pitch diameters ranging from 2.3 inches to 3.7 inches depending on belt type.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out all power to the unit before removing or installing any drive components. Use a properly sized bore gauge and shaft key to confirm fit before tightening the sheave to the shaft. After adjustment, verify belt tension and sheave alignment with a straightedge or laser alignment tool before returning the system to service.
