Browning 1045301 Variable Pitched Sheave 1 Groove

Product Description

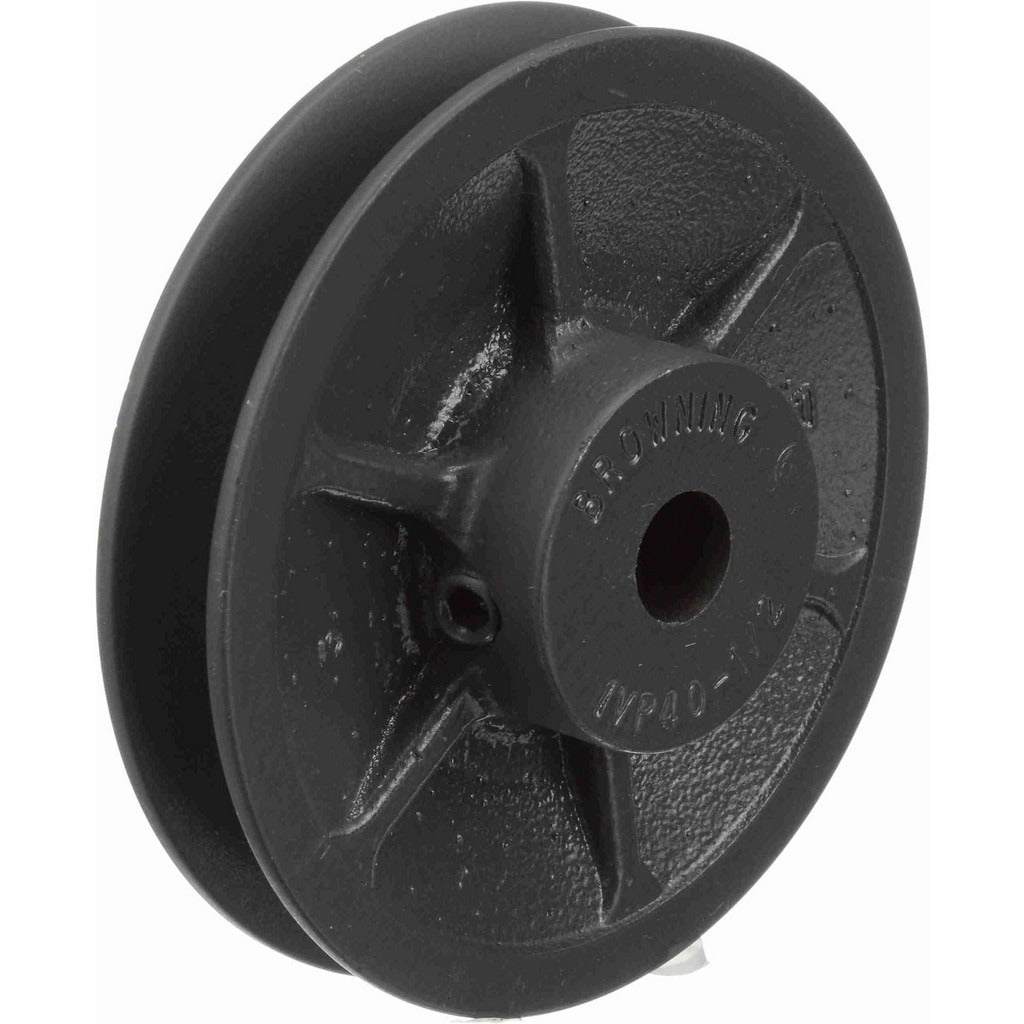

The BROWNING 1045301 is a single-groove variable pitched sheave designed for use in belt-drive systems across HVAC, industrial, and mechanical equipment applications. Cast from iron, it accepts a 0.5-inch bore and measures 3.75 inches in outside diameter with a sheave thickness of 1.875 inches. The variable pitch design allows the effective pitch diameter to be adjusted by opening or closing the sheave faces, making it a reliable solution for fine-tuning motor speed and belt tension without swapping out components. This sheave weighs 1.45 pounds and is installed by HVAC technicians and mechanical contractors working on fan and blower assemblies.

This sheave is suited for residential and light commercial HVAC systems, exhaust fans, blowers, and general belt-drive equipment where speed adjustment is required. It accommodates 3L, 4L, 5L, A, and B belt sections, giving installers flexibility across a wide range of drive configurations. The face width adjusts between approximately 0.656 inches and 1.031 inches depending on the open-turn setting selected for the target belt section. It is a common replacement or upgrade component on air-handling units and belt-driven fan assemblies.

Key Features

• Variable pitch design allows on-site pitch diameter adjustment without replacing the sheave
• Accepts 3L, 4L, 5L, A, and B belt sections for broad drive compatibility
• Cast iron construction for durability in continuous belt-drive service
• 0.5-inch bore fits standard motor and jackshaft configurations
• Face width range of approximately 0.656 to 1.031 inches accommodates variable groove settings
• Single-groove design suited for single-belt drive arrangements

Compatibility

Designed as an OEM-style replacement or new-installation variable pitched sheave for single-belt drive systems using 3L, 4L, 5L, A, or B section belts.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out all power to the unit before removing or installing any belt-drive components. Ensure the sheave is properly aligned with the mating pulley before tensioning the belt, and verify the selected open-turn setting matches the pitch diameter required for the target belt section. Consult applicable mechanical codes and the equipment manufacturer's service documentation for drive alignment and belt tension guidelines.
