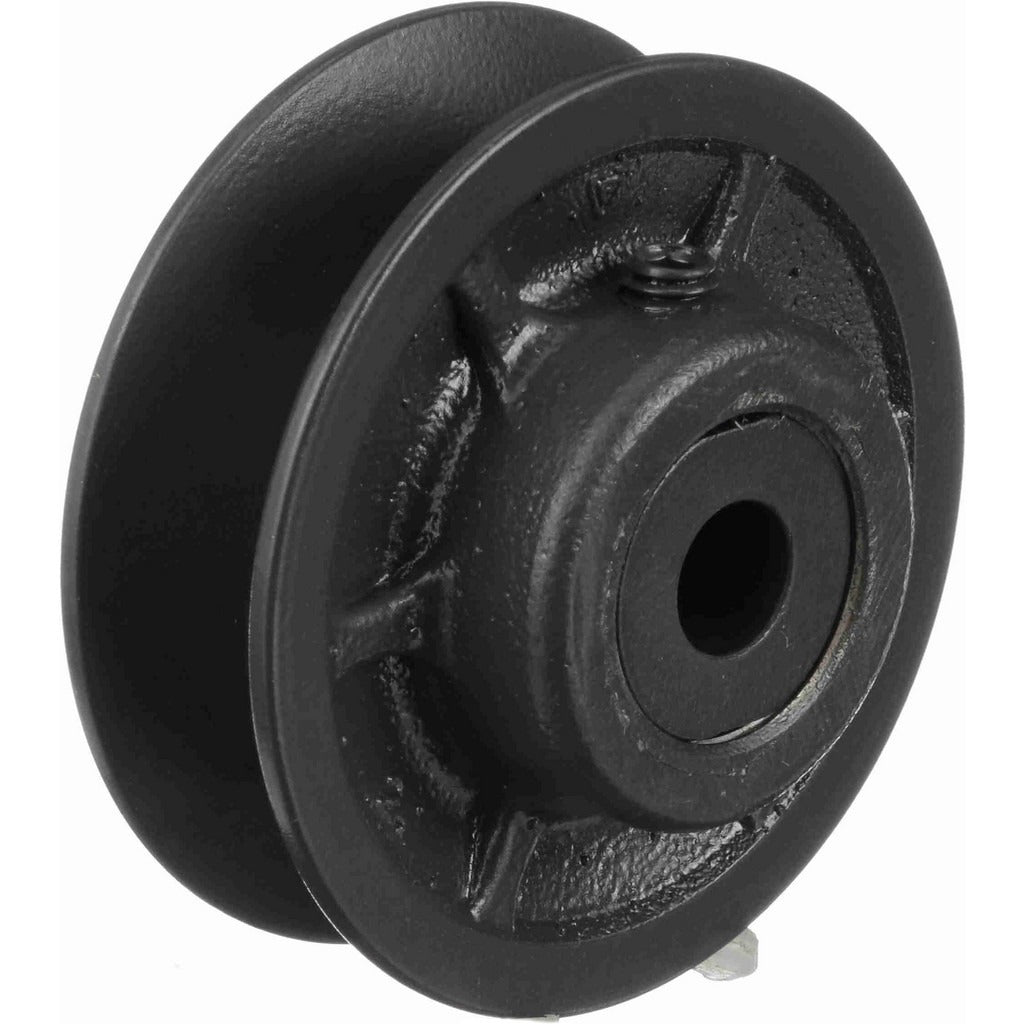

Browning 1045269 Variable Pitched Sheave 1 Groove 3.15in Od

Product Description

The BROWNING 1045269 is a single-groove variable pitched sheave designed for adjustable-speed belt drive applications in HVAC, industrial, and commercial mechanical systems. Cast from iron, it features a 0.5-inch bore and a 3.15-inch outside diameter. The variable pitch design allows technicians to adjust the effective pitch diameter within a set range, enabling fine-tuned speed and airflow control without swapping components. Compatible belt sections include 3L, 4L, 5L, A, and B. This sheave weighs 1.2 pounds and is a standard OEM-style component installed by HVAC mechanics and millwrights during fan and blower drive assemblies.

This sheave is used in residential and commercial air handling units, blower assemblies, and belt-driven fan systems where variable speed adjustment is required. The single-groove configuration suits single-belt drive setups. By turning the sheave faces to open or close, the installer changes the pitch diameter and adjusts the driven shaft speed. This is a common adjustment method during HVAC commissioning and air balancing work. Sheave thickness is 1.875 inches, and the face width ranges from 0.656 to 1 inch depending on belt position.

Key Features

• Variable pitch design allows on-site speed adjustment without replacing the sheave
• Single groove accepts 3L, 4L, 5L, A, and B belt sections
• Cast iron construction for durability in continuous-duty drive applications
• 0.5-inch bore diameter with 3.15-inch outside diameter
• Pitch diameter range adjustable from 1.7 to 3.2 inches depending on belt type
• Sheave thickness of 1.875 inches with face width from 0.656 to 1 inch

Compatibility

Compatible with 3L, 4L, 5L, A, and B section V-belts. Designed as an OEM-style replacement or upgrade sheave for single-belt variable-speed drive assemblies in belt-driven blower and fan applications.

Installation Notes

Installation should be performed by a qualified HVAC technician or millwright. Disconnect and lock out all power to the unit before removing or installing any drive components. Ensure the sheave is properly aligned with the mating sheave and that belt tension is set per the belt manufacturer's specification before returning the system to service. Consult applicable mechanical codes for drive guarding requirements.
